Installation [10/2013 - ]

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL HEADLIGHT CLEANER SWITCH ASSEMBLY
    1. Engage the 2 claws to install the headlight cleaner switch assembly as shown in the illustration.

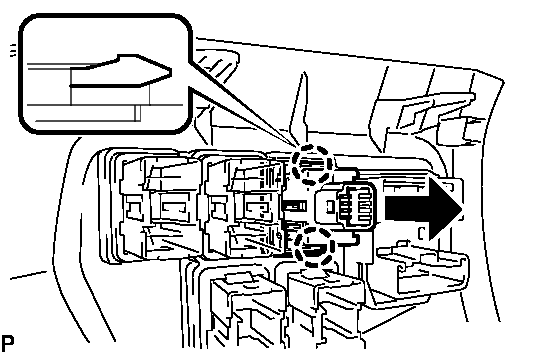

      Fig 1: Installing Headlight Cleaner Switch Assembly
      GTY324625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY  . Refer to INSTALLATION [10/2013 - ] - Step 22
  3. INSTALL COWL SIDE TRIM BOARD LH  . Refer to INSTALLATION [10/2013 - ] - Step 41
  4. INSTALL FRONT DOOR SCUFF PLATE LH  . Refer to INSTALLATION [10/2013 - ] - Step 42
