DTC B27A2: Open in Front Passenger Side Electrical Antenna Circuit [10/2013 - ]: Wiring Diagram

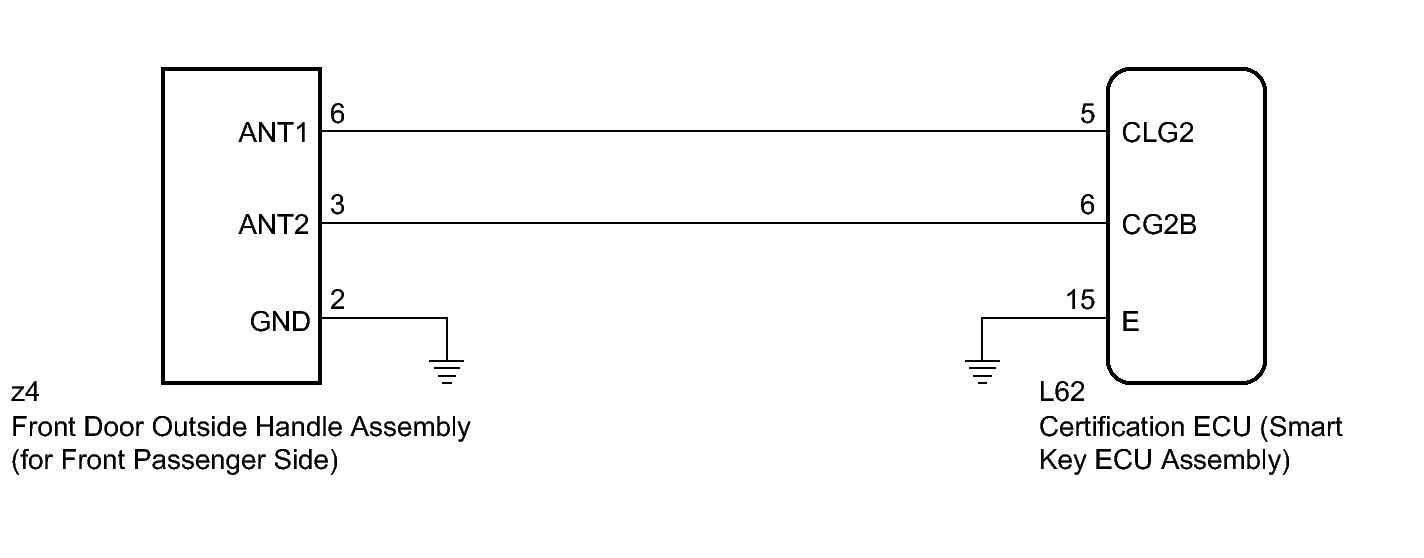

Fig 1: View Of Front Passenger Side Electrical Antenna Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
