Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [10/2013 - ]: Wiring Diagram

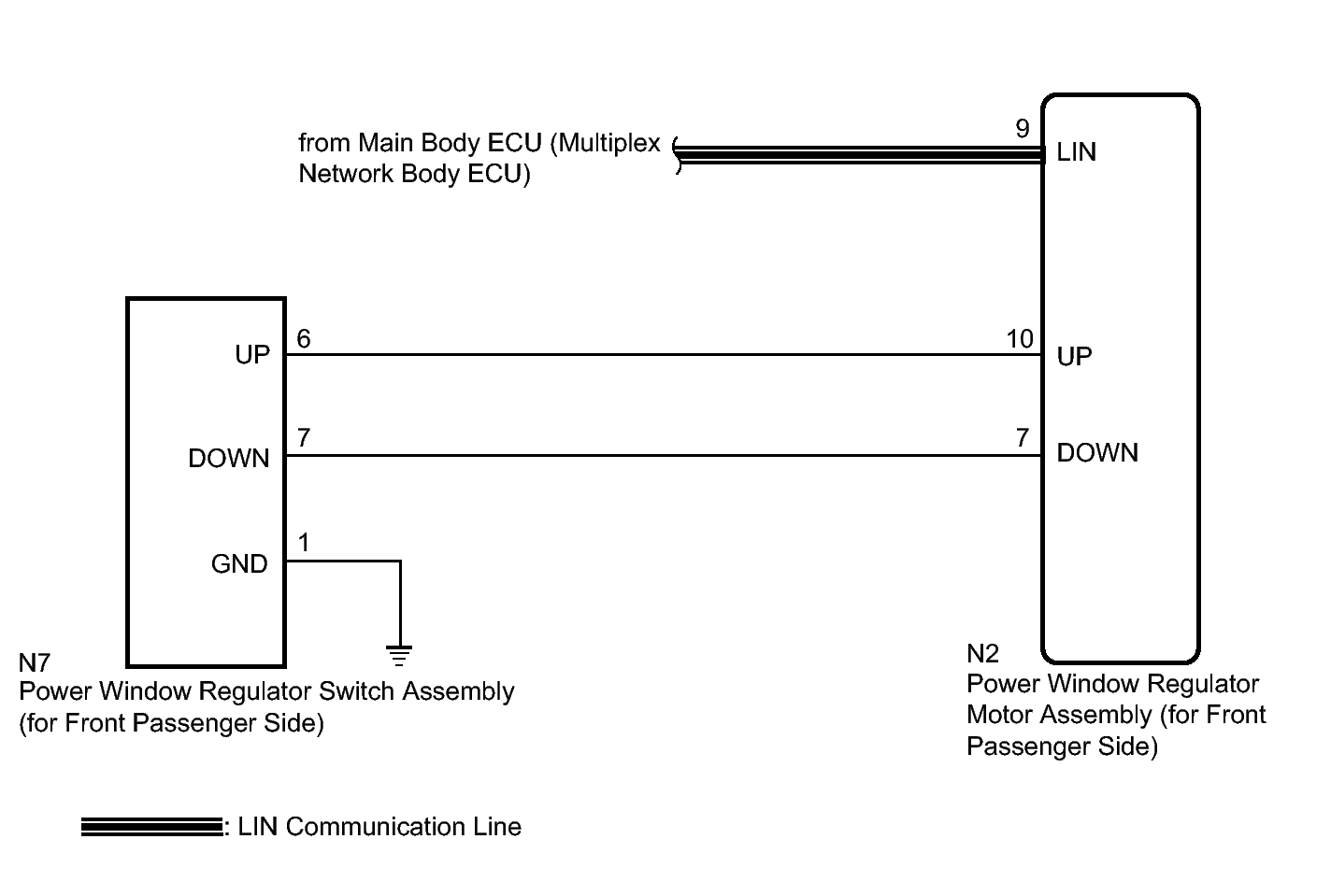

Fig 1: Identifying Power Window Regulator Motor Assembly (For Front Passenger Side) Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
