Vehicle Identification And Serial Numbers [10/2013 - ]

VEHICLE IDENTIFICATION NUMBER

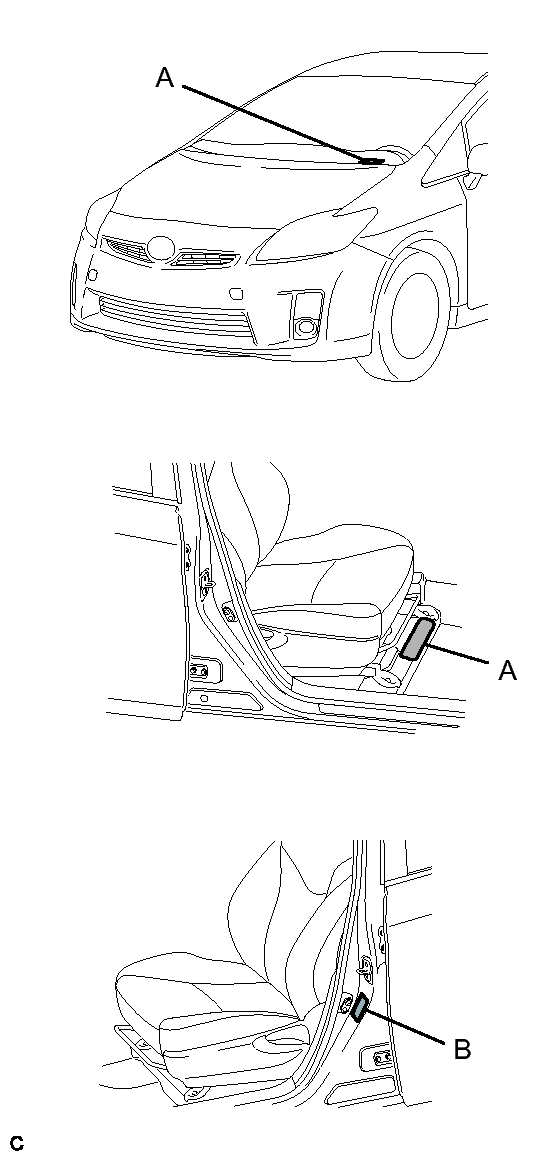

1. The vehicle identification number is stamped on the vehicle body and on the certification label as shown in the illustration.
  A

  Vehicle Identification Number

  B

  Certification Label

  Fig 1: Locating Vehicle Identification Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.
  A

  2ZR-FXE Engine Serial Number

  Fig 2: Locating Engine Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. The transaxle code is stamped on the case as shown in the illustration.

  Fig 3: Locating Transaxle Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  A

  P410 Transaxle Code
