Components [10/2013 - ]: Illustration

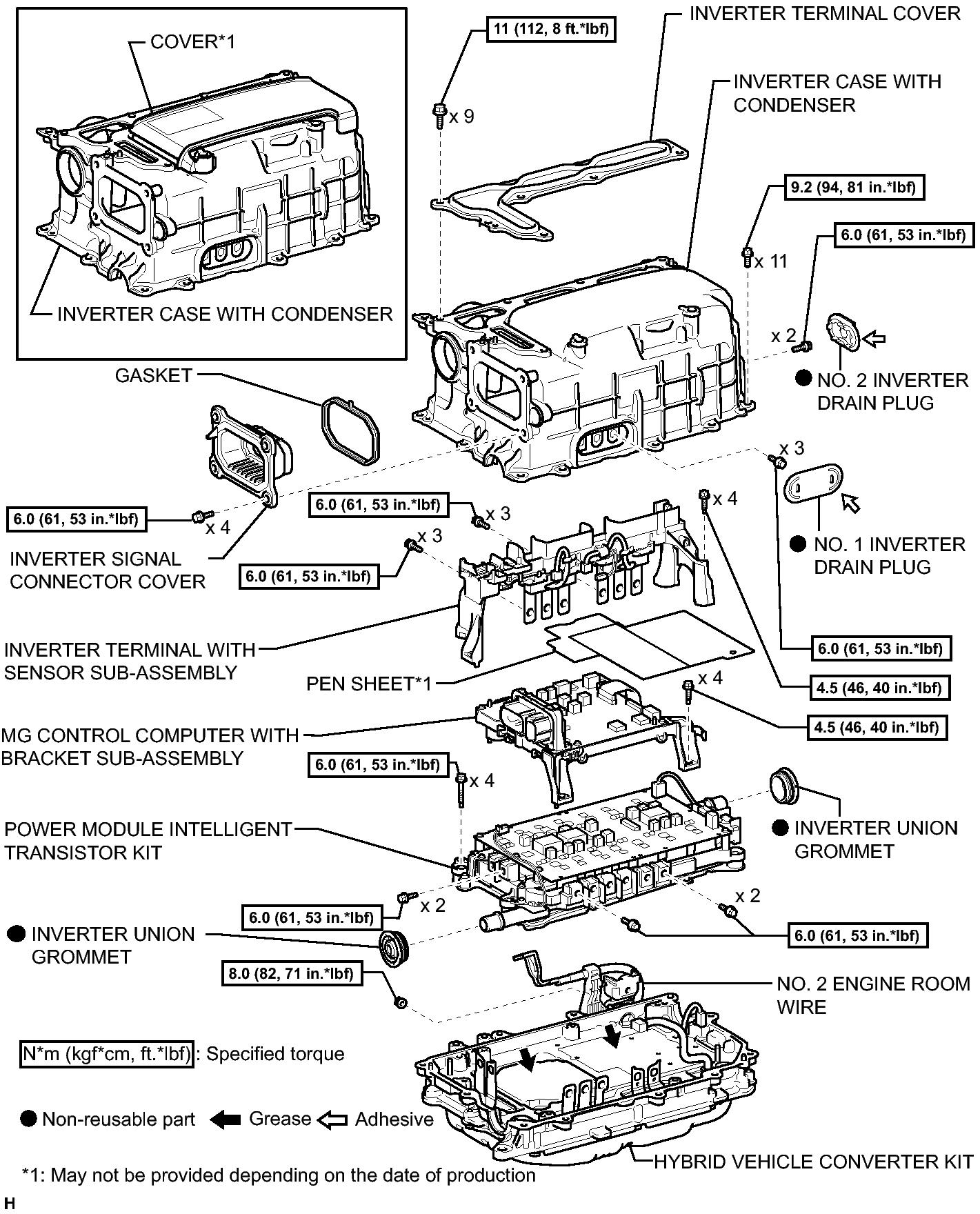

Fig 1: The Power Module Intelligent Transistor Replacement Component Parts With Torque Specifications
GTY448976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
