Pattern Select Switch EV Mode Circuit [10/2013 - ]: Wiring Diagram

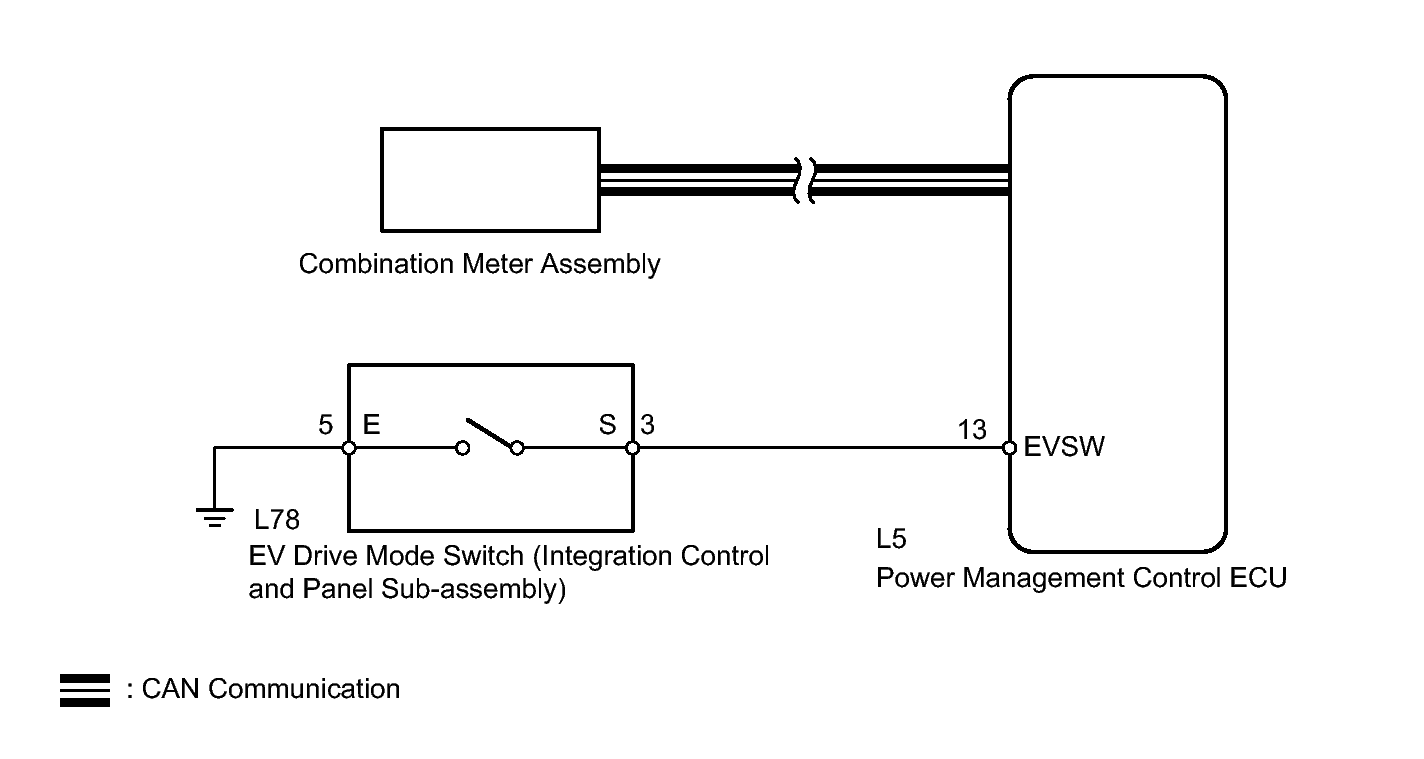

Fig 1: Pattern Select Switch EV Mode Circuit Wiring Diagram
GTY327303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
