DTC P0A1A-200: Generator Control Module; DTC P0A1A-792: Generator Control Module; DTC P0A1A-793: Generator Control Module [10/2013 - ]: Wiring Diagram

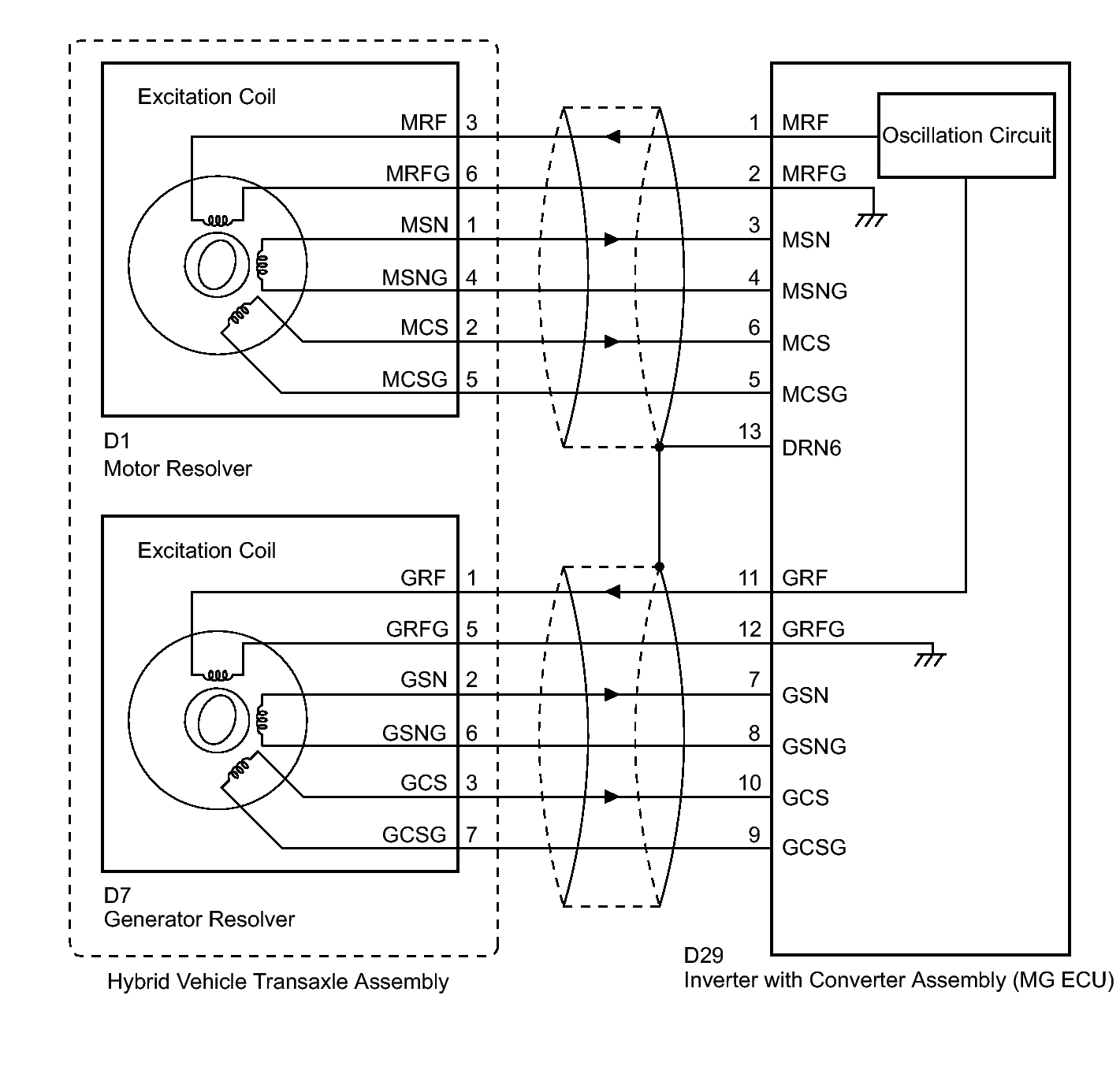

Fig 1: Hybrid Vehicle Transaxle Assembly - Wiring Diagram
GTY450002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
