DTC P2118: Throttle Actuator Control Motor Current Range / Performance [10/2013 - ]: Wiring Diagram

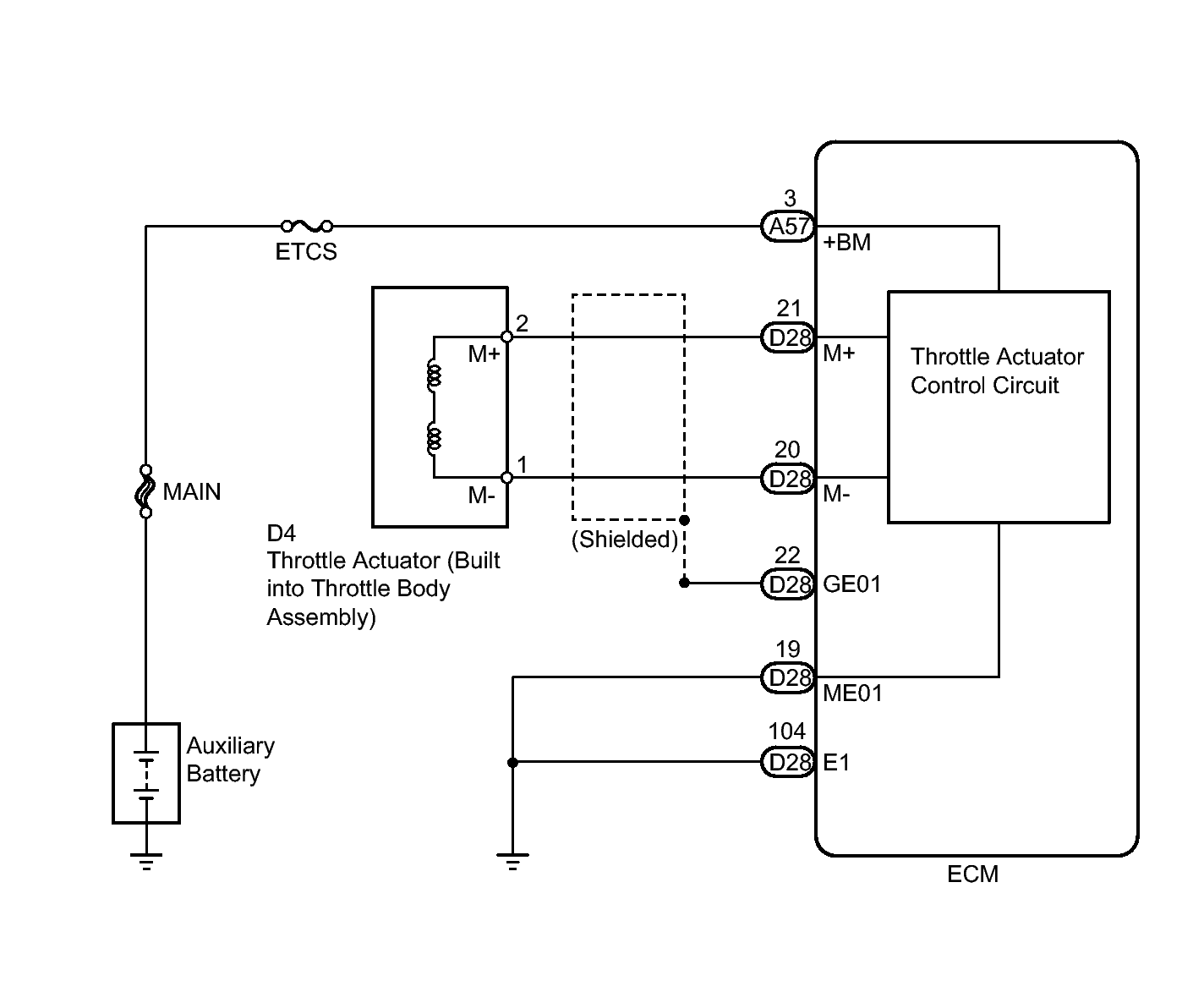

Fig 1: Throttle Control System Wiring Diagram
GTY333219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
