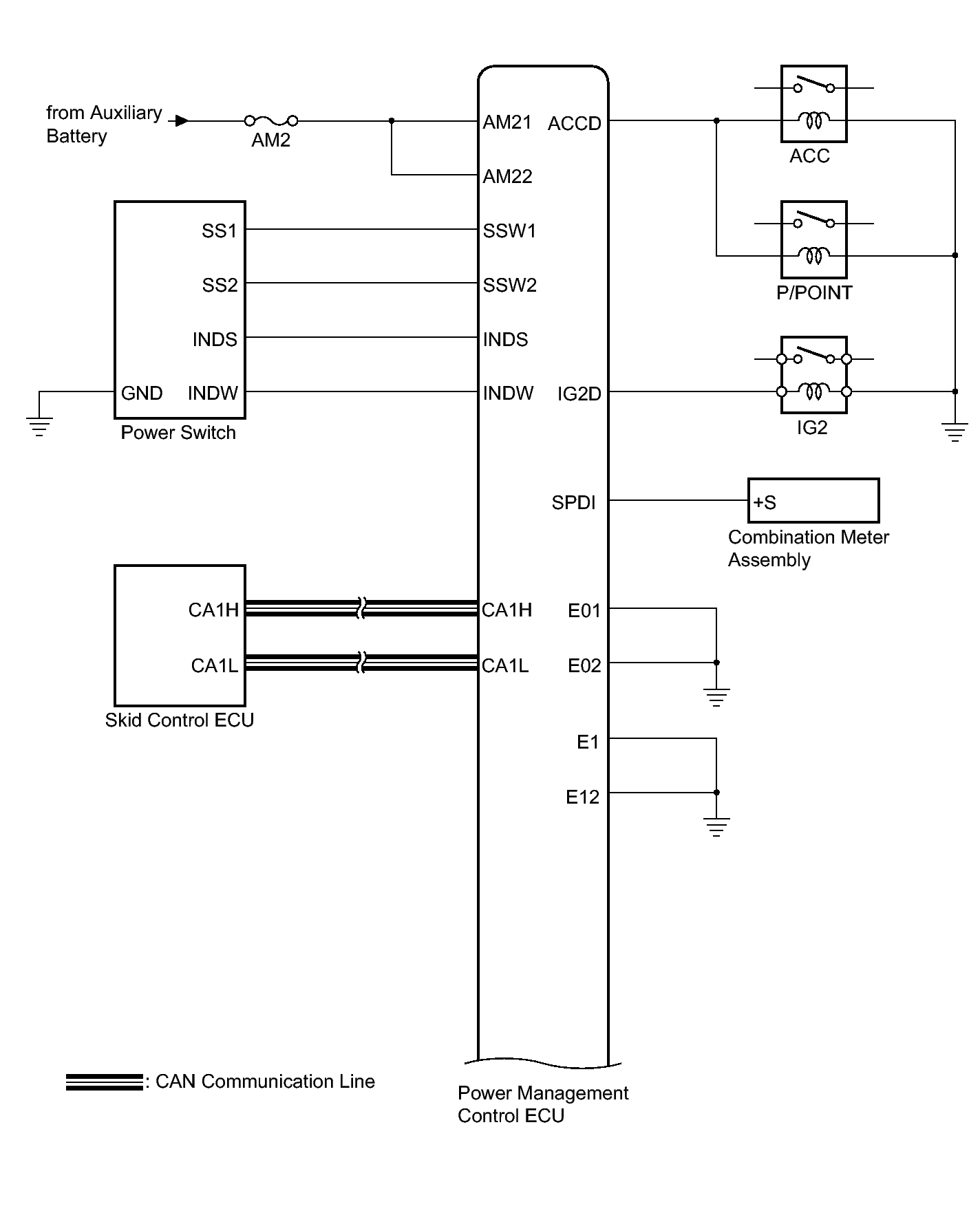

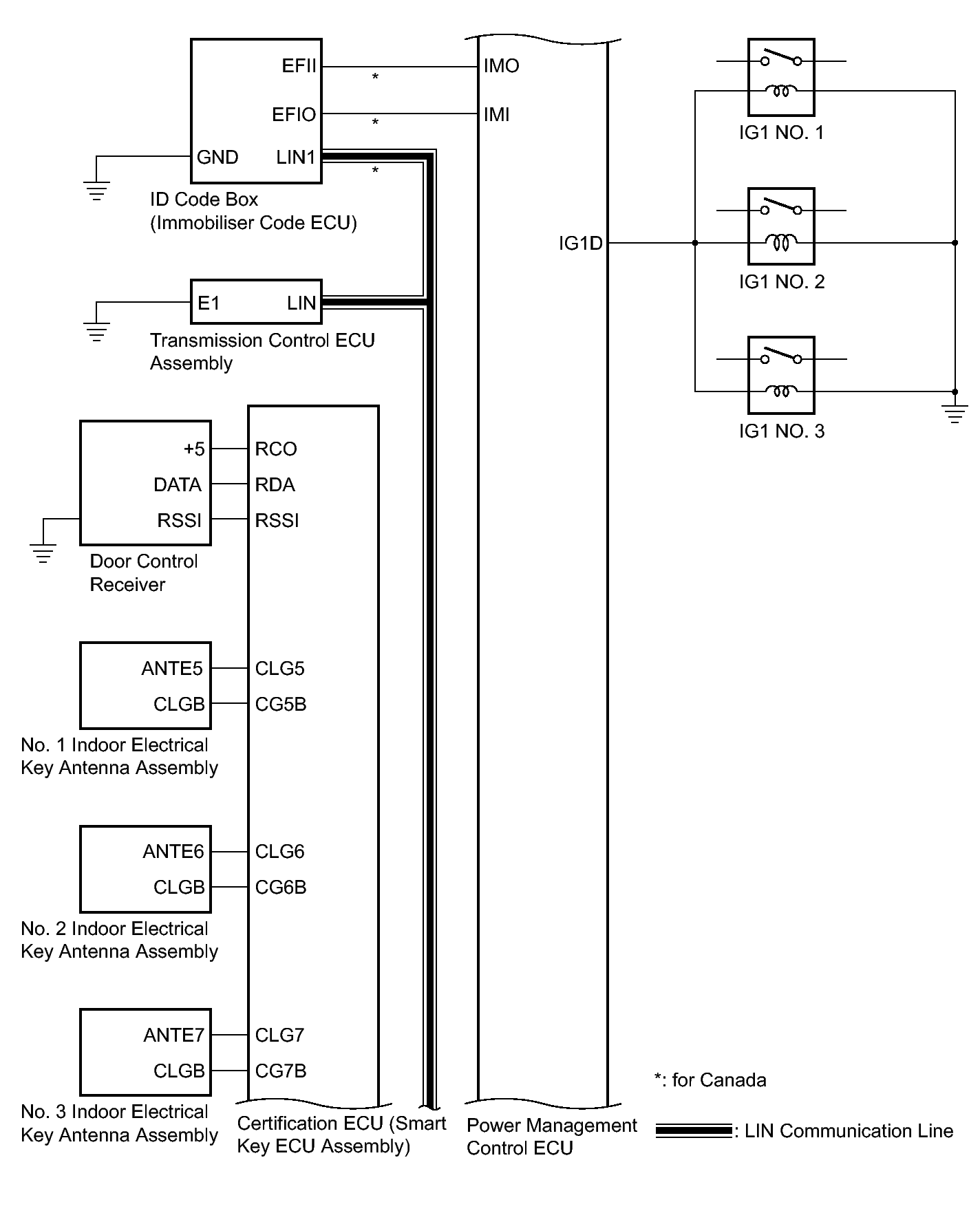

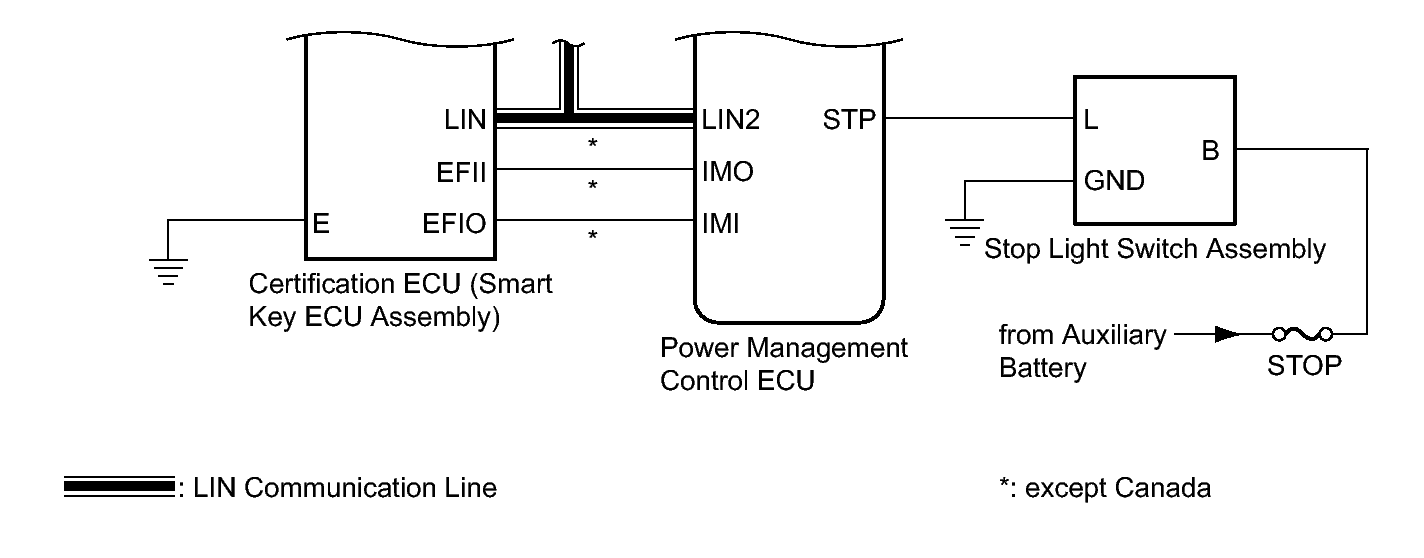

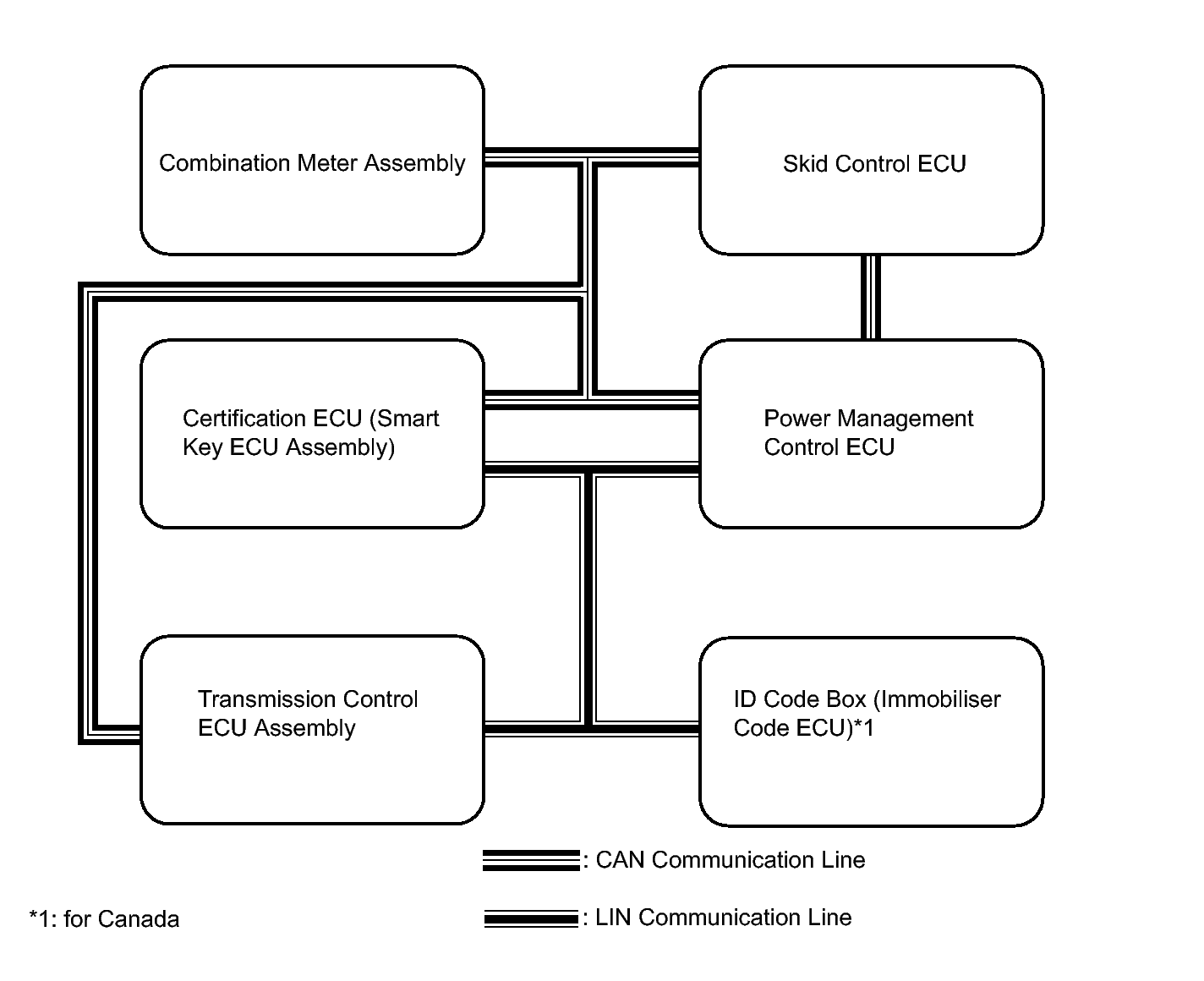

System Diagram [10/2013 - ]
WARNING: This page is about a different variant/trim than selected.
COMMUNICATION TABLE
| Transmitting ECU (Transmitter) |
Receiving ECU (Receiver) |
Signal | Communication Method |
|---|---|---|---|
| Combination meter assembly | Power management control ECU | Vehicle speed signal | Local communication |
| Skid control ECU | Power management control ECU | Stop light switch signal | CAN/Local communication |
| Main body ECU | Power management control ECU | Driver seat courtesy switch signal | CAN |
| Main body ECU | Power management control ECU | Parking brake switch signal | CAN |
| Skid control ECU | Power management control ECU | Vehicle speed signal | CAN |
| Transmission control ECU | Power management control ECU | Transmission control ECU trouble condition signal | CAN/Local communication |
| Transmission control ECU | Power management control ECU | P position state signal | CAN/Local communication |
| Power management control ECU | Combination meter assembly | Message request signal for push start | CAN |
| Power management control ECU | Certification ECU (smart key ECU assembly) | P position state signal | LIN |
| Power management control ECU | Certification ECU (smart key ECU assembly) | Shift position P signal | LIN |
| Power management control ECU | Certification ECU (smart key ECU assembly) | ID code certification result request signal | LIN |
| Power management control ECU | Certification ECU (smart key ECU assembly) | Power supply ON operation condition signal | LIN |
| Power management control ECU | Certification ECU (smart key ECU assembly) | Hybrid control system start operation condition signal*2 | LIN |
| Power management control ECU | Certification ECU (smart key ECU assembly) | ACC relay drive condition signal | LIN |
| Power management control ECU | Certification ECU (smart key ECU assembly) | IG relay drive condition signal | LIN |
| Transmission control ECU | Certification ECU (smart key ECU assembly) | Lock determination signal | LIN |
| Transmission control ECU | Certification ECU (smart key ECU assembly) | Unlock determination signal | LIN |
| Transmission control ECU | Certification ECU (smart key ECU assembly) | L code certification condition signal*2 | LIN |
| Transmission control ECU | Certification ECU (smart key ECU assembly) | L code registration condition signal*2 | LIN |
| Certification ECU (smart key ECU assembly) | ID code box (immobilizer code ECU) | Hybrid control system start operation condition signal*1 | LIN |
| Certification ECU (smart key ECU assembly) | ID code box (immobilizer code ECU) | 3-bit code transmission request signal*1 | LIN |
| Certification ECU (smart key ECU assembly) | ID code box (immobilizer code ECU) | S code certification condition signal*1 | LIN |
| Certification ECU (smart key ECU assembly) | Power management control ECU | Push button start effective state signal | LIN |
| Certification ECU (smart key ECU assembly) | Power management control ECU | Key certification effective state signal | LIN |
| Certification ECU (smart key ECU assembly) | Power management control ECU | Engine immobilizer unset signal | LIN |
| ID code Box (immobilizer code ECU) | Certification ECU (smart key ECU assembly) | 3-bit code transmission request reception condition signal | LIN |
| ID code Box (immobilizer code ECU) | Certification ECU (smart key ECU assembly) | S code certification result signal*1 | LIN |
| ID code Box (immobilizer code ECU) | Certification ECU (smart key ECU assembly) | L code certification result signal*1 | LIN |
| ID code Box (immobilizer code ECU) | Certification ECU (smart key ECU assembly) | S code registration condition signal*1 | LIN |
| ID code Box (immobilizer code ECU) | Certification ECU (smart key ECU assembly) | L code registration condition signal*1 | LIN |
- *1: for Canada
- *2: except Canada
