Installation [10/2013 - ]

HINT:

Perform "Inspection After Repair" after replacing the heated oxygen sensor. Refer to INITIALIZATION [10/2013 - ] .

1. Using SST, install the heated oxygen sensor onto the front exhaust pipe.

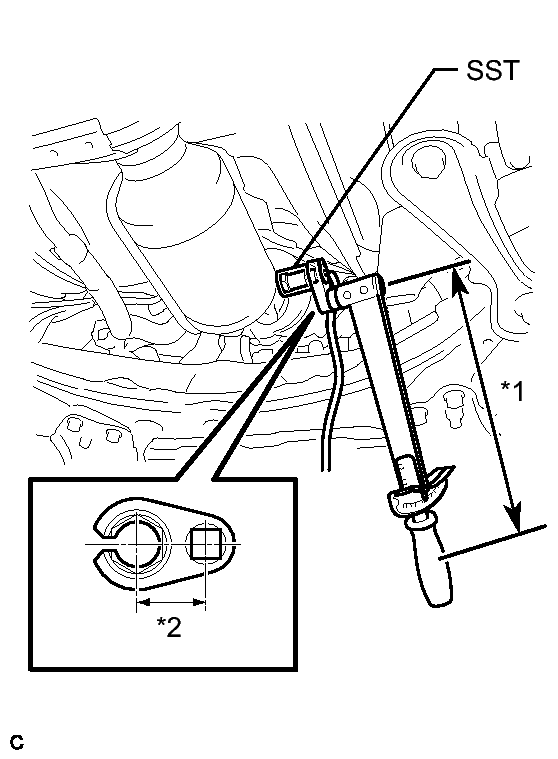

   Fig 1: Identifying Fulcrum Length

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Fulcrum Length
   *2	30 mm

   • SST: 09224-00010

   without SST

   Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

   with SST

   Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)

   NOTE:

   • This torque value can be obtained by using a torque wrench with a fulcrum length of 300 mm (11.81 in.) and SST with a length of 30 mm (1.18 in.). Refer to PRECAUTION [10/2013 - ] .
   • This torque value is effective when SST is parallel to the torque wrench.
2. Install the wire harness clamp bracket and connect the wire harness clamp.

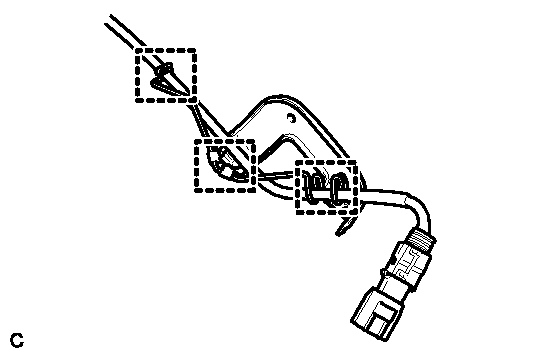

   Fig 2: Identifying Wire Harness Clamp Bracket & Harness Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the wire harness clamp bracket with the bolt.

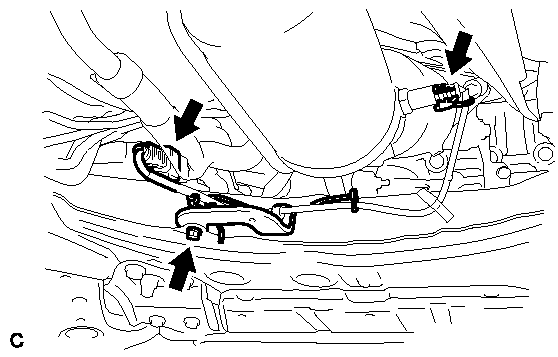

   Fig 3: Identifying Heated Oxygen Sensor Connector & Grommet

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 12 N*m (127 kgf*cm, 9 ft.*lbf)

4. Install the wire harness bracket.
5. Connect the heated oxygen sensor connector.

1. Install the No. 3 engine under cover with the 4 clips.

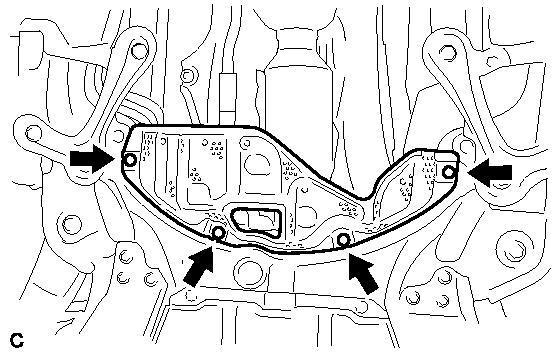

   Fig 4: Identifying Front No. 3 Engine Under Cover & Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Perform "Inspection After Repair" after replacing the heated oxygen sensor. Refer to INITIALIZATION [10/2013 - ] .
