Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
System
>>
Engine Control System (Diagnostics - Introduction)
>>
SFI System
>>
System Diagram [08/2013 - ]
>>
System Diagram [08/2013 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [08/2013 - ]

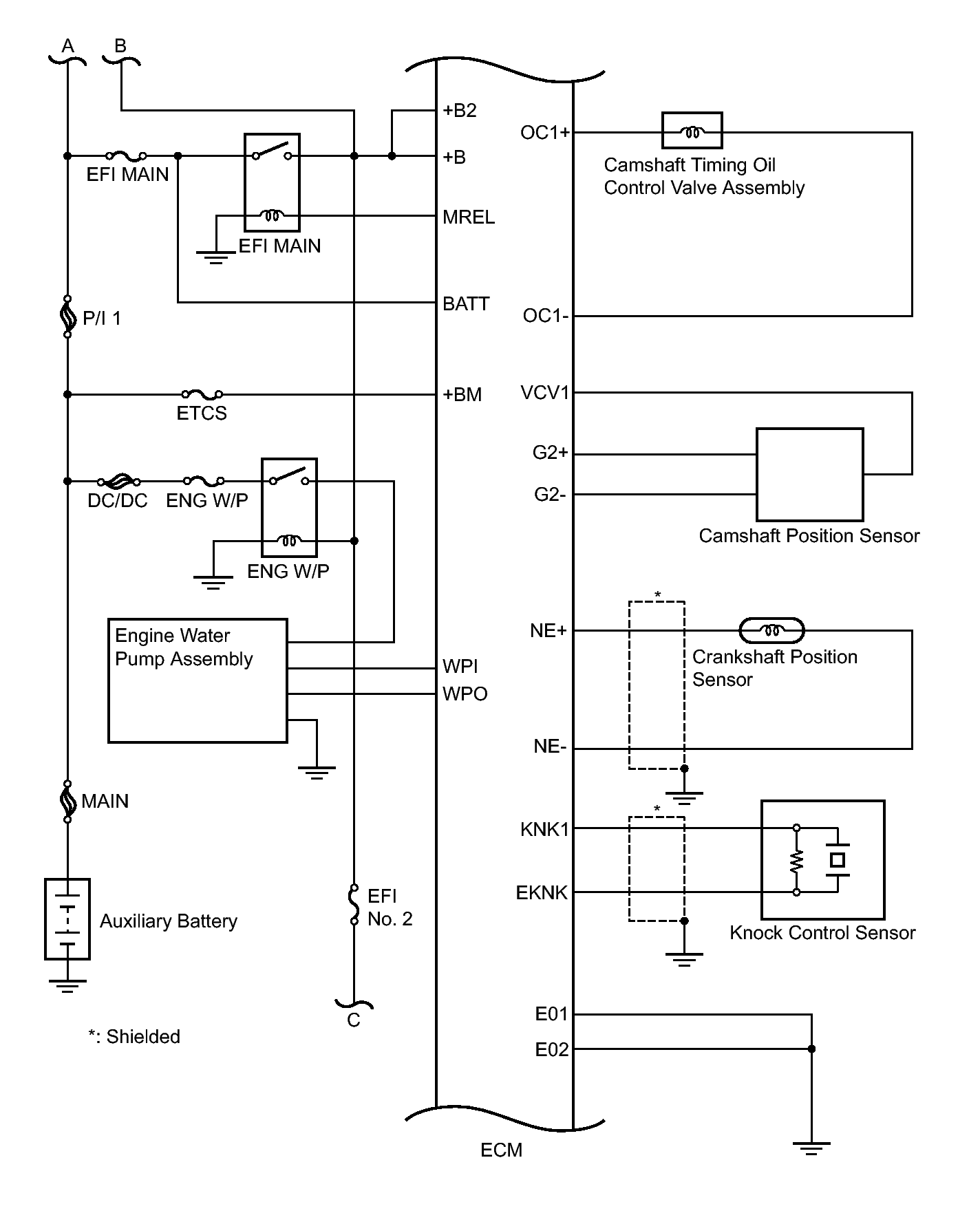

Fig 1: Engine Control System Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Engine Control System Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Engine Control System Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Engine Control System Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
