Driver Side Door Entry Lock Function does not Operate [09/2013 - ]: Wiring Diagram

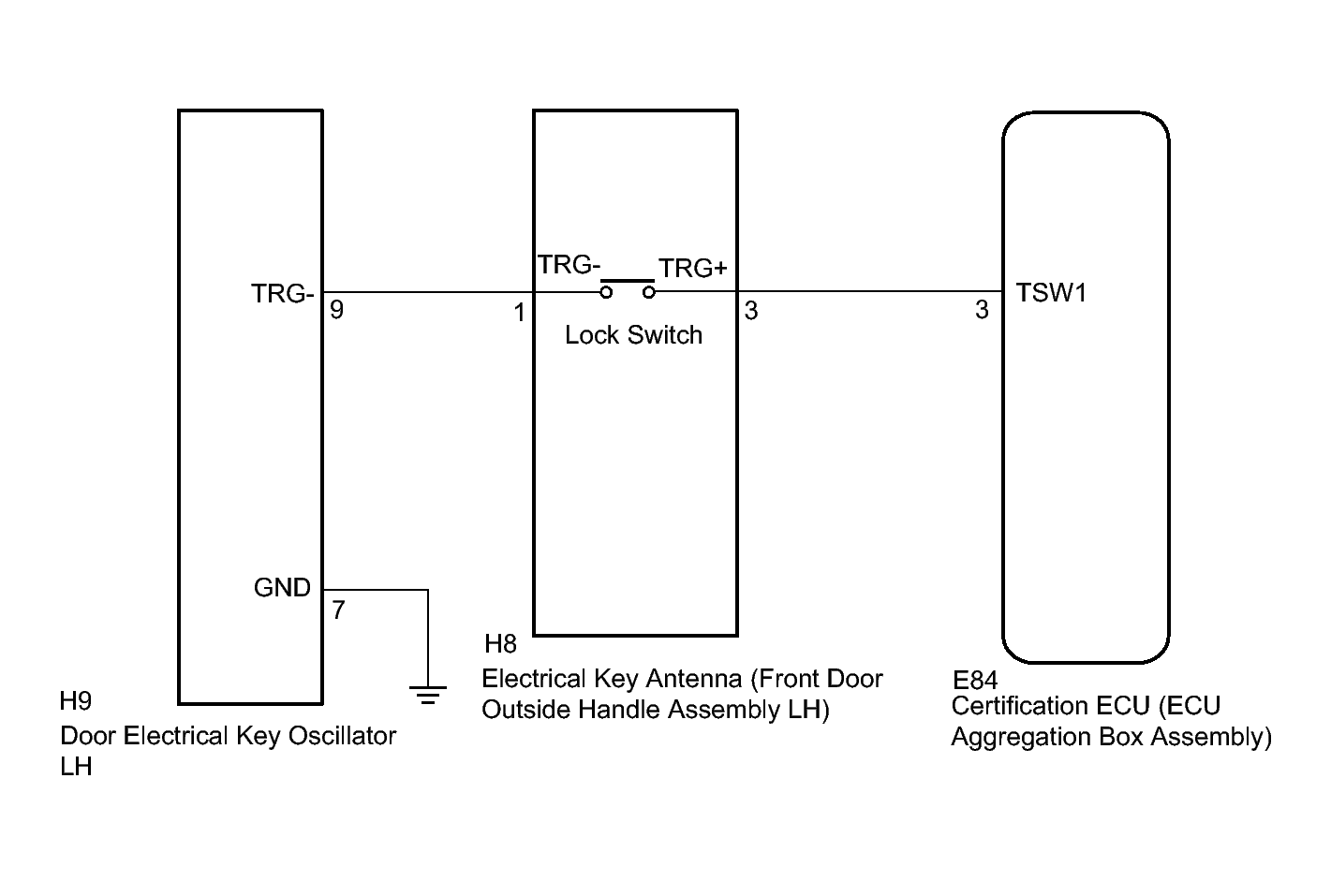

Fig 1: Driver Side Power Door Lock Circuit Diagram
GTY382485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
