Navigation Receiver Assembly Communication Stop Mode [09/2013 - ]: Wiring Diagram

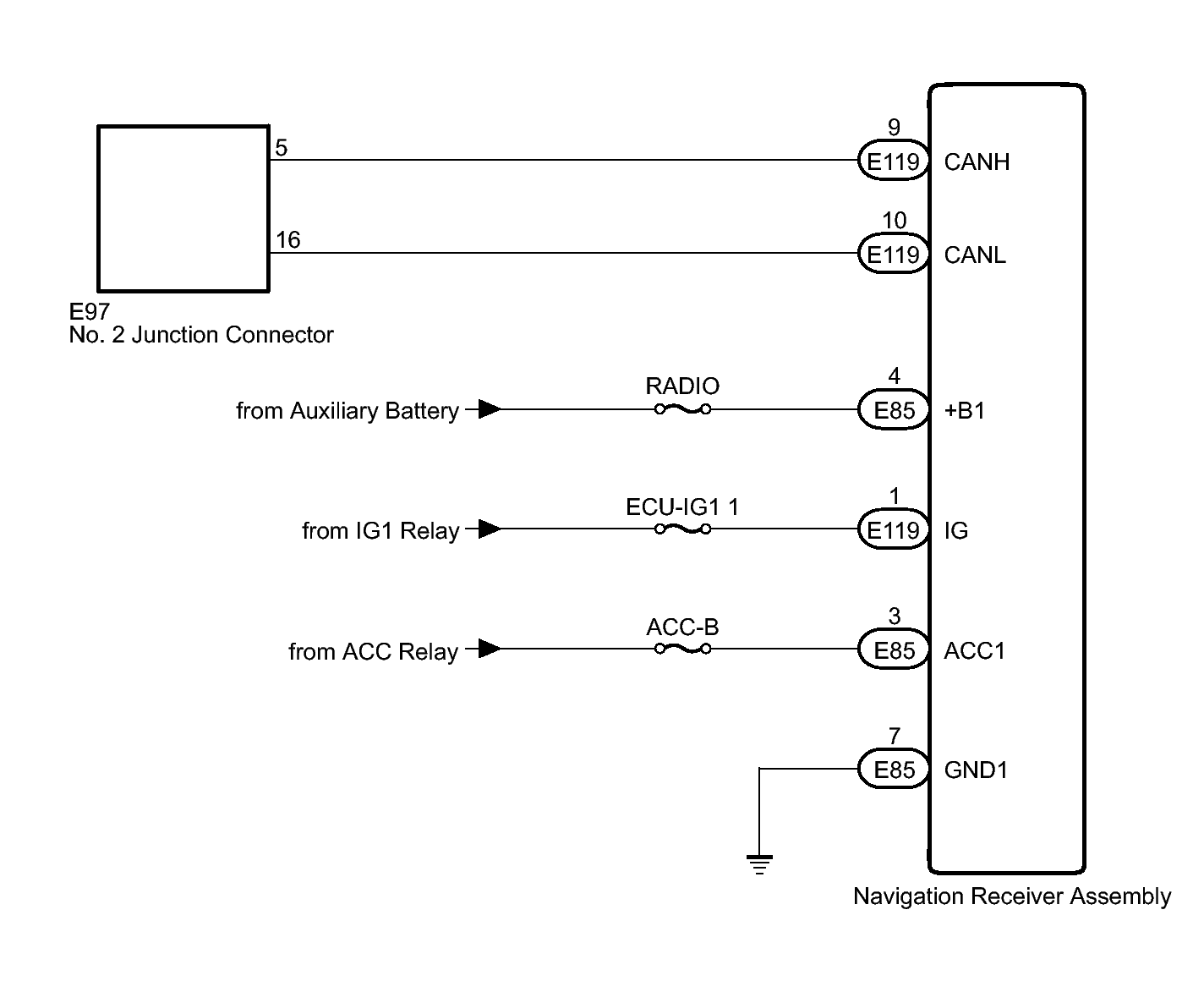

Fig 1: Navigation Receiver Wiring Diagram
GTY381029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
