Data Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter [09/2013 - ]: Wiring Diagram

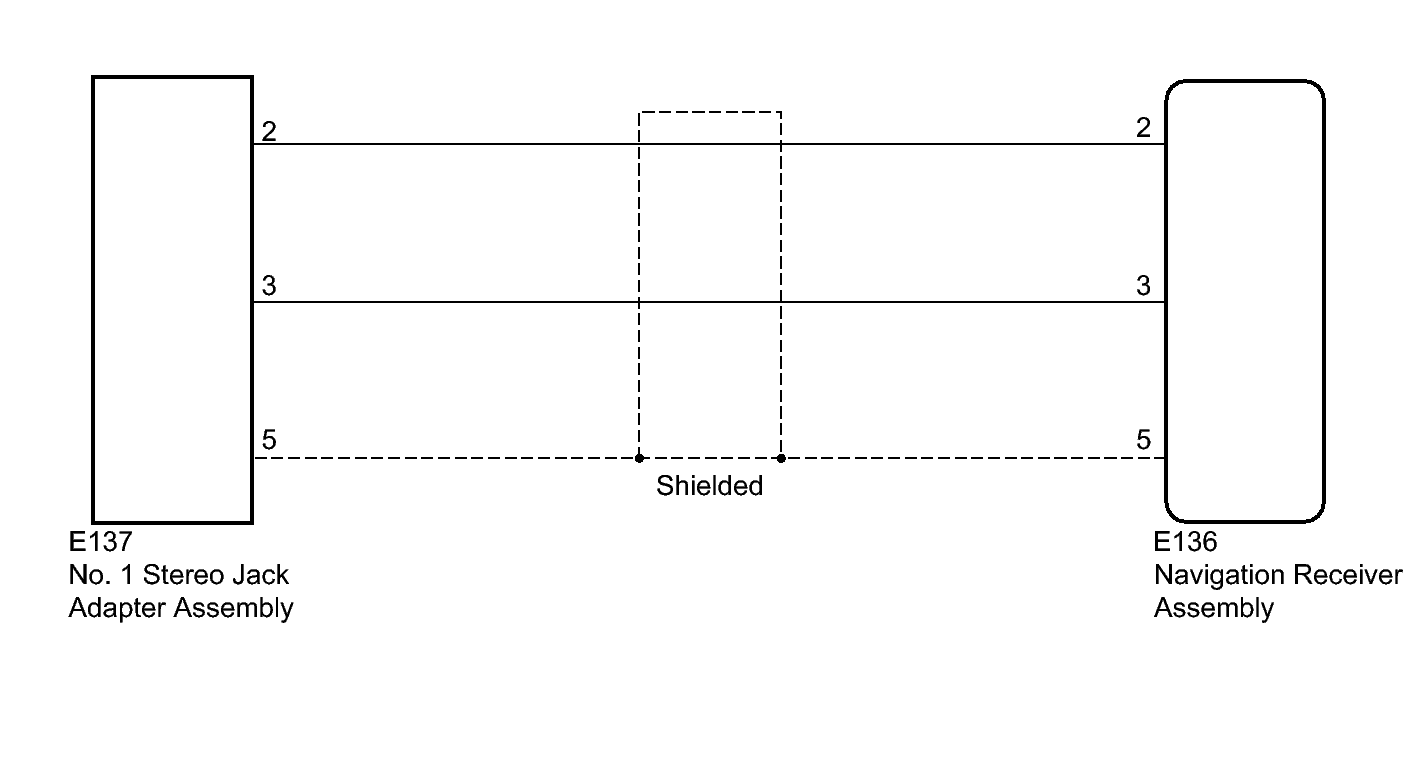

Fig 1: Data Signal Circuit Diagram
GTY382382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
