Navigation Receiver Assembly Power Source Circuit [09/2013 - ]: Wiring Diagram

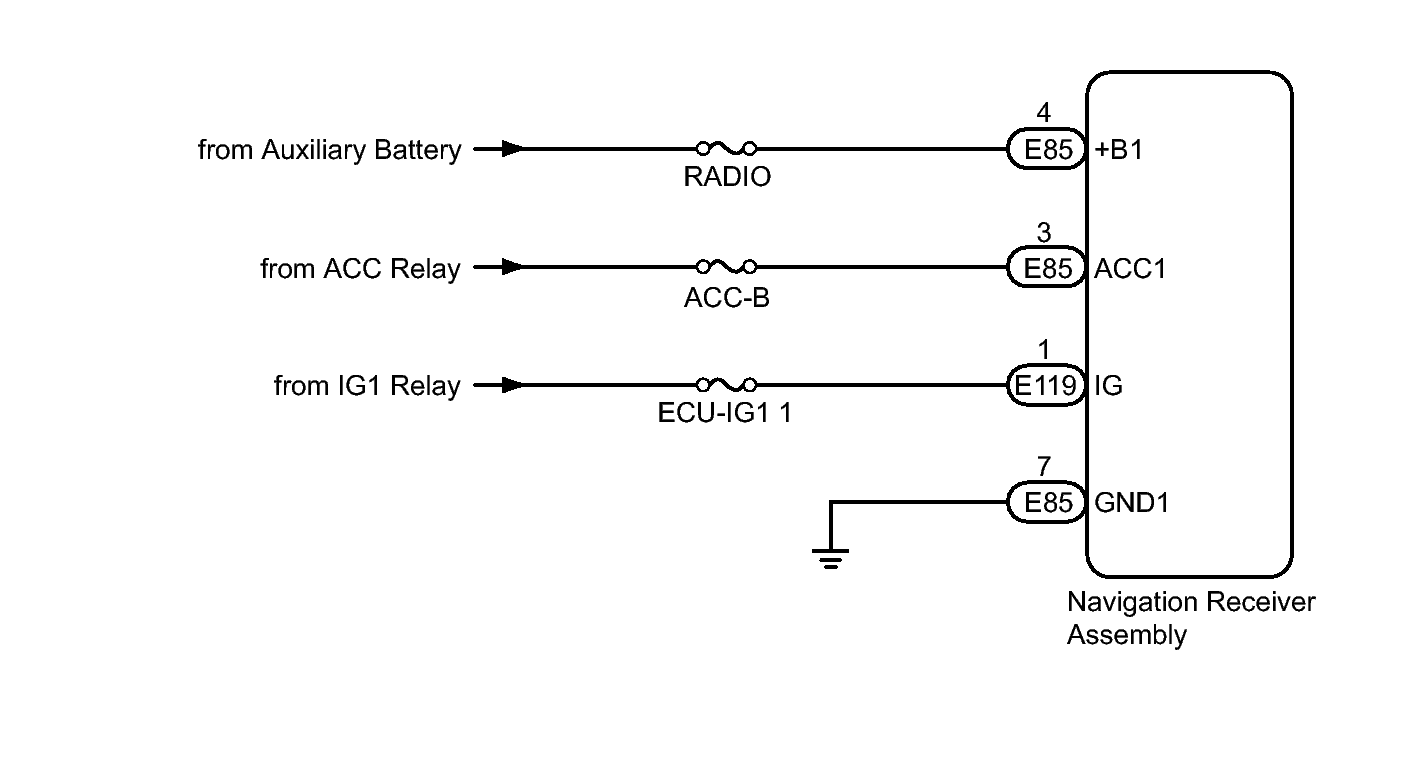

Fig 1: Navigation Receiver Assembly Power Source Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
