Driver Side Door Entry Unlock Function does not Operate [09/2013 - ]: Wiring Diagram

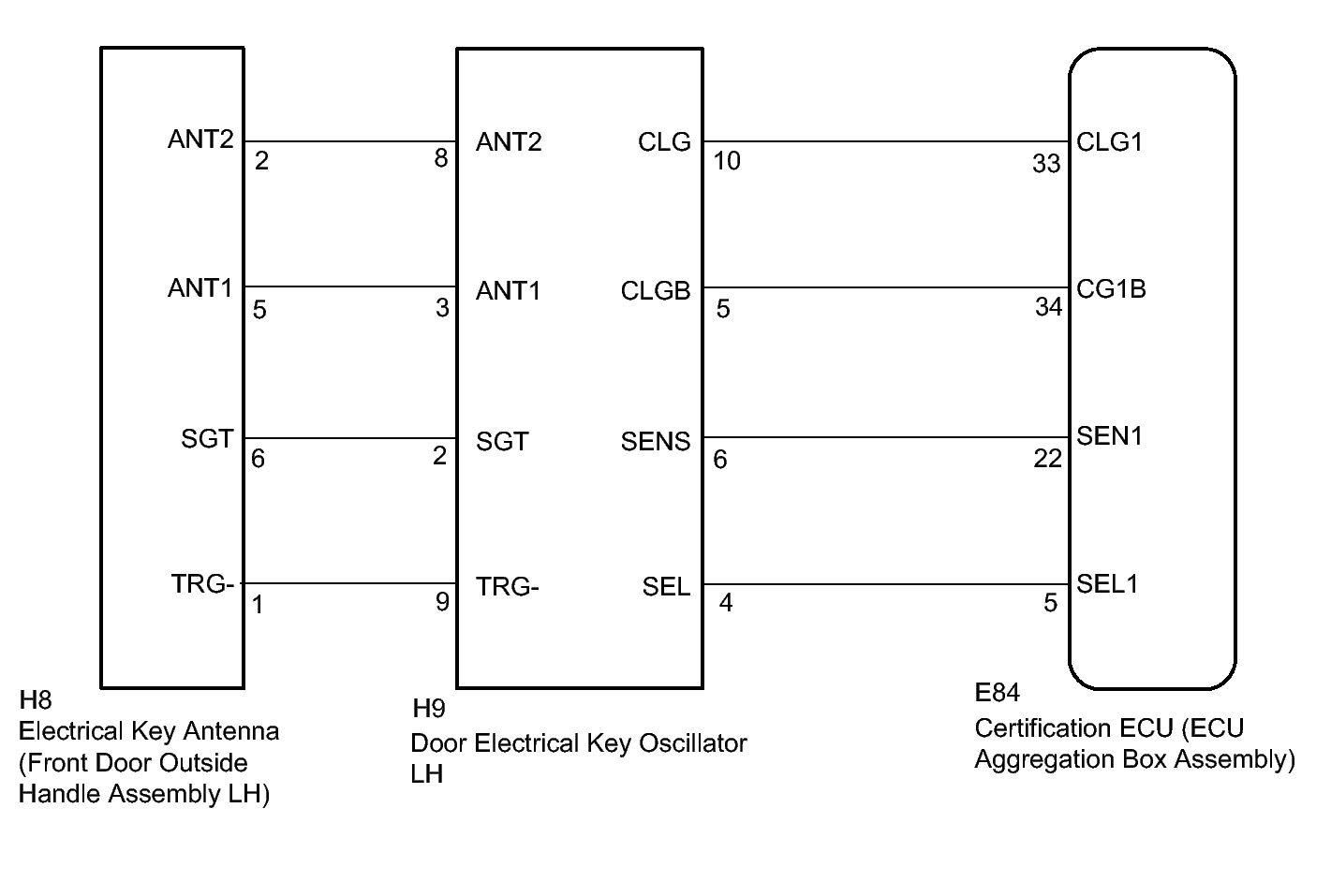

Fig 1: Key Oscillator Circuit Diagram
GTY383201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
