Power Window Control System (Diagnostic Codes & Symptom Tests) (Electric)
>>
Power Window Control System
>>
Symptom Tests
>>
Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch [09/2013 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch [09/2013 - ]: Wiring Diagram

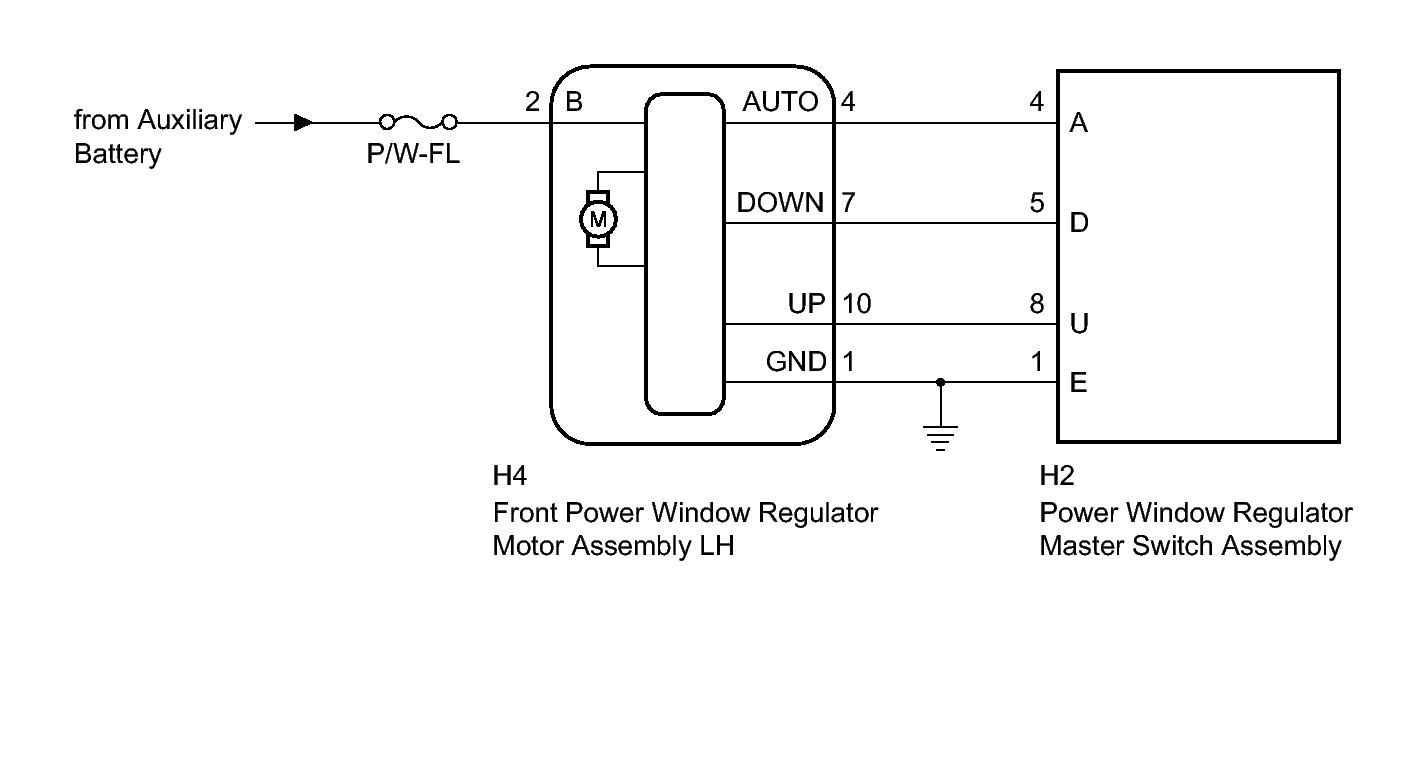

Fig 1: Power Window Regulator Master Switch Circuit Diagram
