Remote Up / Down Function does not Operate [09/2013 - ]: Procedure

1. Turn the window lock switch off and operate the switches on the power window regulator master switch assembly. Check that the remote up/down function operates normally.

   OK

   Remote up/down function operates normally.

NG → See step   2

OK → END

1. Check front passenger, rear LH and rear RH side power window operation by using each power window regulator switch assembly.
   RESULT



   Result	Proceed to
   Front passenger, rear LH and rear RH operate normally by using each power window regulator switch assembly Front passenger, rear LH and rear RH do not operate by using each power window regulator switch assembly	A
   Only front passenger side power window does not operate by using front power window regulator switch assembly	B
   Only rear power window LH does not operate by using rear power window regulator switch assembly LH	C
   Only rear power window RH does not operate by using rear power window regulator switch assembly RH	D

B → See step   4

C → See step   5

D → See step   6

A: Go to next step

1. Disconnect the power window regulator master switch assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   H2-6 (B) - Body ground	Power switch on (IG)	11 to 14 V

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   H2-1 (E) - Body ground	Always	Below 1 Ω

   TEXT IN ILLUSTRATION

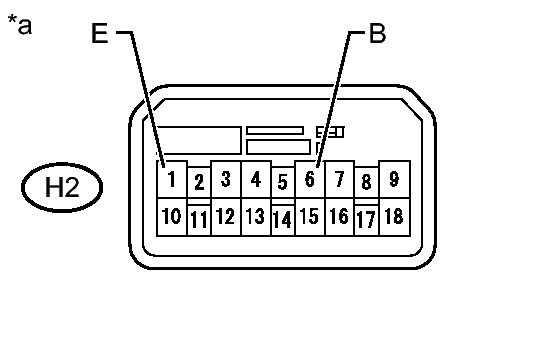

   *a	Front view of wire harness connector (to Power Window Regulator Master Switch Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   7
