Remote Up / Down Function does not Operate [09/2013 - ]: Wiring Diagram

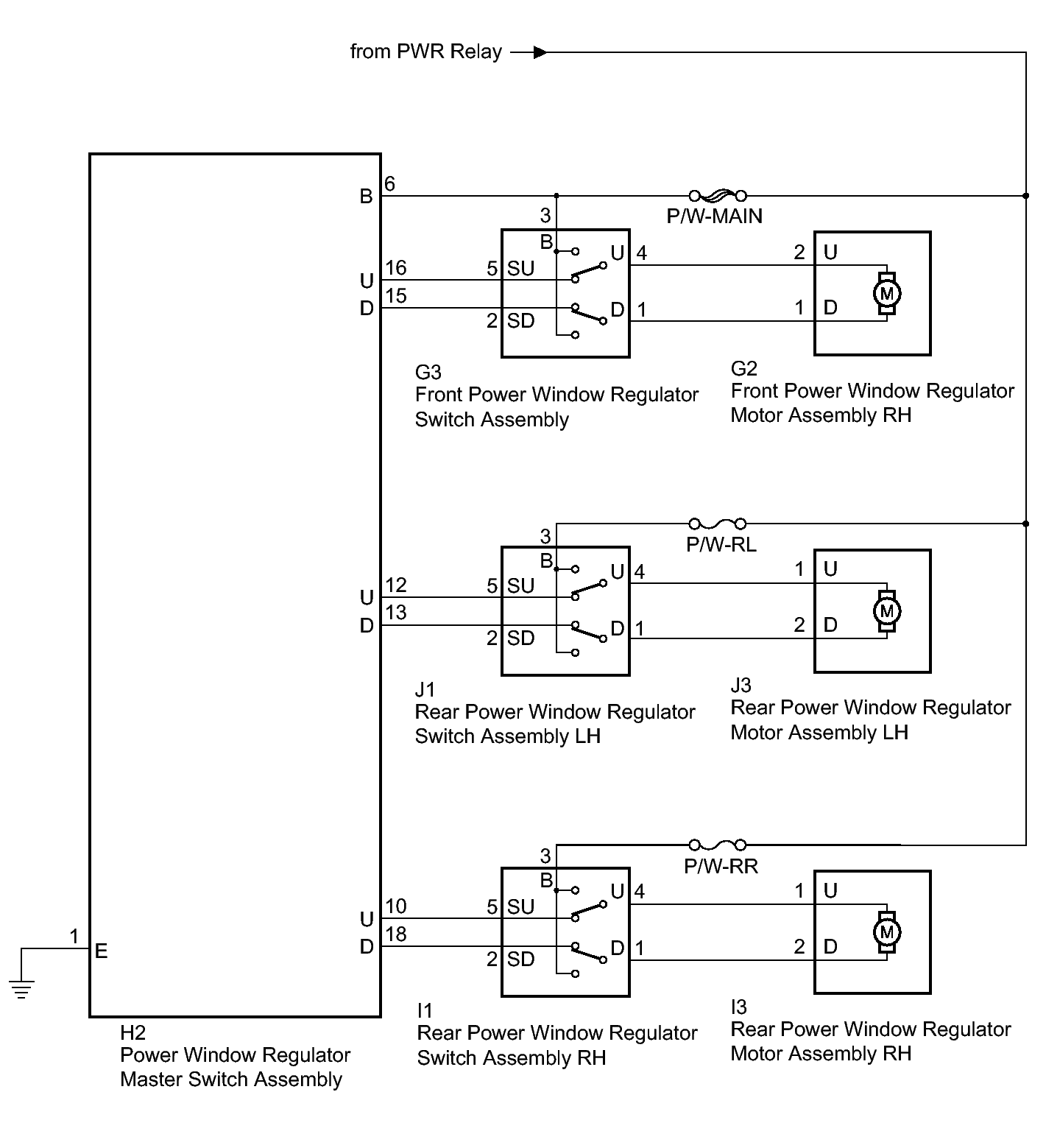

Fig 1: Master Switch Assembly Circuit Diagram
GTY369439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
