DTC B1785: Front Occupant Classification Sensor LH Collision Detection [09/2013 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC B1785: Front Occupant Classification Sensor LH Collision Detection [09/2013 - ]: Wiring Diagram

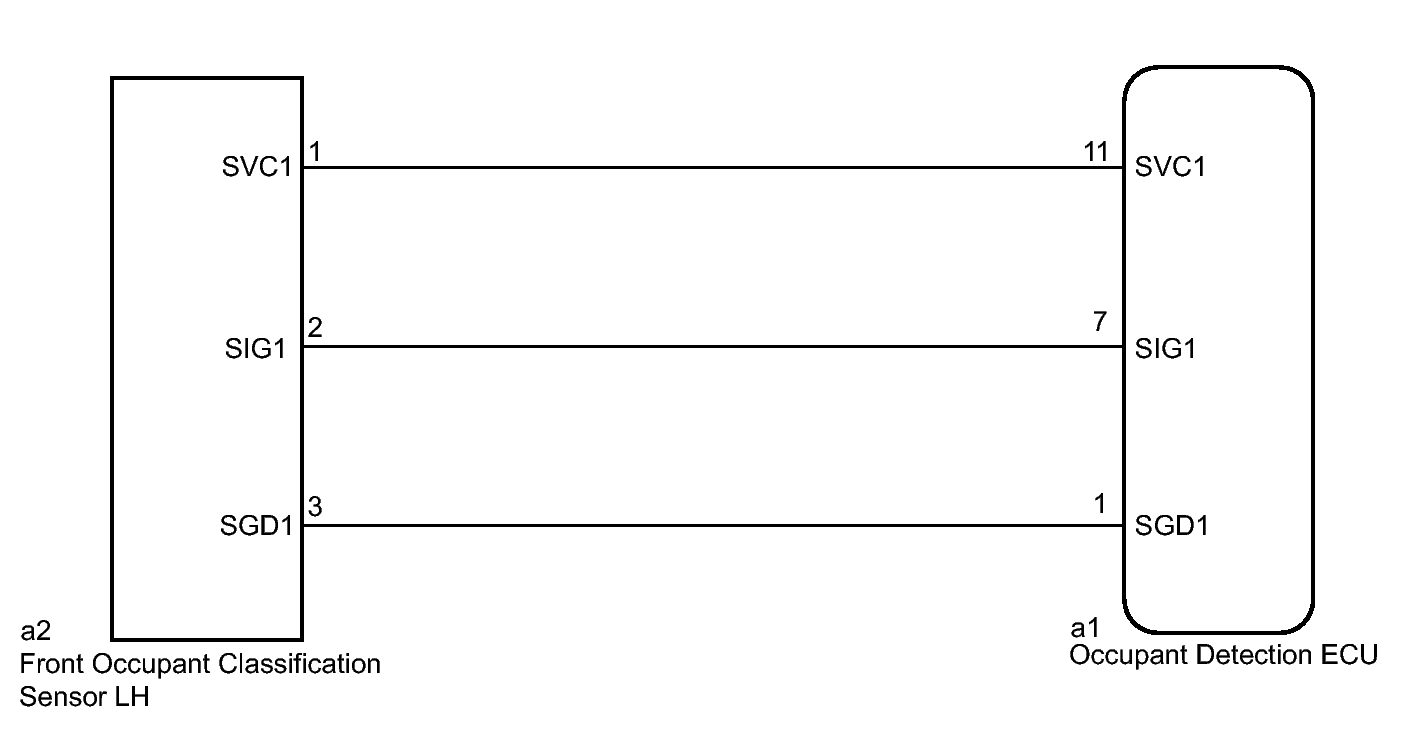

Fig 1: Front Occupant Classification Sensor Wiring Diagram (LH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
