DTC B1623/81: Driver Side - Side Airbag Sensor Assembly Initialization Incomplete; DTC B1628/82: Front Passenger Side - Side Airbag Sensor Assembly Initialization Incomplete; DTC B1643/81: Driver Side Satellite Sensor Bus Initialization Incomplete; DTC B1648/82: Front Passenger Side Satellite Sensor Bus Initialization Incomplete [09/2013 - ]: Wiring Diagram

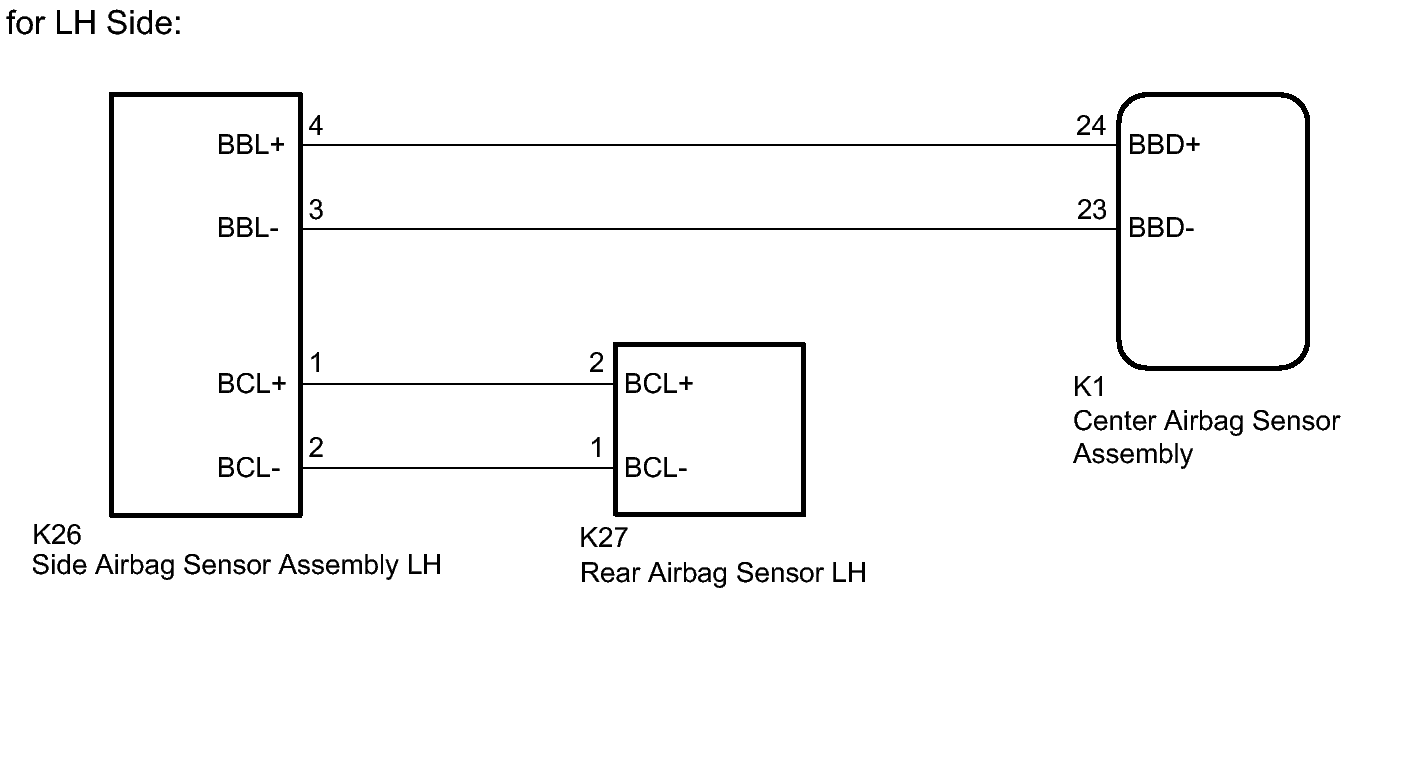

Fig 1: Side Airbag Sensor Wiring Diagram (LH)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

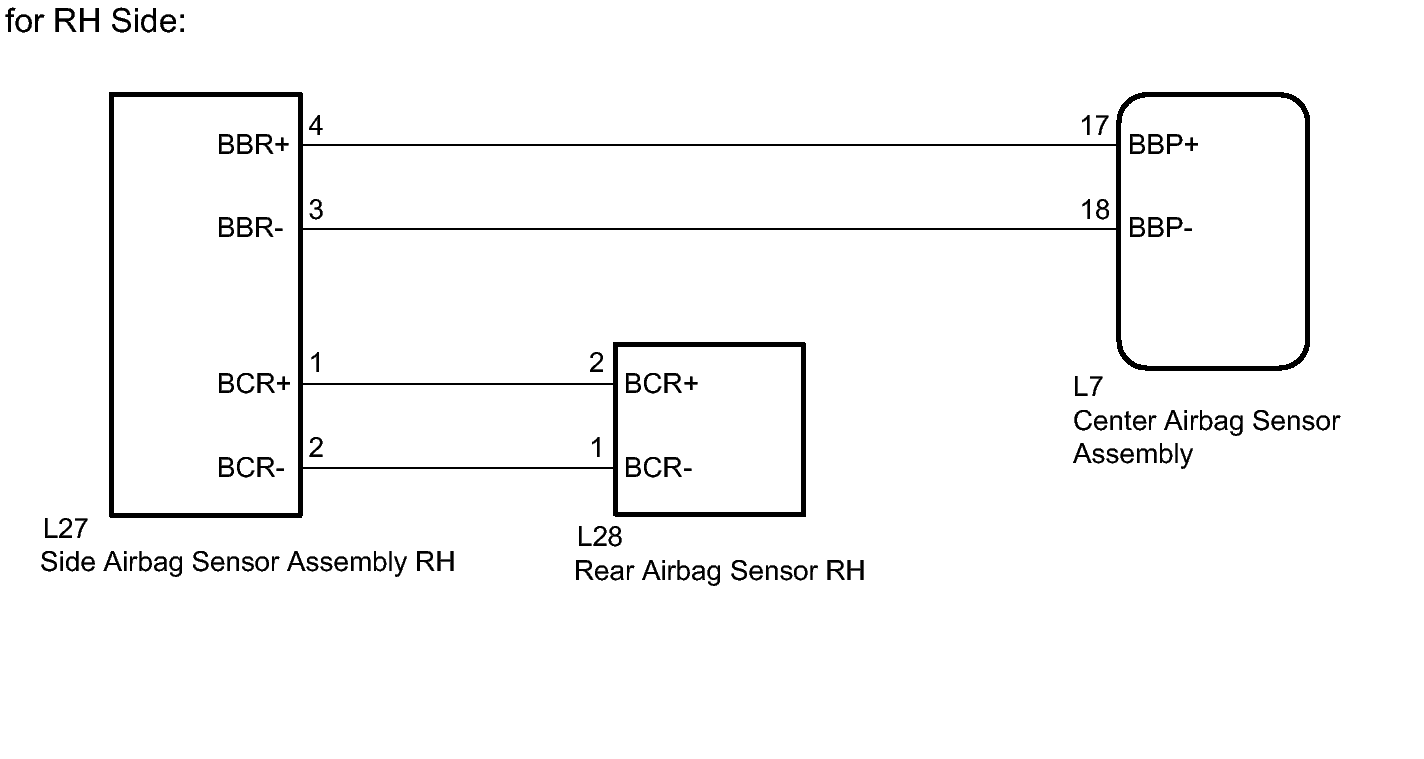

Fig 2: Side Airbag Sensor Wiring Diagram (RH)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
