System Diagram [08/2016 - ]

1. This is a detailed diagram related to certification ECU (smart key ECU assembly).

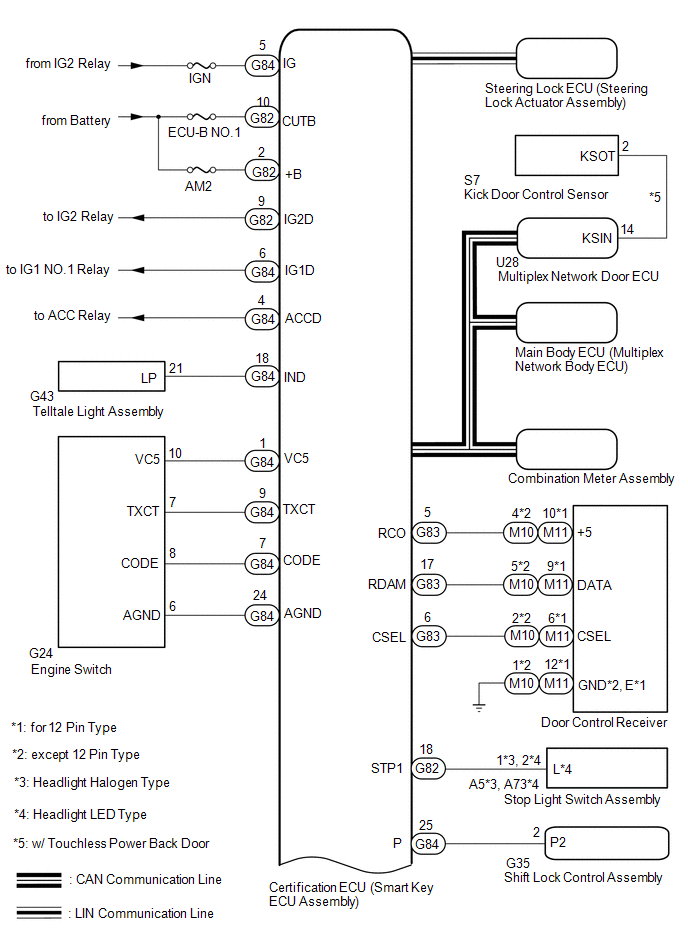

   Fig 1: Certification ECU (Smart Key ECU Assembly) Connector End View (1 Of 3)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

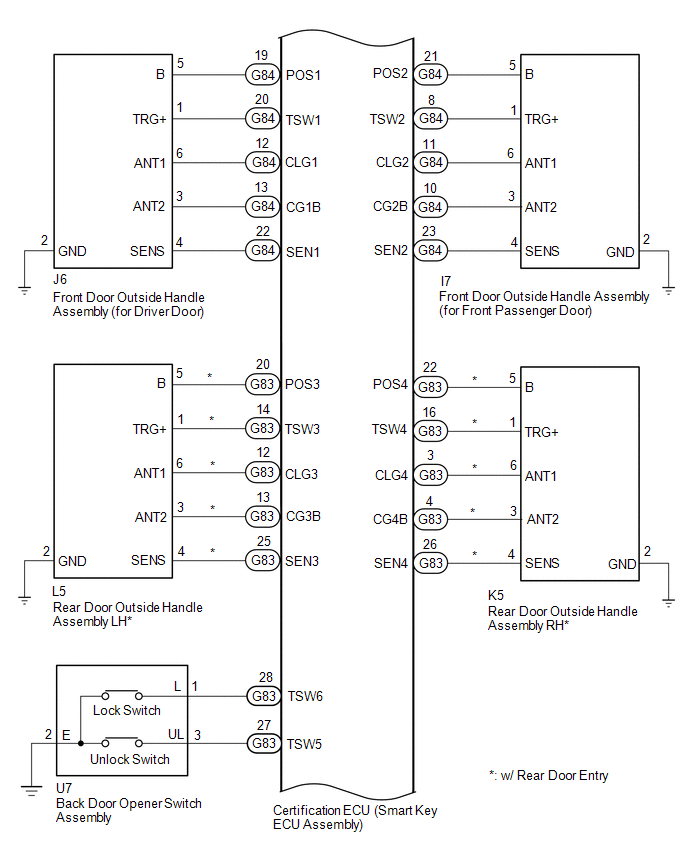

   Fig 2: Certification ECU (Smart Key ECU Assembly) Connector End View (2 Of 3)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 3: Certification ECU (Smart Key ECU Assembly) Connector End View (3 Of 3)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Component	Function
   Front door outside handle assembly LH/RH	Receives request signals from the certification ECU (smart key ECU assembly) via the built-in electrical key antenna (front door) and forms the vehicle exterior detection area. Uses the built-in touch sensor (lock sensor/unlock sensor) to detect the operation of the front door outside handle assembly and sends signals to the certification ECU (smart key ECU assembly).
   Rear door outside handle assembly LH/RH*	Receives request signals from the certification ECU (smart key ECU assembly) via the built-in electrical key antenna (rear door) and forms the vehicle exterior detection area. Uses the built-in touch sensor (lock sensor/unlock sensor) to detect the operation of the rear door outside handle assembly and sends signals to the certification ECU (smart key ECU assembly).
   No. 1 indoor electrical key antenna assembly (front floor) No. 2 indoor electrical key antenna assembly (rear floor)	Receives the request code from the certification ECU (smart key ECU assembly) and forms the vehicle interior detection area.
   No. 3 indoor electrical key antenna assembly (inside luggage)	Receives the request code from the certification ECU (smart key ECU assembly) and forms the luggage interior detection area.
   Electrical key antenna (outside luggage)	Receives the request code from the certification ECU (smart key ECU assembly) and forms the luggage exterior detection area.
   Back door opener switch assembly	Sends switch operation signals to the certification ECU (smart key ECU assembly).
   Door control receiver	Receives the smart key system code/wireless code sent from the electrical key transmitter sub-assembly and sends it to the certification ECU (smart key ECU assembly).
   Wireless door lock buzzer	Sounds when warning functions operate in accordance with certification ECU (smart key ECU assembly) control.
   Electrical key transmitter sub-assembly	Sends the ID code upon receiving a request signal.
   Certification ECU (smart key ECU assembly)	Sends request codes to each electrical key antenna. Distinguishes and verifies the ID code from the electrical key transmitter sub-assembly and sends signals to each ECU in response to operated functions (controls entire system). Performs encryption code communication with the steering lock ECU (steering lock actuator assembly) when ignition operations are performed.

   *: w/ Rear Door Entry
