Smart Key System (Keyless Entry) (Diagnostic Codes & Symptom Tests)
>>
SMART KEY SYSTEM (for Entry Function)
>>
Symptom Tests
>>
Driver Side Door Entry Lock Function does not Operate [08/2013 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Driver Side Door Entry Lock Function does not Operate [08/2013 - ]: Wiring Diagram

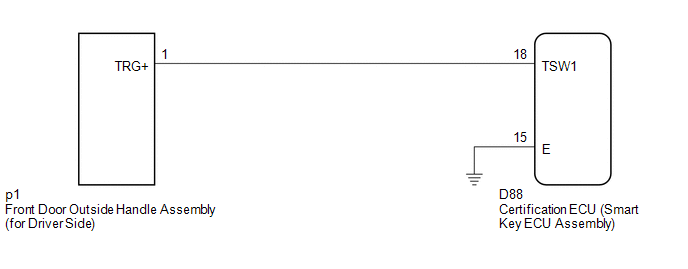

Fig 1: Driver Side Door Outside Handle Assembly Circuit - Wiring Diagram
