Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch [08/2013 - ]: Wiring Diagram

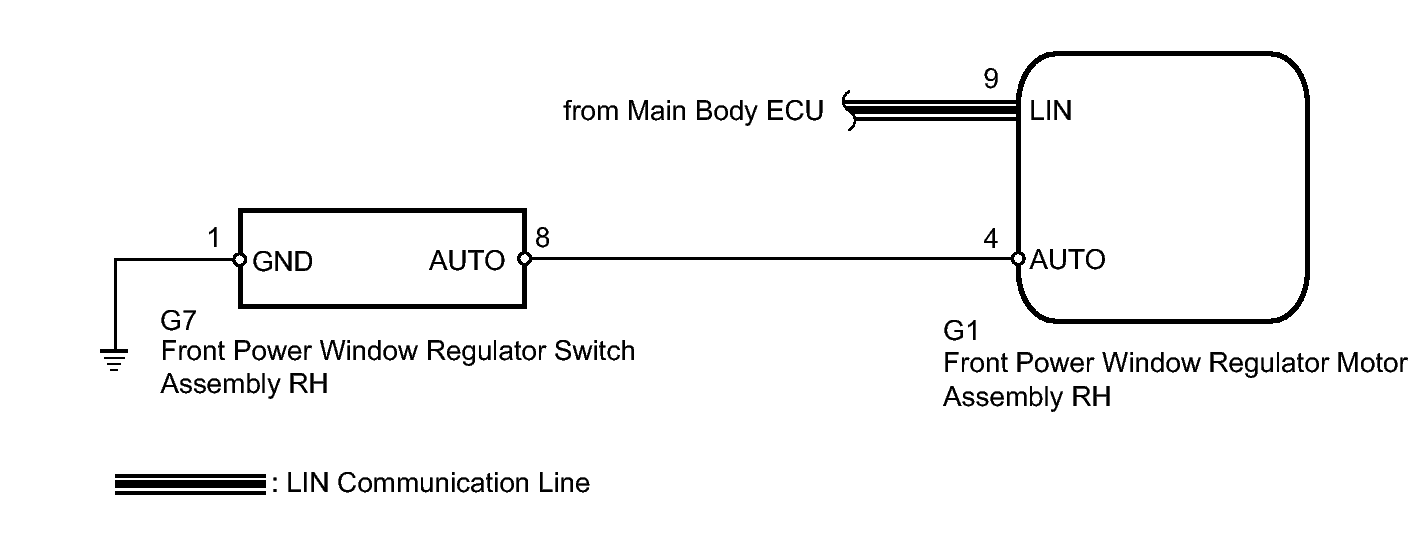

Fig 1: Front Power Window Regulator Motor Assembly RH - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
