Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch [08/2013 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Main Body / Data List.
5. Read the Data List according to the display on the Techstream.
   MAIN BODY (MAIN BODY ECU)



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Communication P-Door Motor	Connection status between front power window regulator motor assembly RH and main body ECU / OK or STOP	OK: Normal communication STOP: Communication stopped	-

   OK

   On the Techstream screen, OK is displayed.

NG → See step   8

OK: Go to next step

1. Enter the following menus: Body Electrical / P-Door Motor / Data List.
2. Read the Data List according to the display on the Techstream.
   P-DOOR MOTOR (FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH)



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   P Door P/W Up SW	Front passenger side power window manual up switch signal / ON or OFF	ON: Front passenger side power window manual up switch operated OFF: Front passenger power window manual up switch not operated	-
   P Door P/W Down SW	Front passenger side power window manual down switch signal / ON or OFF	ON: Front passenger side power window manual down switch operated OFF: Front passenger power window manual down switch not operated	-

   OK

   On the Techstream screen, ON or OFF is displayed accordingly.

NG → See step   4

OK: Go to next step

1. Enter the following menus: Body Electrical / P-Door Motor / Active Test.
2. Perform the Active Test according to the display on the Techstream.
   P-DOOR MOTOR (FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH)



   Tester Display	Test Part	Control Range	Diagnostic Note
   Power Window	Power window	OFF / UP / DOWN	-

   OK

   Front passenger side power window operates normally.

   WARNING:

   Be careful to avoid injuries as this test causes vehicle parts to move. During the Active Test, the jam protection function will not operate.

NG → See step   7

OK → See step   9

1. Remove the front power window regulator switch assembly RH. Refer to REMOVAL [08/2013 - ] .

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   6 (UP) - 1 (GND)	Auto up or up position	Below 1 Ω
   7 (DOWN) - 1 (GND)	Auto down or down position	Below 1 Ω

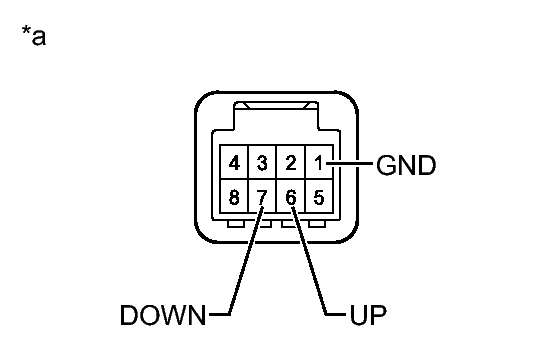

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Front Power Window Regulator Switch Assembly RH)

NG → See step   6

OK: Go to next step

1. Disconnect the front power window regulator motor assembly RH connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G7-6 (UP) - G1-10 (UP)	Always	Below 1 Ω
   G7-7 (DOWN) - G1-7 (DOWN)	Always	Below 1 Ω
   G7-1 (GND) - Body ground	Always	Below 1 Ω
   G7-6 (UP) - Body ground	Always	10 kΩ or higher
   G7-7 (DOWN) - Body ground	Always	10 kΩ or higher
   G1-10 (UP) - Body ground	Always	10 kΩ or higher
   G1-7 (DOWN) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   7
