DTC B1793: Occupant Classification Sensor Power Supply Circuit Malfunction [08/2013 - ]: Procedure

1. Turn the ignition switch to ON, and wait for at least 60 seconds.
2. Clear any DTCs stored in the memory. Refer to DTC CHECK / CLEAR [08/2013 - ] .

   HINT:

   • First clear DTCs stored in the occupant classification ECU and then in the center airbag sensor assembly.
   • Use the Techstream to clear the DTCs of the occupant classification ECU, otherwise the DTCs cannot be cleared.
3. Turn the ignition switch off.
4. Turn the ignition switch to ON, and wait for at least 60 seconds.
5. Using the Techstream, check for DTCs of the occupant classification ECU. Refer to DTC CHECK / CLEAR [08/2013 - ] .

   OK

   DTC B1793 is not output.

   HINT:

   DTCs other than DTC B1793 may be output at this time, but they are not related to this check.

NG → See step   2

OK → See step   9

1. Turn the ignition switch off.
2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Check that the connectors are properly connected to the occupant classification ECU and the occupant classification sensors.

   OK

   Connectors are properly connected.

NG → CONNECT CONNECTORS PROPERLY

OK: Go to next step

1. Check that the connectors (on the occupant classification ECU side and the occupant classification sensors side) are not damaged.

   OK

   Connectors are not deformed or damaged.

NG → REPLACE FRONT SEAT WIRE RH

OK: Go to next step

1. Disconnect the connectors from the occupant classification ECU and the 4 occupant classification sensors.

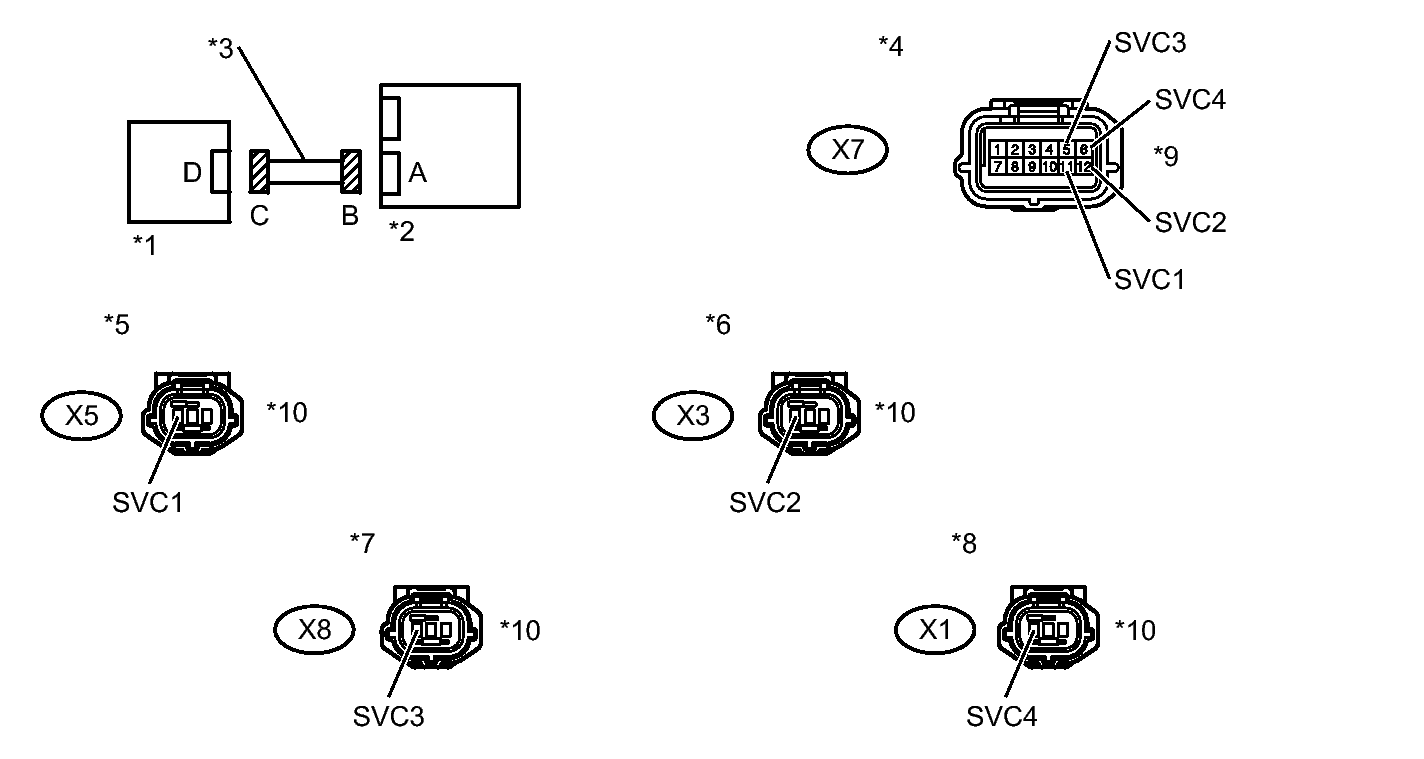

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Occupant Classification Sensor	*2	Occupant Classification ECU
   *3	Front Seat Wire RH	*4	Front view of wire harness connector (to Occupant Classification ECU)
   *5	Front view of wire harness connector (to Front Occupant Classification Sensor LH)	*6	Front view of wire harness connector (to Front Occupant Classification Sensor RH)
   *7	Front view of wire harness connector (to Rear Occupant Classification Sensor LH)	*8	Front view of wire harness connector (to Rear Occupant Classification Sensor RH)
   *9	Connector B	*10	Connector C

2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
3. Turn the ignition switch to ON, and wait for at least 60 seconds.
4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   X7-11 (SVC1) - Body ground	Ignition switch ON	Below 1 V
   X7-12 (SVC2) - Body ground
   X7-5 (SVC3) - Body ground
   X7-6 (SVC4) - Body ground

5. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   X7-11 (SVC1) - X5-1 (SVC1)	Always	Below 1 Ω
   X7-12 (SVC2) - X3-1 (SVC2)
   X7-5 (SVC3) - X8-1 (SVC3)
   X7-6 (SVC4) - X1-1 (SVC4)

6. Turn the ignition switch off.
7. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
8. Measure the resistance according the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   X7-11 (SVC1) - Body ground	Always	1 MΩ or higher
   X7-12 (SVC2) - Body ground
   X7-5 (SVC3) - Body ground
   X7-6 (SVC4) - Body ground
   X7-11 (SVC1) - X7-12 (SVC2)
   X7-12 (SVC2) - X7-5 (SVC3)
   X7-12 (SVC2) - X7-6 (SVC4)
   X7-11 (SVC1) - X7-5 (SVC3)
   X7-11 (SVC1) - X7-6 (SVC4)
   X7-5 (SVC3) - X7-6 (SVC4)

NG → REPLACE FRONT SEAT WIRE RH

OK: Go to next step

1. Connect the connectors to the occupant classification ECU and the 4 occupant classification sensors.
2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
3. Turn the ignition switch to ON, and wait for at least 60 seconds.
4. Clear any DTCs stored in the memory. Refer to DTC CHECK / CLEAR [08/2013 - ] .

   HINT:

   • First clear DTCs stored in the occupant classification ECU and then in the center airbag sensor assembly.
   • Use the Techstream to clear the DTCs of the occupant classification ECU, otherwise the DTCs cannot be cleared.
5. Turn the ignition switch off.
6. Turn the ignition switch to ON, and wait for at least 60 seconds.
7. Using the Techstream, check for DTCs of the occupant classification ECU. Refer to DTC CHECK / CLEAR [08/2013 - ] .

   OK

   DTC B1793 is not output.

   HINT:

   DTCs other than DTC B1793 may be output at this time, but they are not related to this check.

NG → See step   6

OK → See step   9

1. Turn the ignition switch off.
2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Replace the front seat cushion spring assembly RH.
   • for Manual seat. Refer to REMOVAL [08/2013 - ] .
   • for Power seat. Refer to REMOVAL [08/2013 - ] .

   HINT:

   Perform the inspection using parts from a normal vehicle when possible.

NEXT: Go to next step

1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
2. Connect the Techstream to the DLC3.
3. Turn the ignition switch to ON, and wait for at least 60 seconds.
4. Using the Techstream, perform the zero point calibration. Refer to INITIALIZATION [08/2013 - ] .

NEXT: Go to next step

1. Using the Techstream, perform the sensitivity check. Refer to INITIALIZATION [08/2013 - ] .

   Standard range

   27 to 33 kg (59.5 to 72.8 lb)

NEXT → END
