System Diagram [08/2014 - ]

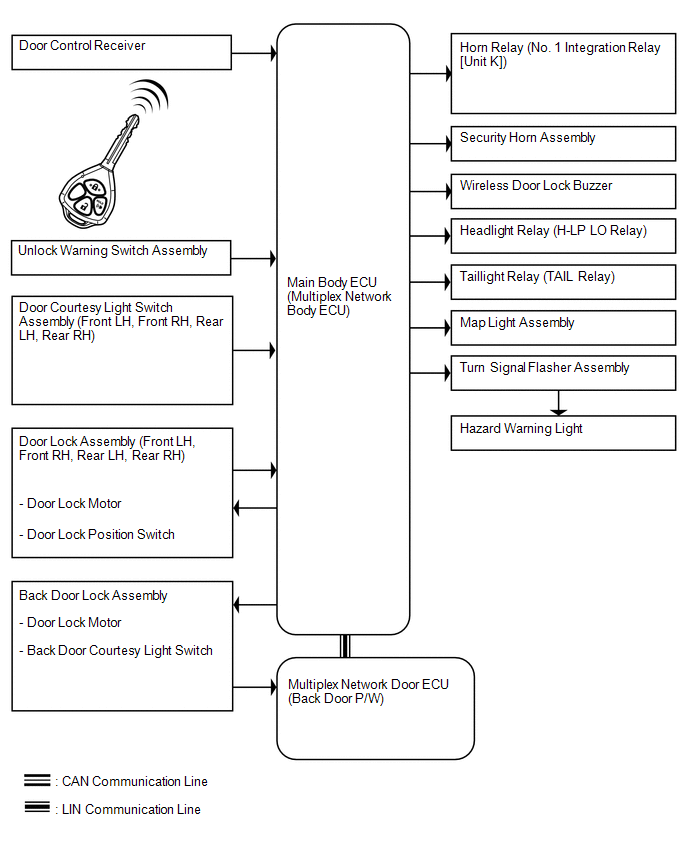

Fig 1: Identifying Wireless Door Lock Control System Diagram
GTY227151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
