DTC U1002: Lost Communication with Gateway Module (MS Bus); DTC U1114: Lost Communication with Main Switch Module [08/2014 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC U1002: Lost Communication with Gateway Module (MS Bus); DTC U1114: Lost Communication with Main Switch Module [08/2014 - ]: Wiring Diagram

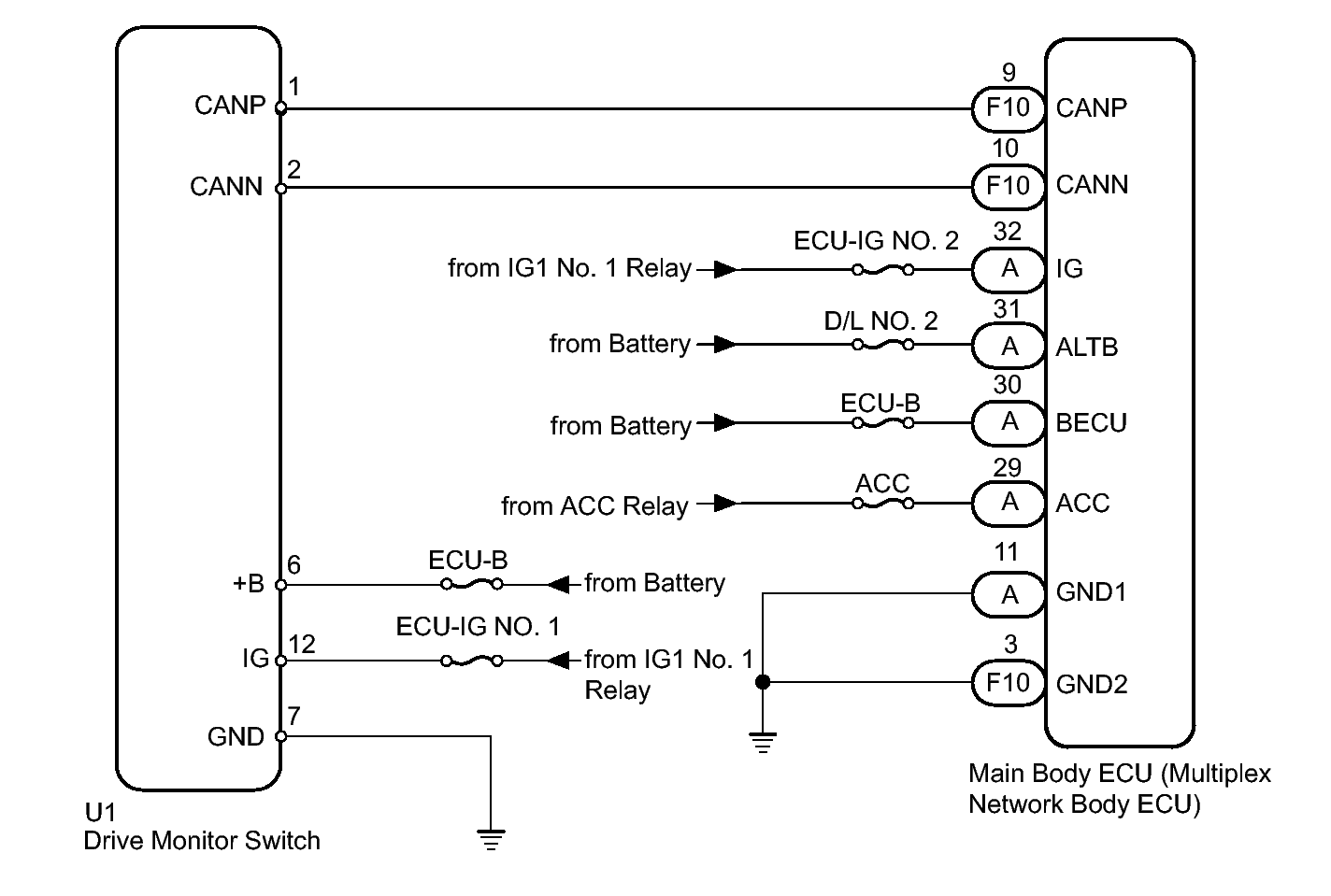

Fig 1: Main Body ECU Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
