Display Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter [08/2014 - ]: Wiring Diagram

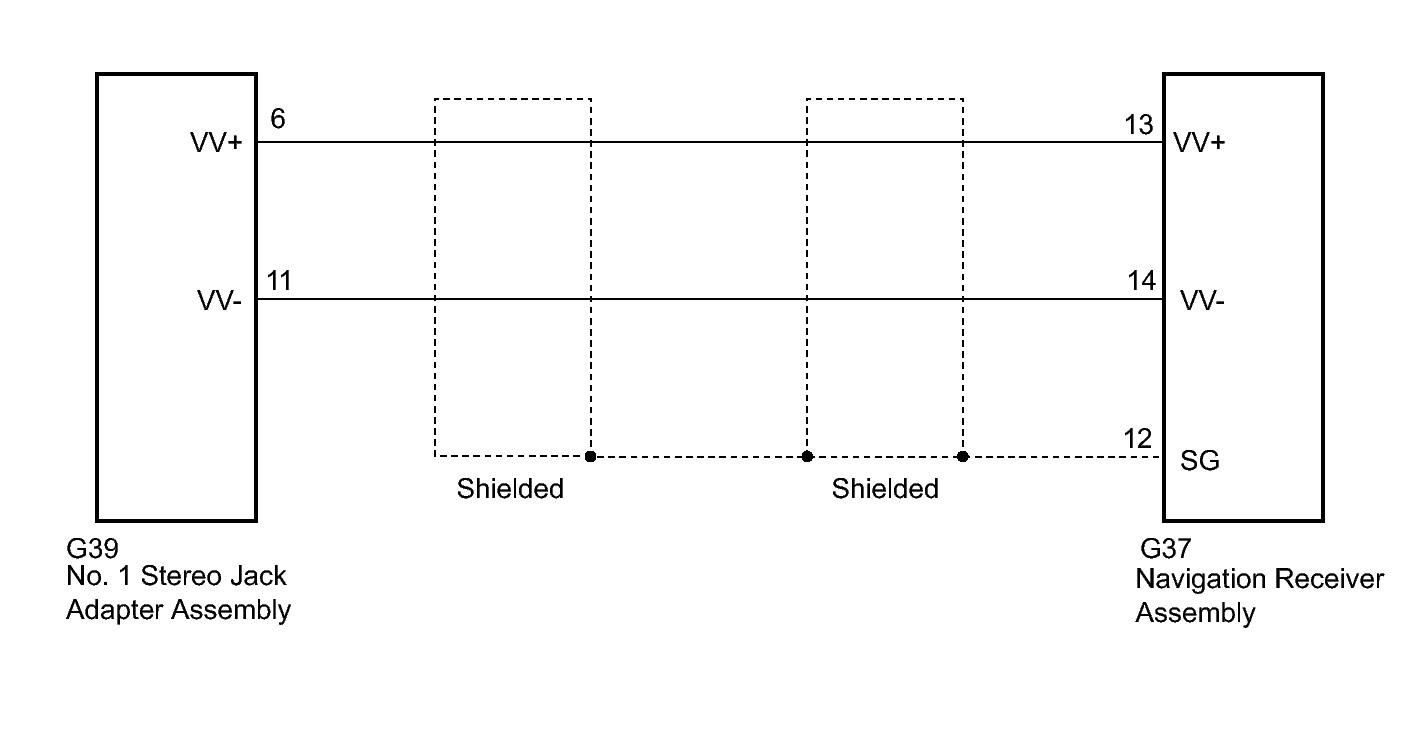

Fig 1: Navigation Receiver Assembly And Stereo Jack Adapter Wiring Diagram
GTY451238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
