Navigation Receiver Assembly Power Source Circuit [08/2014 - ]: Procedure

1. Disconnect the G6 and G37 navigation receiver assembly connectors.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G6-7 (GND) - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   G6-4 (B) - G6-7 (GND)	Always	11 to 14 V
   G6-3 (ACC) - G6-7 (GND)	Ignition switch ACC	11 to 14 V
   G37-1 (IG) - G6-7 (GND)	Ignition switch ON	11 to 14 V

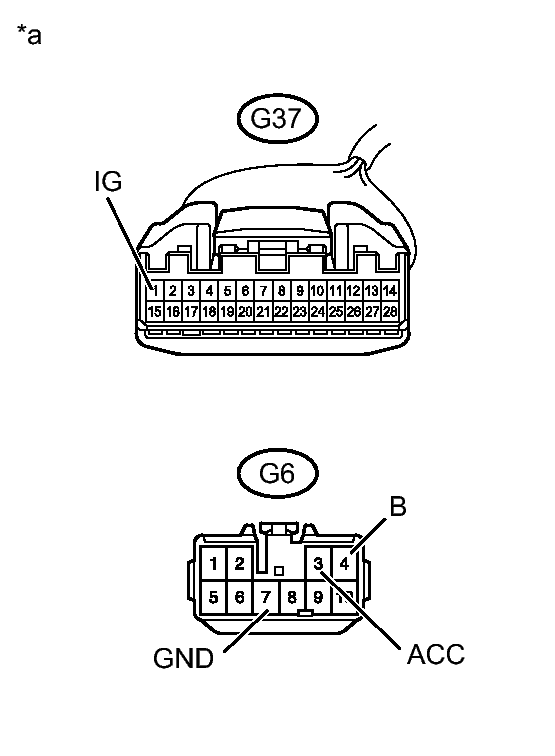

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Navigation Receiver Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   2
