Back Door Entry Lock Function does not Operate [08/2014 - ]: Procedure

  1. CHECK POWER DOOR LOCK OPERATION
    1. When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation. Refer to OPERATION CHECK [08/2014 - ] .

      OK

      Door locks operate normally.

    NG → See step   6

    OK: Go to next step

  2. READ VALUE USING TECHSTREAM (LOCK SWITCH)
    1. Using the Techstream, read the Data List. Refer to DATA LIST / ACTIVE TEST [08/2014 - ] .
      SMART KEY

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Tr/B-Door Lock SW Back door lock switch / ON or OFF ON: Back door lock switch pushed
      OFF: Back door lock switch not pushed
      -

      OK

      "ON" (lock switch is pushed) and "OFF" (lock switch is not pushed) appear on the screen.

    NG → See step   3

    OK → See step   5

  3. INSPECT BACK DOOR CONTROL SWITCH (LOCK SWITCH)
    1. Remove the back door control switch. Refer to DISASSEMBLY [08/2014 - ] .

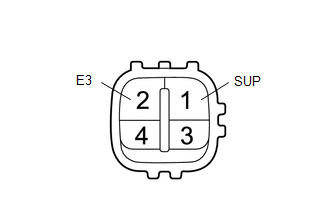

      GTY221717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      1 (SUP) - 2 (E3) No switch pushed 10 kΩ or higher
      1 (SUP) - 2 (E3) Lock switch pushed Below 1 Ω

    NG → See step   7

    OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (BACK DOOR CONTROL SWITCH - CERTIFICATION ECU)
    1. Disconnect the W11 switch connector.
    2. Disconnect the F79 ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      W11-1 (SUP) - F79-23 (TSW6) Always Below 1 Ω
      W11-2 (E3) - Body ground Always Below 1 Ω
      W11-1 (SUP) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   5

  5. REPLACE CERTIFICATION ECU. Refer to  REMOVAL [08/2014 - ]
  6. GO TO POWER DOOR LOCK CONTROL SYSTEM. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [08/2014 - ]
  7. REPLACE BACK DOOR CONTROL SWITCH. Refer to  DISASSEMBLY [08/2014 - ]
