DTC C1401: Front Speed Sensor RH Malfunction; DTC C1271: Low Output Signal of Front Speed Sensor RH (Test Mode DTC); DTC C1272: Low Output Signal of Front Speed Sensor LH (Test Mode DTC); DTC C1402: Front Speed Sensor LH Malfunction [08/2014 - ]: Procedure

1. Turn the ignition switch off.

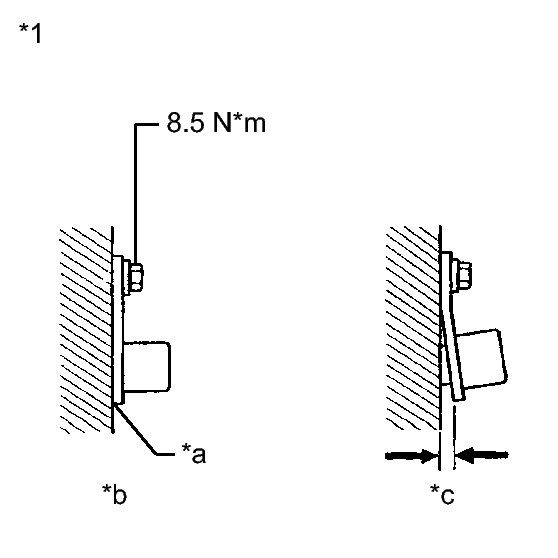

2. Check the speed sensor installation.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   There is no clearance between the sensor and the front steering knuckle.

   The installation bolt is tightened properly.

   Torque

   8.5 N*m (87 kgf*cm, 75 in.*lbf)

   TEXT IN ILLUSTRATION



   *1	Front Speed Sensor
   *a	No clearance
   *b	OK
   *c	NG

NG → INSTALL FRONT SPEED SENSOR CORRECTLY

OK: Go to next step

1. Remove the front speed sensor. Refer to REMOVAL [08/2014 - ] .
2. Check the speed sensor tip.

   OK

   No scratches, oil, or foreign matter on the sensor tip.

   NOTE:

   If no damage to the speed sensor tip is found during this inspection, do not replace the speed sensor.

NG → CLEAN OR REPLACE FRONT SPEED SENSOR

OK: Go to next step

1. Remove the front axle with ABS rotor bearing assembly (for 2WD: Refer to REMOVAL [08/2014 - ] , for 4WD: Refer to REMOVAL [08/2014 - ] ).
2. Check the speed sensor rotor.

   OK

   No scratches, oil, or foreign matter on the rotors.

   HINT:

   The front speed sensor rotor is incorporated into the front axle with ABS rotor bearing assembly.

   If the front speed sensor rotor needs to be replaced, replace it together with the front axle with ABS rotor bearing assembly.

NG → CLEAN OR REPLACE FRONT SPEED SENSOR ROTOR

OK: Go to next step

1. Turn the ignition switch off.
2. Connect the Techstream to the DLC3.
3. Start the engine.
4. Turn the Techstream on.
5. Enter the following menus: Chassis / ABS/VSC/TRAC / Data List.
   ABS/VSC/TRAC



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   FR Wheel Speed	Front wheel speed sensor RH reading/ Min.: 0 km/h (0 mph), Max.: 326 km/h (202 mph)	Actual wheel speed	No large fluctuations when driving at a constant speed.
   FL Wheel Speed	Front wheel speed sensor LH reading/ Min.: 0 km/h (0 mph), Max.: 326 km/h (202 mph)	Actual wheel speed	No large fluctuations when driving at a constant speed.

6. Check that there is no difference between the speed value output from the speed sensor displayed on the Techstream and the speed value displayed on the speedometer when driving the vehicle.

   HINT:

   Factors that affect the indicated vehicle speed include tire size, tire inflation and tire wear. The speed indicated on the speedometer has an allowable margin of error. This can be tested using a speedometer tester (calibrated chassis dynamometer). For details about testing and the margin of error, refer to the reference chart. Refer to OPERATION CHECK [08/2014 - ] .

   OK

   The speed value output from the speed sensor displayed on the Techstream is the same as the actual vehicle speed measured using a speedometer tester (calibrated chassis dynamometer).

NG → See step   5

OK → See step   7

1. Replace the front speed sensor. Refer to REMOVAL [08/2014 - ] .

NEXT: Go to next step

1. Clear the DTCs. Refer to DTC CHECK / CLEAR [08/2014 - ] .
2. Turn the ignition switch off.
3. Start the engine.
4. Drive the vehicle at a speed of 40 km/h (25 mph) or more for at least 60 seconds.
5. Check if the same DTC is output. Refer to DTC CHECK / CLEAR [08/2014 - ] .
   RESULT



   Result	Proceed to
   DTCs C1401 and C1402 are not output	A
   DTCs C1401 and/or C1402 are output (for 2WD)	B
   DTCs C1401 and/or C1402 are output (for 4WD)	C

B → See step   8

C → See step   9

A → END
