System Diagram [08/2014 - ]

Fig 1: SFI System Diagram (W/o Smart Key System) (1 Of 7)
GTY438288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: SFI System Diagram (W/ Smart Key System) (2 Of 7)
GTY453495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

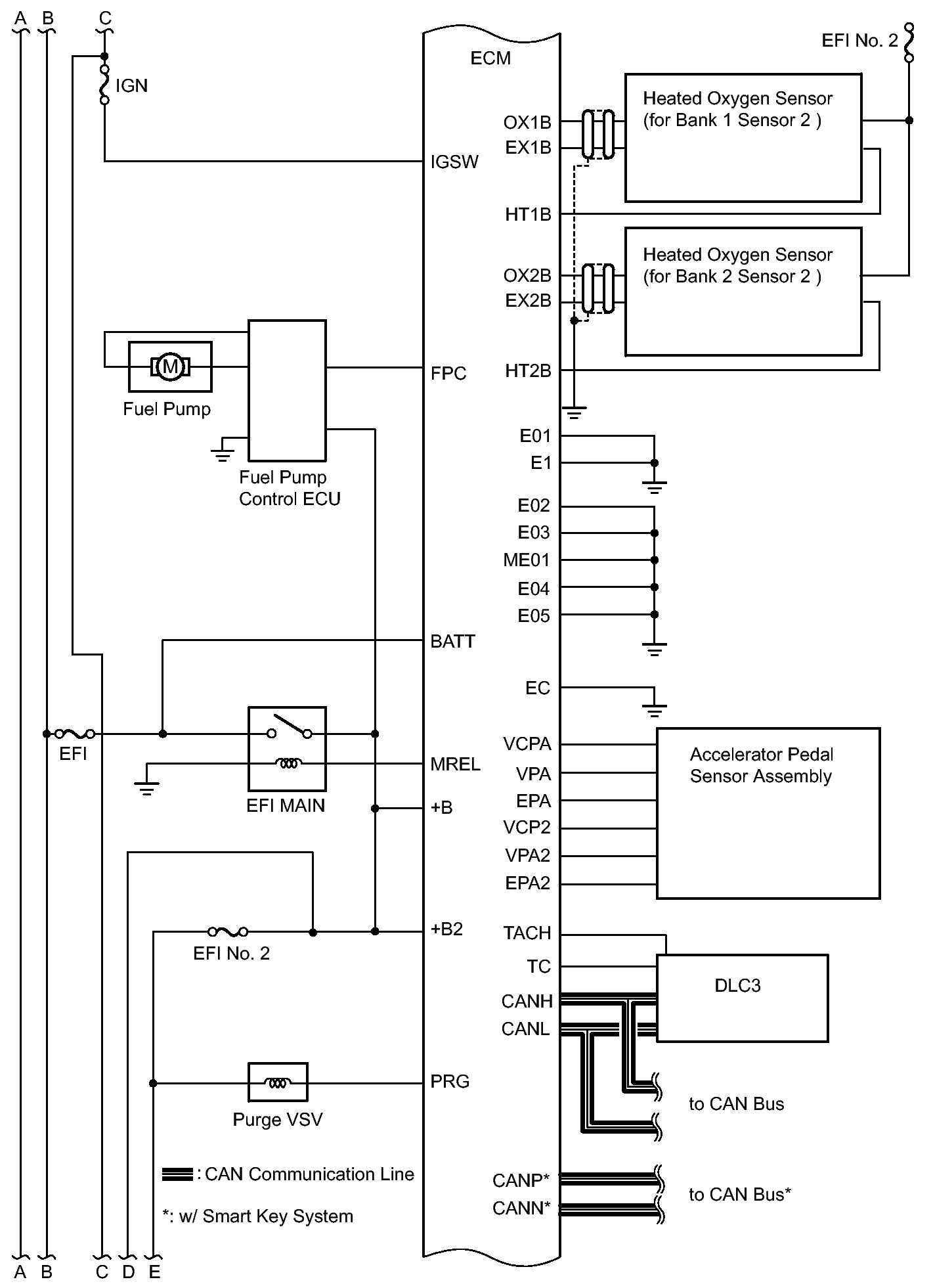

Fig 3: SFI System Diagram (3 Of 7)
GTY440474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

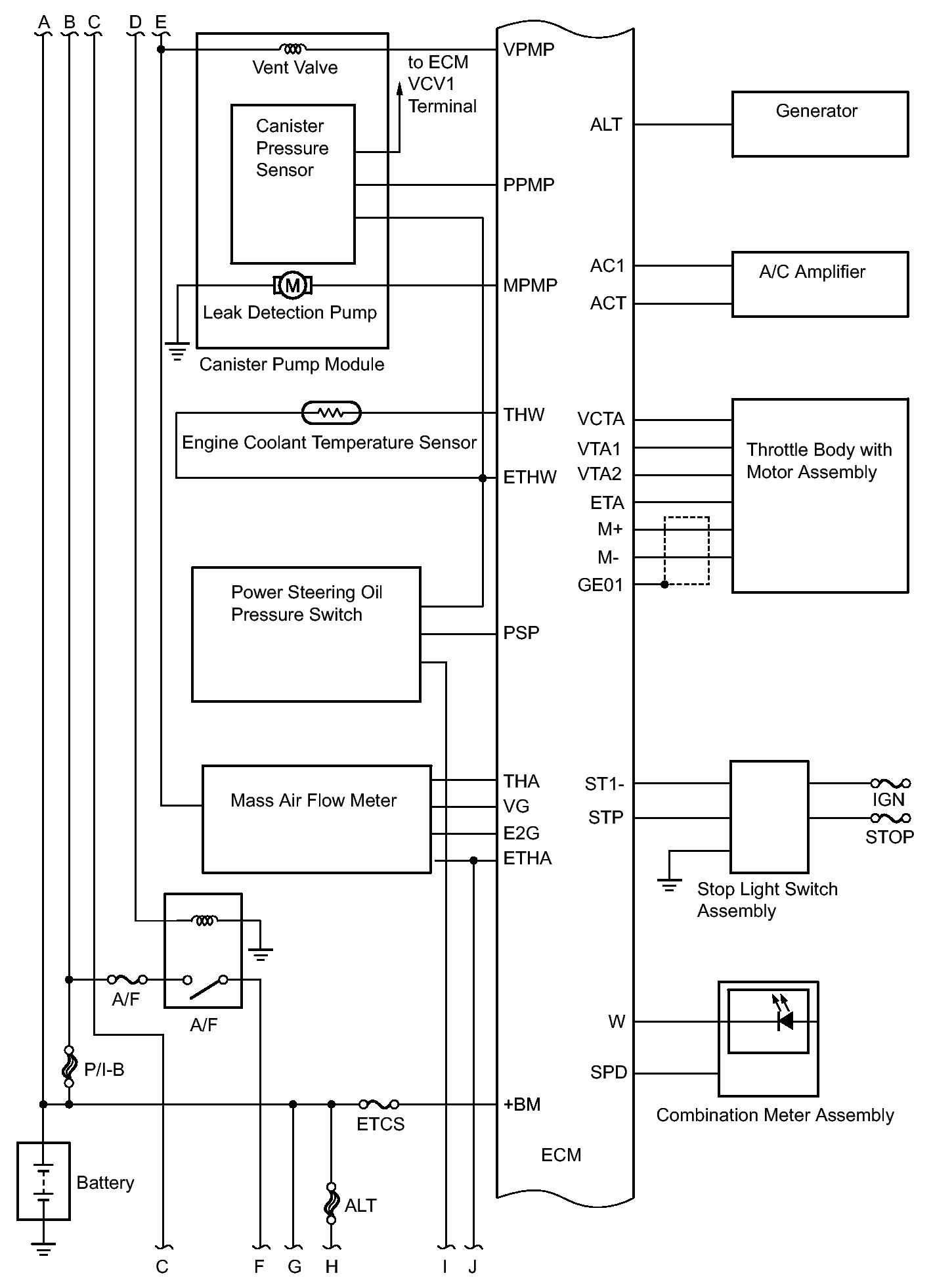

Fig 4: SFI System Diagram (4 Of 7)
GTY438932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: SFI System Diagram (5 Of 7)
GTY439698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: SFI System Diagram (6 Of 7)
GTY453499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

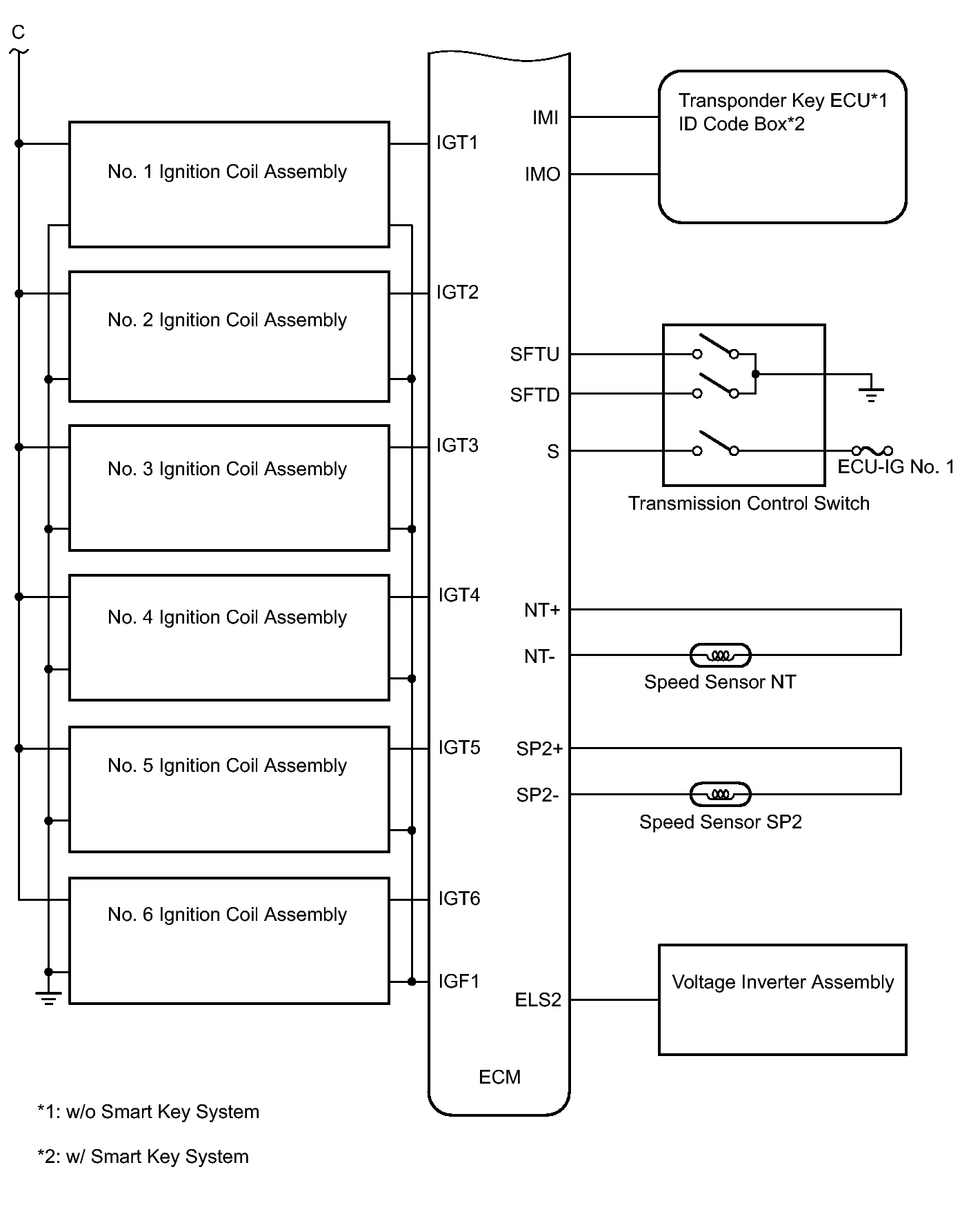

Fig 7: SFI System Diagram (7 Of 7)
GTY438509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
