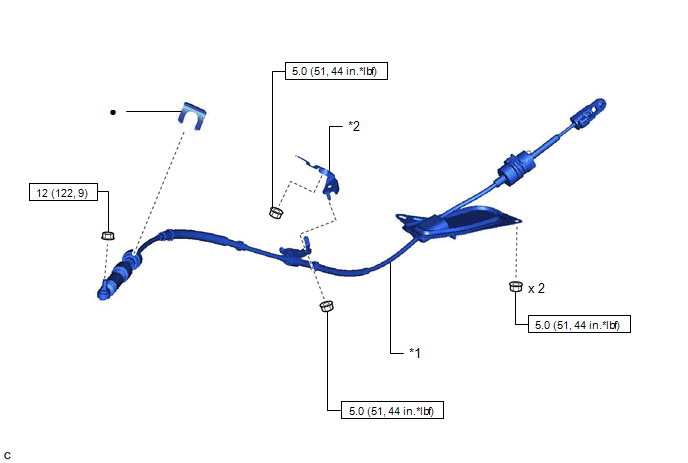

Components [08/2013 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

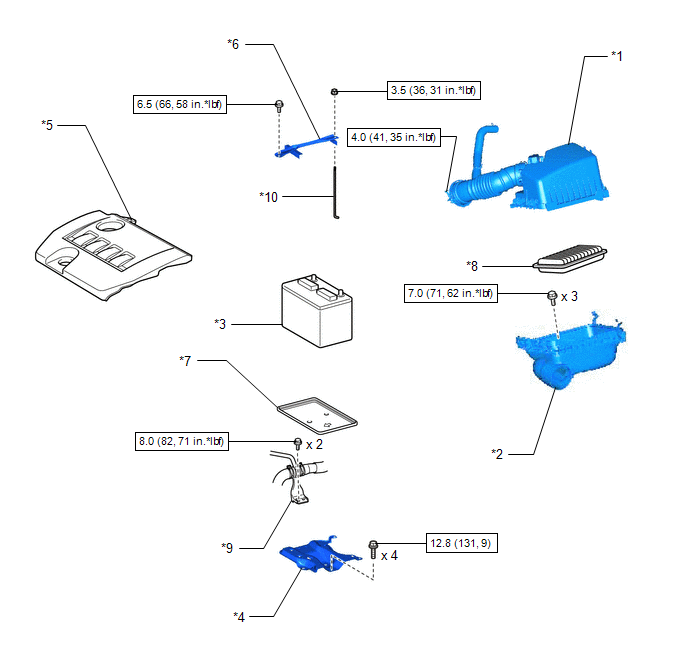

| Callout | Description | Callout | Description |
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | AIR CLEANER CASE SUB-ASSEMBLY |
| *3 | BATTERY | *4 | BATTERY CARRIER |
| *5 | NO. 2 CYLINDER HEAD COVER | *6 | BATTERY CLAMP SUB-ASSEMBLY |
| *7 | BATTERY TRAY | *8 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY |
| *9 | RADIATOR PIPE | *10 | BATTERY CLAMP BOLT |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

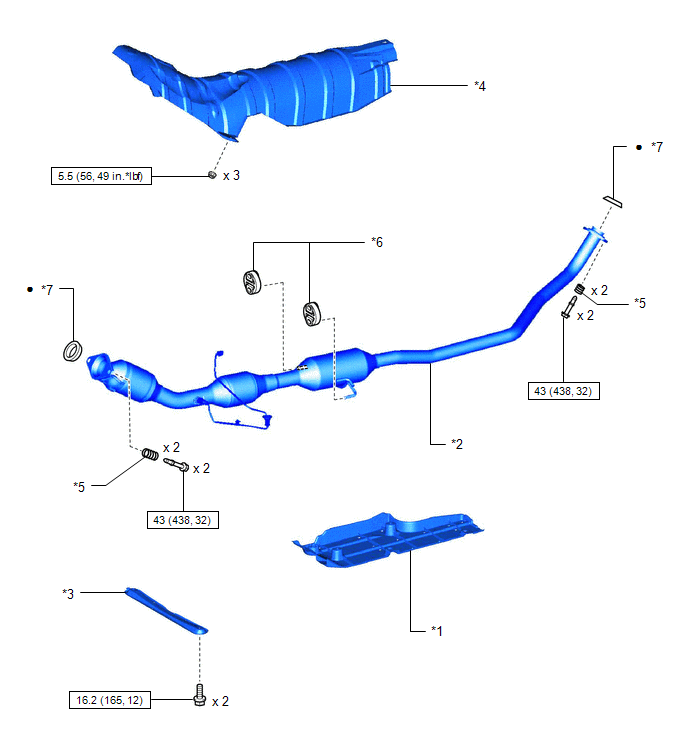

| Callout | Description | Callout | Description |
| *1 | FRONT CENTER FLOOR COVER LH | *2 | FRONT EXHAUST PIPE ASSEMBLY (TWC: Front and Rear Catalyst) |
| *3 | FRONT FLOOR UNDER REINFORCEMENT REAR | *4 | FRONT NO. 1 FLOOR HEAT INSULATOR |
| *5 | COMPRESSION SPRING | *6 | EXHAUST PIPE SUPPORT |
| *7 | GASKET | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
