System Diagram [08/2013 - 08/2016]

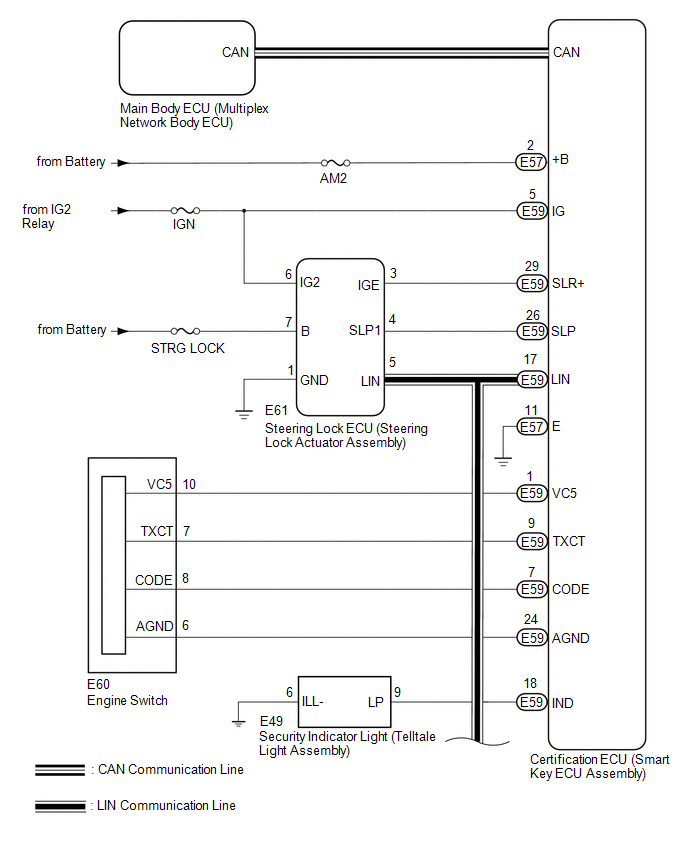

Fig 1: Immobilizer System (w/ Smart Key System) Circuit Diagram (1 Of 2)
GTY426063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

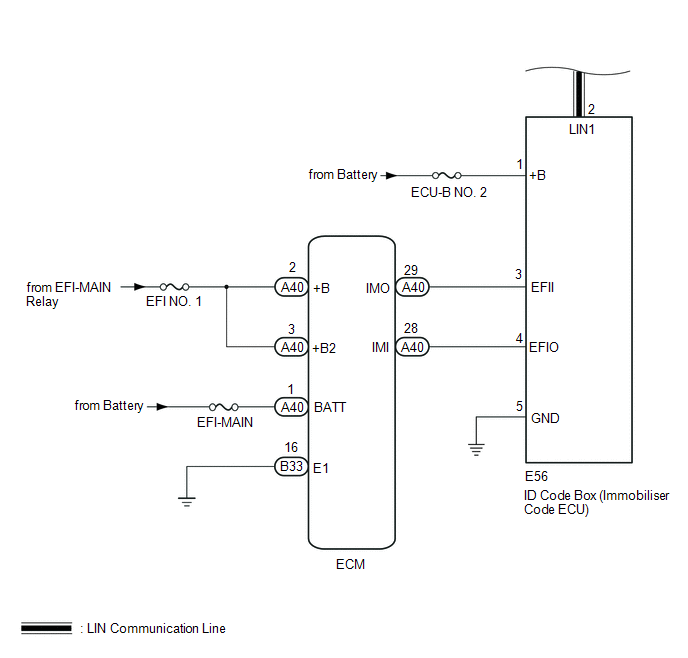

Fig 2: Immobilizer System (w/ Smart Key System) Circuit Diagram (2 Of 2)
GTY438670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
