Air Conditioning Amplifier Communication Stop Mode [08/2013 - 08/2016]: Procedure

  1. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Automatic air conditioning system A
      w/ Manual air conditioning system B

    Result:

    B

    See step  4

    Result:

    A

    See step  2

  2. CHECK FOR OPEN IN CAN BUS LINES (AIR CONDITIONING AMPLIFIER ASSEMBLY BRANCH LINE)
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Disconnect the E37 air conditioning amplifier assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

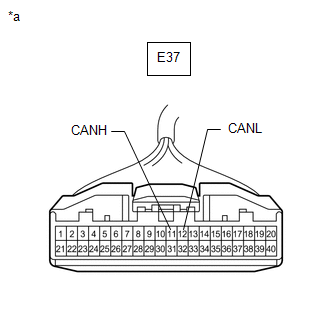

      GTY433517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Air Conditioning Amplifier Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      E37-11 (CANH) - E37-12 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY)

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.

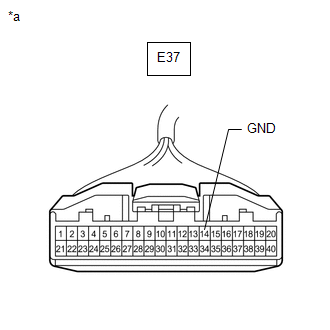

      GTY433516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Air Conditioning Amplifier Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      E37-14 (GND) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω
    2. Reconnect the cable to the negative (-) battery terminal.
    3. Measure the voltage according to the value(s) in the table below.

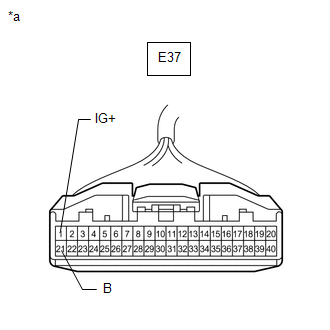

      GTY433518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Air Conditioning Amplifier Assembly)

      Standard Voltage

      Tester Connection Condition Specified Condition
      E37-1 (IG+) - Body ground Ignition switch ON 11 to 14 V
      E37-21 (B) - Body ground Always 11 to 14 V

    Result:

    OK

    REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY. Refer to  REMOVAL [08/2013 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

  4. CHECK FOR OPEN IN CAN BUS LINES (AIR CONDITIONING AMPLIFIER ASSEMBLY BRANCH LINE)
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Disconnect the E7 air conditioning amplifier assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

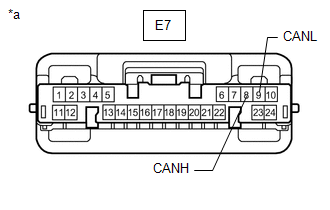

      GTY427855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Air Conditioning Amplifier Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      E7-8 (CANH) - E7-9 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY)

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.

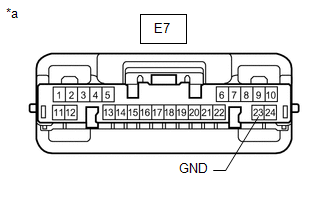

      GTY427856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Air Conditioning Amplifier Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      E7-23 (GND) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω
    2. Reconnect the cable to the negative (-) battery terminal.
    3. Measure the voltage according to the value(s) in the table below.

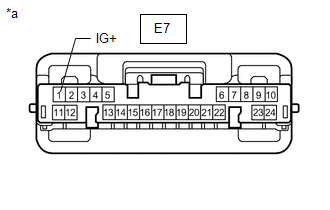

      GTY427857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Air Conditioning Amplifier Assembly)

      Standard Voltage

      Tester Connection Condition Specified Condition
      E7-1 (IG+) - Body ground Ignition switch ON 11 to 14 V

    Result:

    OK

    REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY. Refer to  REMOVAL [08/2013 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
