DTC Check / Clear [08/2014 - ]

CHECK DTC (Using Techstream)
1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Chassis / VGRS / Trouble Codes.
5. Read the DTCs.
CLEAR DTC (Using Techstream)
1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG) (do not start the engine).
3. Turn the Techstream on.
4. Enter the following menus: Chassis / VGRS / Trouble Codes.
5. Clear the DTCs.
CHECK DTC (Using SST Check Wire)

Fig 1: Identifying DLC3 Connector Terminals (CG) (TC)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The master warning light comes on in diagnostic mode.
1. Using SST check wire, connect terminals 13 (TC) and 4 (CG) of the DLC3.
  - SST: 09843-18040
2. Turn the engine switch on (IG).
3. "DIAG VGRS" is displayed on the multi-information display and the system starts searching for a malfunction.

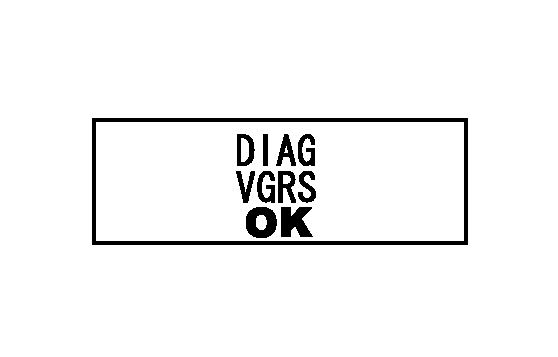

4. If the system is normal, "DIAG VGRS OK" is displayed.

  Fig 2: Identifying DIAG VGRS OK Is Displayed
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

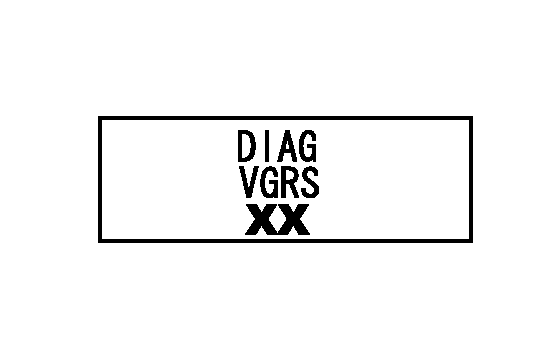

5. If the system has a malfunction, "DIAG VGRS xx" is displayed ("xx" is a 2-digit DTC).

  Fig 3: Identifying DIAG VGRS xx Is Displayed
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CLEAR DTC (Using SST Check Wire)

Fig 4: Identifying DLC3 Connector Terminals (CG) (TC)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Turn the engine switch on (IG).
2. Using SST check wire, connect and disconnect terminals 13 (TC) and 4 (CG) of the DLC3 4 times within 8 seconds.
  - SST: 09843-18040
3. Disconnect SST check wire from the DLC3.
  NOTE:
  As the stored yaw rate and G sensor value will be cleared by the above operation, it is necessary to obtain the yaw rate and G sensor zero point.
4. Turn the engine switch off.
  HINT:

  If the problem still exists, DTCs may not be cleared.
5. Obtain the yaw rate and G sensor zero point. Refer to CALIBRATION [08/2014 - ] .
