System Description [08/2014 - ]

• Video CD
• DVD+R
• DVD+RW
• DVD-RAM

1. This player can play only audio CDs, CD-Rs (CD-Recordable) and CD-RWs (CD-ReWritable) that have any of the following marks:
   Fig 2: View Of Disc Marks

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• When it is cold or it is raining, if the windows mist up, mist and condensation may form in the player. In such cases, the CD sound may skip or stop in the middle of play. Ventilate or dehumidify the cabin for a while before using the player.
• The CD sound may skip if the player experiences strong vibrations when the vehicle is driven on rough roads or similar uneven surfaces.

Fig 3: View Of Disc Surface Cleaning Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. If dirt is on the disc surface, wipe it clean with a soft dry cloth such as an eyeglass cleaner for plastic lenses from the inside to the outside in a radial direction.
   NOTE:

   • Pressing on the disc by hand or rubbing the disc with a hard cloth may scratch the disc surface.
   • Use of solvents such as record spray, antistatic agents, alcohol, benzine, thinners or a chemical cloth may cause damage to the disc, making the disc unusable.

1. Additional text information called an ID3 tag can be input to MP3 files. Information such as song titles and artist names can be stored.

   HINT:

   This player is compatible with ID3 tags of ID3 Ver. 1.0 and 1.1, and ID3 Ver. 2.2 and 2.3 (Number of characters complies with ID3 Ver. 1.0 and 1.1.).

2. Additional text information called a WMA tag can be input to WMA files. Information such as song titles and artist names can be stored.

1. Only CD-ROMs, CD-Rs (CD-Recordable) and CD-RWs (CD-ReWritable) can be used to play MP3/WMA files.
   NOTE:

   • CD-Rs and CD-RWs are more easily affected by a hot and humid environment than discs used for normal audio CDs. For this reason, some CD-Rs and CD-RWs do not play.
   • If there are fingerprints or scratches on a disc, the disc may not play or the CD sound may skip.
   • Some CD-Rs and CD-RWs may deteriorate if they are left in the cabin for a long time.
   • Keep CD-Rs and CD-RWs in an opaque case.

1. Usable media format

   Disc format	CD-ROM Mode 1, CD-ROM XA Mode 2 Form1
   File format	ISO9660 Level 1 and Level 2 (Joliet, Romeo)

   HINT:

   • As for MP3/WMA files written in any unlisted format, the contents of the files may not be played normally or the file names or folder names may not be displayed correctly.
   • This player is compatible with multi-session discs and can play CD-Rs and CD-RWs on which MP3/WMA files have been added. However, only the first session can be played.
   • Discs whose first session includes both music data and MP3 or WMA format data cannot be played.
2. Standards and restrictions

   Maximum directory levels	8 levels
   Maximum number of characters for a folder name/file name	32 characters
   Maximum number of folders	192 (Including empty folders, root folders, and folders that do not contain MP3/WMA files)
   Maximum number of files in a disc	255 (Including non-MP3/WMA files)

1. Only files with an extension of ".mp3" or ".wma" can be recognized and played as MP3 or WMA files.
2. Save MP3 or WMA files with an extension of ".mp3" or ".wma".
   NOTE:

   If non-MP3 or non-WMA files are saved with an extension of ".mp3" or ".wma", those files may be wrongly recognized as MP3 or WMA files and played. A loud noise may occur and damage to the speakers may result.

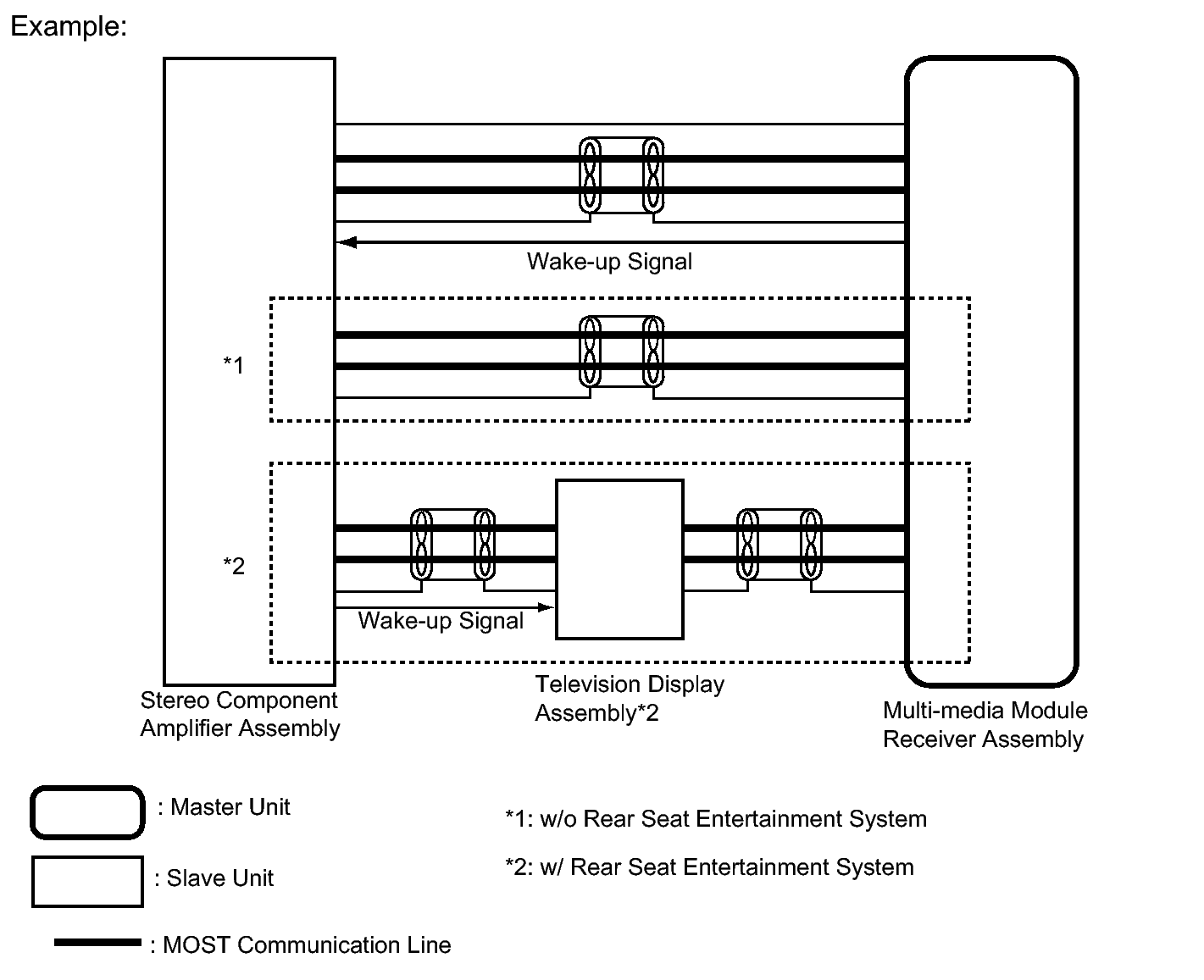

Fig 4: Network Outline System

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Audio and visual system components communicate with each other via the MOST network.
2. The MOST network uses a shielded twisted pair of wires for its communication lines.
3. The master unit of the MOST network is the multi-media module receiver assembly.
4. MOST communication lines connect each slave unit centering around the master unit to form a MOST network ring.
5. The master unit sends a wake-up signal to activate each slave unit connected to the MOST network.

   HINT:

   If a short or open circuit occurs in the MOST circuit, communication will be interrupted and the system will not operate normally.

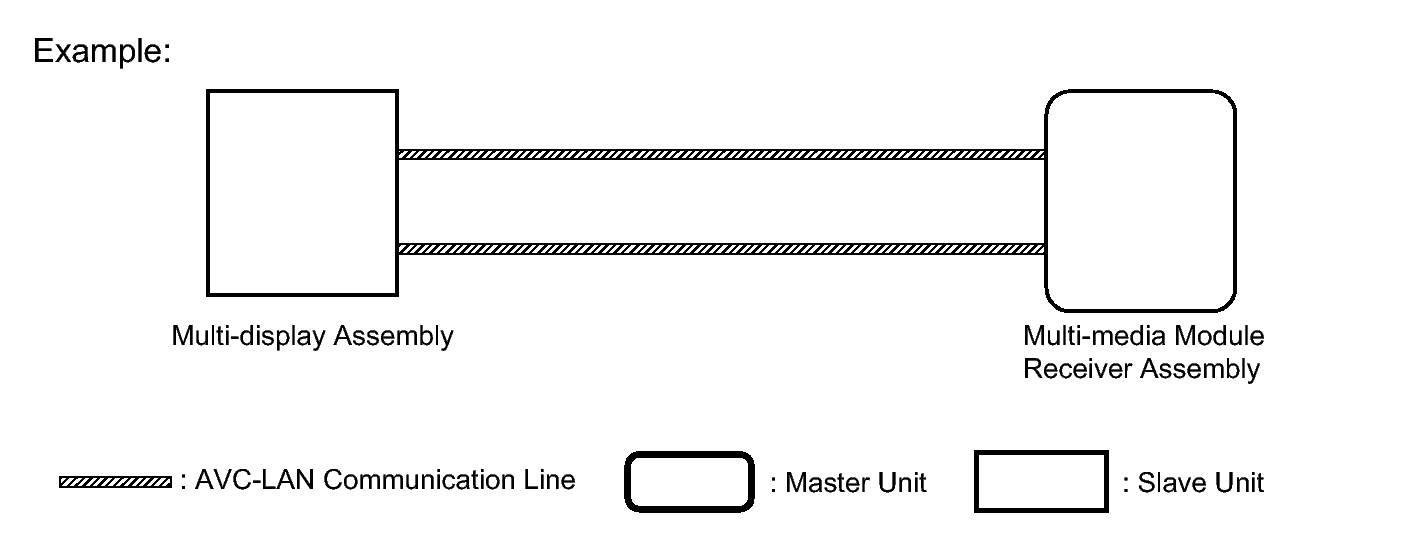

Fig 5: AVC-Lan Outline System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Components of the audio and visual system communicate with each other via the AVC-LAN.
2. The AVC-LAN uses a twisted pair of wires for its communication lines.
3. The master unit of the AVC-LAN is the multi-media module receiver assembly.

   HINT:

   • The multi-media module receiver assembly has the resistance (60 to 80 Ω) necessary for communication.
   • If a short or open circuit occurs in the AVC-LAN circuit, communication is interrupted and the system will not operate normally.

HINT:

The communication performance of "Bluetooth" may vary depending on obstructions or radio wave conditions between communication devices, electromagnetic radiation, communication device sensitivity or antenna capacity.

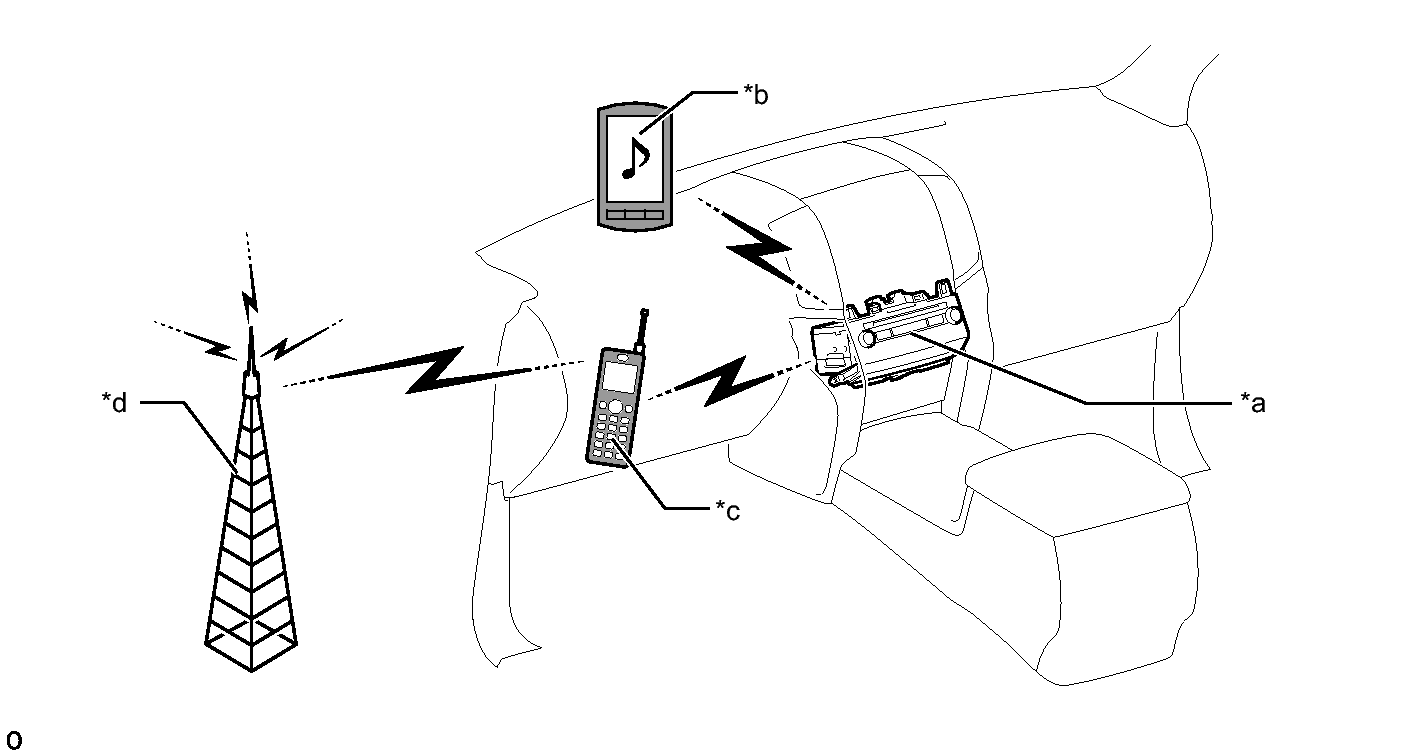

Fig 6: Identifying "Bluetooth" Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. The "Bluetooth" built-in multi-media module receiver assembly and a "Bluetooth" compatible cellular phone* can be connected using a "Bluetooth" wireless connection. This enables the use of the hands-free function on the cellular phone even if the phone is in a pocket or bag. For this reason, it is not necessary to use a connector or cable to connect the cellular phone.

   *: Some versions of "Bluetooth" compatible cellular phones may not function.

2. Compatible hands-free devices

   Required "Bluetooth" specifications	Ver. 1.1 or higher (Ver. 2.1+EDR or higher recommended)
   Compatible profiles	HFP (Hands Free Profile) Ver.1.0 or higher (Ver.1.5 or higher recommended)*1 OPP (Object Push Profile) Ver.1.1 or higher*1 PBAP (Phone Book Access Profile) Ver.1.0 or higher*1 MAP (Message Access Profile) Ver.1.0 or higher*2 SPP (Serial Port Profile) Ver.1.1 or higher*3
   Maximum number of hands-free devices that can be registered (including audio devices)	5

   • *1: This profile is necessary when using the hands-free function.
   • *2: This profile is necessary when using the message function.
   • *3: This profile is necessary when using the entune function.

   HINT:

   The amount of remaining battery charge displayed on the multi-media module receiver assembly may be different from that of the "Bluetooth" device.

1. The "Bluetooth" built-in multi-media module receiver assembly and a "Bluetooth" compatible portable audio player* can be connected using a "Bluetooth" wireless connection. This enables files stored in the portable audio player to be heard from the vehicle speakers. In addition, operations such as play/stop can be performed directly from the multi-media module receiver assembly.

   *: Some versions of "Bluetooth" compatible audio players may not be able to operate the "Bluetooth" function, or music may play, but functions available using the multi-media module receiver assembly may be limited.

2. Compatible "Bluetooth" audio devices

   "Bluetooth" specifications	Ver. 1.1 or higher (Ver. 2.1+EDR or higher recommended)
   Following profiles	A2DP (Advanced Audio Distribution Profile) Ver. 1.0 or higher (Ver. 1.2 or higher recommended) AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (Ver. 1.4 or higher recommended)
   Maximum number of audio devices that can be registered	5

   HINT:

   The amount of remaining battery charge displayed on the multi-media module receiver assembly may be different from that of the portable player.

HINT:

• Visual contents of an "iPod" cannot be played.
• Operation through the controls of a USB device or "iPod" cannot be performed while it is connected.

1. USB device

   The following device formats can be used:

   Compatible USB device formats

   USB communication format: USB 2.0 HS (480 Mbps) and FS (12 Mbps) File format: FAT16/32 (Windows) Class: Mass storage class

   MP3 and WMA files written in any format other than those listed above may not play correctly, and their file and folder names may not be displayed correctly.

   Items related to standards and limitations are as follows:

   • Maximum directory hierarchy: 8 levels
   • Maximum number of folders in device: 3000 (including the root folder)
   • Maximum number of files in device: 9999
   • Maximum number of files per folder: 255
2. "iPod"

   "iPhone", "iPod", "iPod classic", "iPod nano" and "iPod touch" are trademarks of Apple Inc., registered in the U.S. and other countries.

   The following "iPod", "iPod nano", "iPod classic", "iPod touch" and "iPhone" devices can be used with this system.

   Made for

   • "iPod touch" (4th generation)
   • "iPod touch" (3rd generation)
   • "iPod touch" (2nd generation)
   • "iPod touch" (1st generation)
   • "iPod classic"
   • "iPod with video"
   • "iPod nano" (6th generation)
   • "iPod nano" (5th generation)
   • "iPod nano" (4th generation)
   • "iPod nano" (3rd generation)
   • "iPod nano" (2nd generation)
   • "iPod nano" (1st generation)
   • "iPhone 4"
   • "iPhone 3GS"
   • "iPhone 3G"
   • "iPhone"

   HINT:

   Depending on differences between models or software versions etc., some models might be incompatible with this system.

1. Radio broadcasts use the radio frequency bands shown in the table below.
   Fig 7: Radio Frequency Bands Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. The service areas of AM and FM broadcasts are vastly different. Sometimes an AM broadcast can be received very clearly but an FM stereo broadcast cannot. FM stereo has the smallest service area, and is prone to pick up static and other types of interference such as noise.
   Fig 8: Service Areas of AM and FM Broadcasts Are Vastly Different

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a	FM (Stereo)
   *b	FM (Monaural)
   *c	AM

HINT:

In addition to static, other problems such as "phasing", "multipath" and "fade out" exist. These problems are not caused by electrical noise, but by the radio signal propagation method itself.

1. Phasing

   AM broadcasts are susceptible to electrical interference and another kind of interference called phasing. Occurring only at night, phasing is the interference created when a vehicle receives 2 radio wave signals from the same transmitter. One signal is reflected off the ionosphere and the other signal is received directly from the transmitter.

   Fig 9: Radio Signal Phasing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a	Phasing
   *b	Ionosphere

2. Multipath

   Multipath is a type of interference created when a vehicle receives 2 radio wave signals from the same transmitter. One signal is reflected off buildings or mountains and the other signal is received directly from the transmitter.

   Fig 10: Radio Signal Multipath

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a

   Multipath

3. Fade out

   Fade out is caused by objects (buildings, mountains and other such large obstacles) that deflect away part of a signal, resulting in a weaker signal when the object is between the transmitter and vehicle. High frequency radio waves, such as FM broadcasts, are easily deflected by obstructions. Low frequency radio waves, such as AM broadcasts, are less likely to deflect.

   Fig 11: Radio Signal Fade Out

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a

   Fade Out

Technicians must have a clear understanding about each customer's noise complaint. Use the following table to diagnose noise problems.

"HD Radio" Technology manufactured under license from iBiquity Digital Corporation. U.S. and Foreign Patents. "HD Radio" and the HD and HD Radio logos are proprietary trademarks of iBiquity Digital Corporation.

The information for the music currently being listened to is stored in the system and transmitted to the "iPod" connected to the system. The information transferred to the "iPod" can be used for purchasing the music through "iTunes" music store.

1. XM data broadcast service is a service*1 that allows the vehicle to receive information from the XM radio satellite and links the information to the navigation system. XM data broadcast service permits the driver to use the received information, such as weather information, sports news, fuel price information and stock information on the navigation system multi-display. The equipment for receiving this service is installed as standard.*2

   XM data broadcast service provides the following services: XM NavTraffic, XM NavWeather, XM Fuels Prices, XM Stocks and XM Sports.

   • *1: XM data broadcast service is a service available in the continental U.S., excluding Alaska and Hawaii. In addition, Canada, Mexico and unincorporated territories of the U.S. such as Puerto Rico are not included in the service area.
   • *2: The XM NavTraffic, XM NavWeather and XM Fuel Prices require separate subscriptions to receive their services. XM Stocks and XM Sports are included with the XM Radio subscription.

1. Component	Outline
   Multi-media module receiver assembly	Receives the XM satellite radio information signals from the XM tuner built into the multi-media module receiver assembly (distributed from the broadcast such as content information, stock price information, sports related news and weather information).
   SDARS (Satellite Radio Antenna)	Receives XM satellite radio signal.

1. Service	Function
   XM NavTraffic	Displays traffic congestion information using icons, arrows and indicators on the navigation map according to the traffic information received via XM satellite radio.
   XM NavWeather	Displays weather information received via XM satellite radio. A warning message is displayed on the screen once every 2 hours. The warning indicator displayed on the screen is updated every 15 minutes. Displays weather forecasts for 3 days when a city icon on the map is pressed or when the city name is selected from the list on the screen.
   XM Stocks	Displays stock price information received via XM satellite radio. Displays up to 10 user registered stock symbols and their price information.
   XM Sports	Displays sports related news received via XM satellite radio. Allows the user to register up to 5 teams.
   XM Fuel Prices	Displays the location of gas stations and fuel prices via XM satellite radio.

HINT:

• Items available for customization via the navigation system can be performed by using the Techstream.
• Some customize parameters displayed on the Techstream will be displayed on the "Vehicle Customization" screen for the navigation system. Users can customize these items.
