Engine Room Relay Block Assembly And Engine Room Junction Block Assembly Inner Circuit

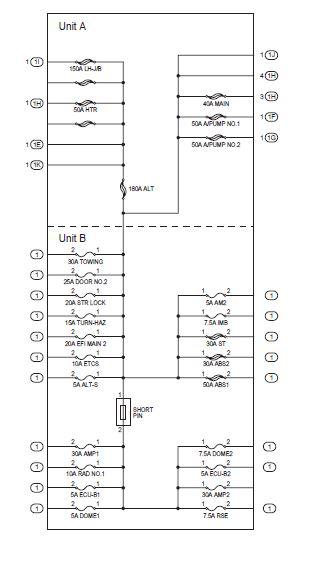

Fig 1: Engine Room Relay Block & Junction Block Assembly Inner Circuit Unit A

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

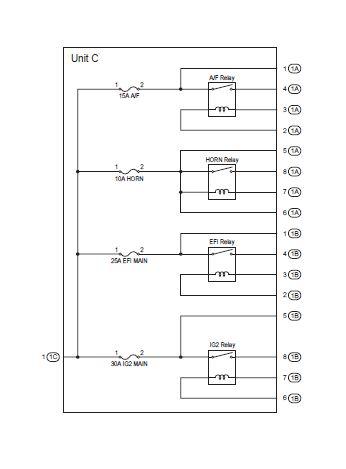

Fig 2: Engine Room Relay Block & Junction Block Assembly Inner Circuit Unit C

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Engine Room R/B And J/B Inner Circuit Relay Identification

RELAY DESCRIPTION
A/F Relay
HORN Relay
EFI Relay
IG2 Relay
