Engine Room Relay Block Assembly And Engine Room Junction Block Assembly: Front Fender Apron LH

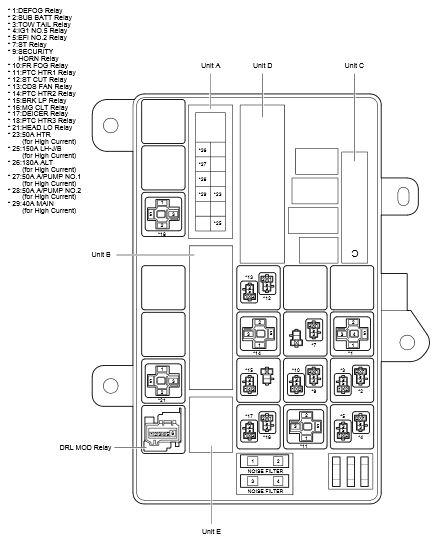

Fig 1: Engine Room J/B And R/B Fuse & Relay Location

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Engine Room J/B And R/B Relay Identification

RELAY DESCRIPTION
DRL MOD Relay

Engine Room J/B And R/B Fuse Identification Legend

Fuse
5A	ALT-S
5A	AM2
5A	DEF NO. 2
5A	ECU-B1
5A	ECU-B2
5A	MET
7.5	DOME2
7.5	EFI NO. 2
7.5	FR FOG
7.5	IMB
7.5	RSE
10A	DOME1
10A	ETCS
10A	HORN
10A	IGN
10A	INJ
10A	RAD NO. 1
15A	A/F
15A	HEAD LH
15A	HEAD LL
15A	HEAD RH
15A	HEAD RL
15A	STOP
15A	TURN-HAZ
20A	EFI MAIN 2
20A	RR S/HTR
20A	STR LOCK
25A	CDS FAN
25A	DOOR NO. 2
25A	EFI MAIN
25A	SEAT-A/C LH
30A	ABS2
30A	AMP1
30A	AMP2
30A	DEFOG
30A	H-LP CLN
30A	ST
30A	TOWING
40A	MAIN
40A	SUB BATT
40A	VGRS
50A	A/PUMP NO. 1
50A	A/PUMP NO. 2
50A	ABS1
50A	HTE
50A	PTC-1
50A	PTC-2
50A	PTC-3
50A	RR A/C
150A	LH-J/B
180A	ALT

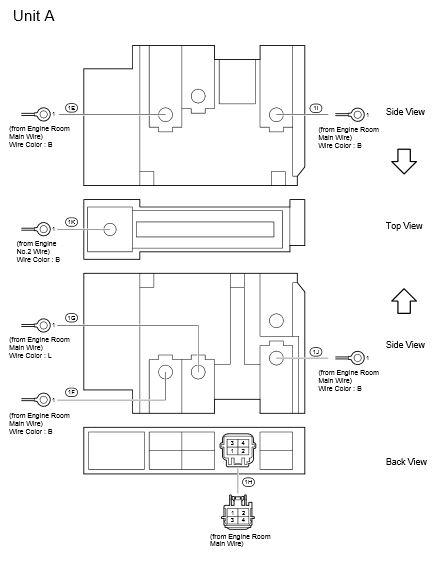

Fig 2: Engine Room J/B And R/B Unit A Views

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

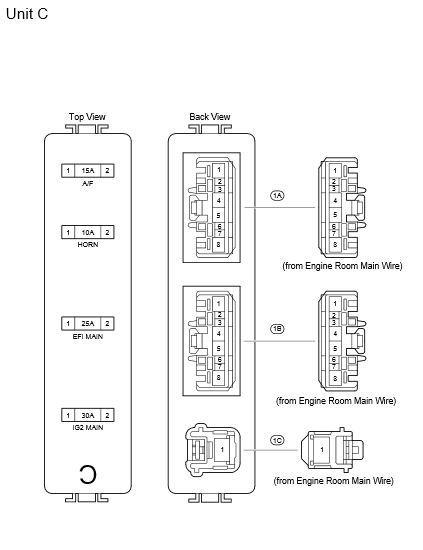

Fig 3: Engine Room J/B And R/B Unit C Views

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

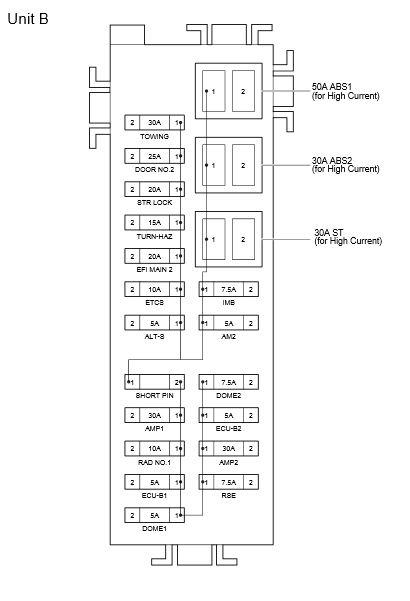

Fig 4: Engine Room J/B And R/B Fuse & Connector Locations Unit B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

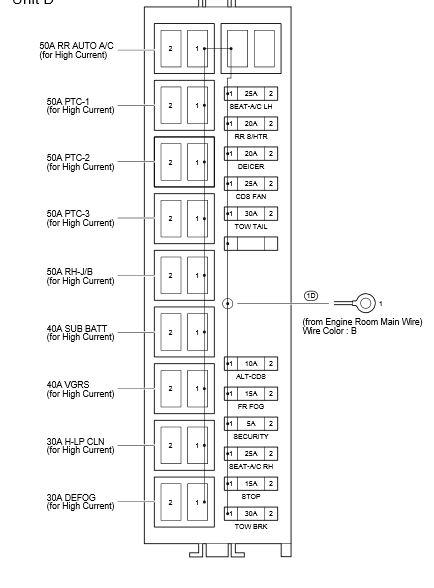

Fig 5: Engine Room J/B And R/B Fuse & Connector Locations Unit D

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

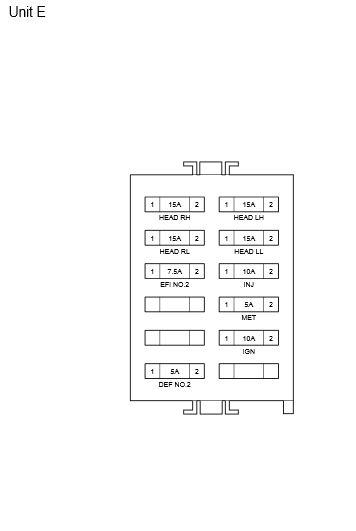

Fig 6: Engine Room J/B And R/B Fuse & Connector Locations Unit E

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
