DTC C1595/55: Lost Communication with Steering Angle Sensor Module; DTC C15C4/68: Steering Angle Signal (Test Mode DTC) [08/2014 - ]: Wiring Diagram

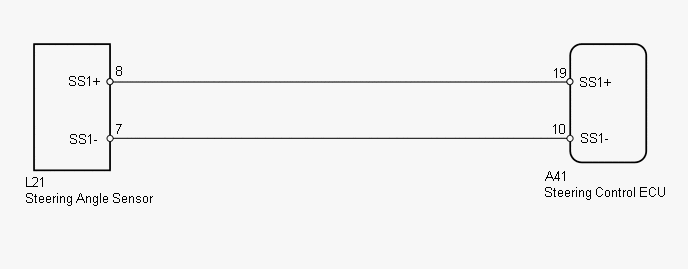

Fig 1: Steering Angle Sensor Module Wiring Diagram
GTY382061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
