System Diagram [12/2014 - ]

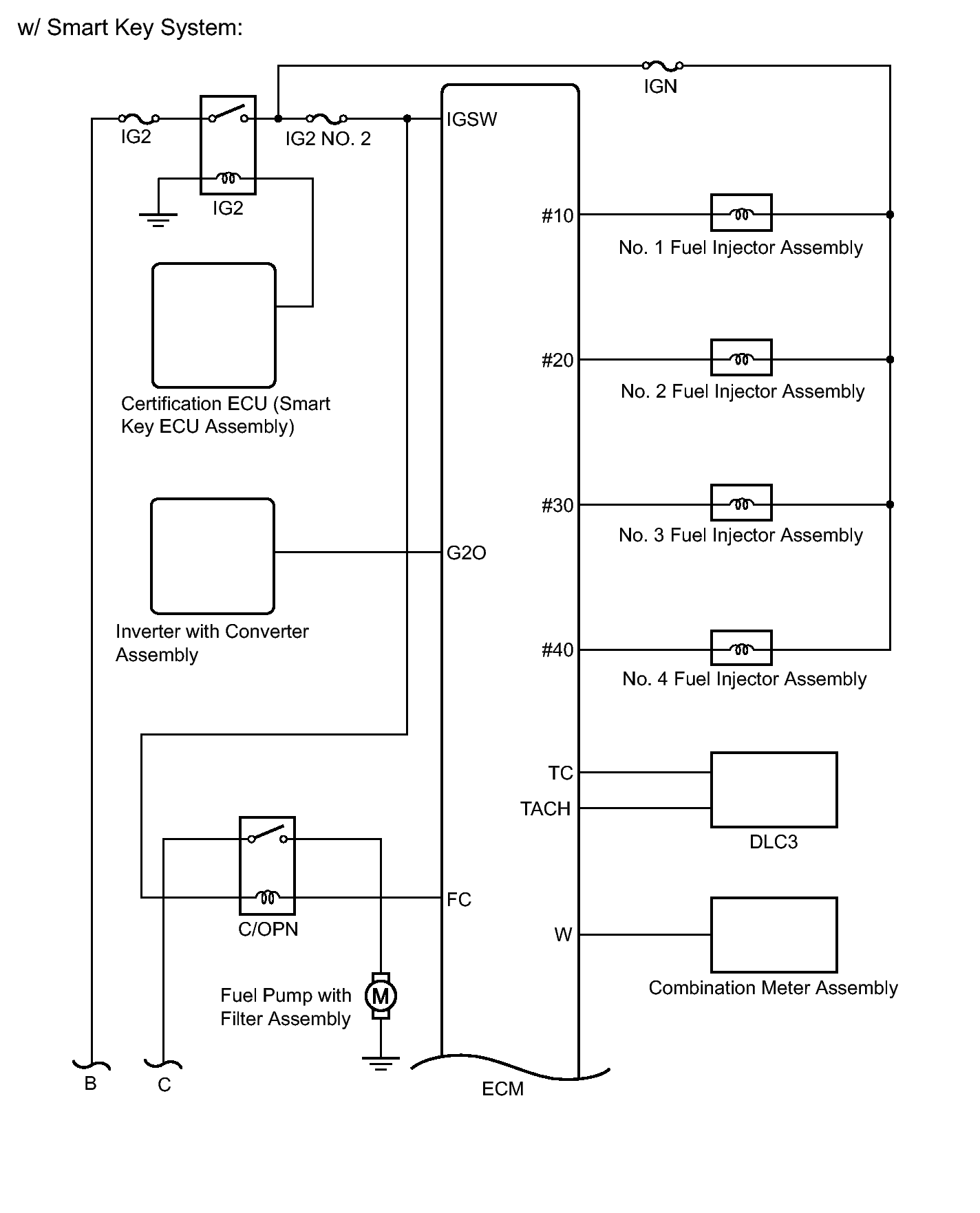

Fig 1: SFI System Wiring Diagram (1 Of 5)
GTY476388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

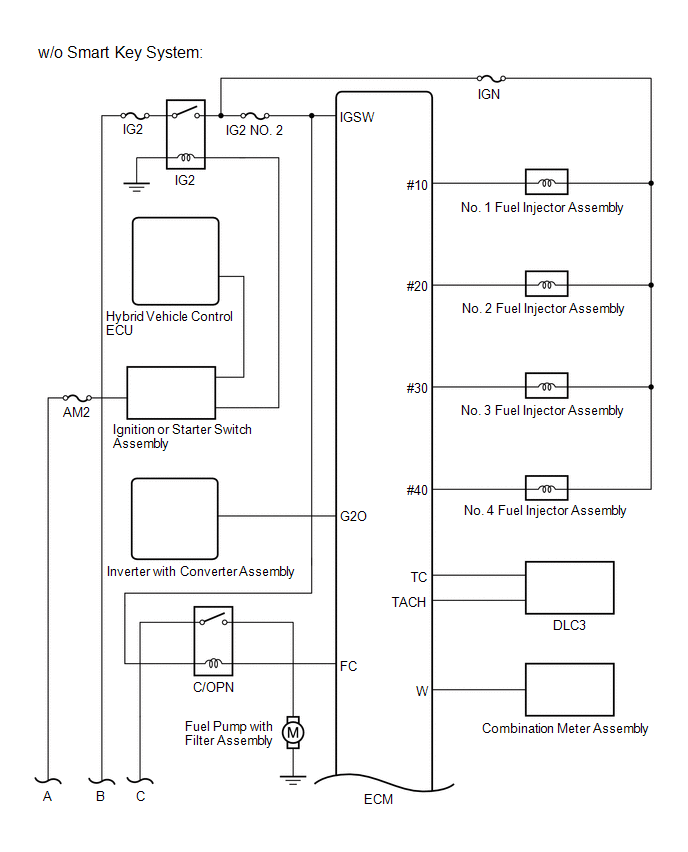

Fig 2: SFI System Wiring Diagram (2 Of 5)
GTY480035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

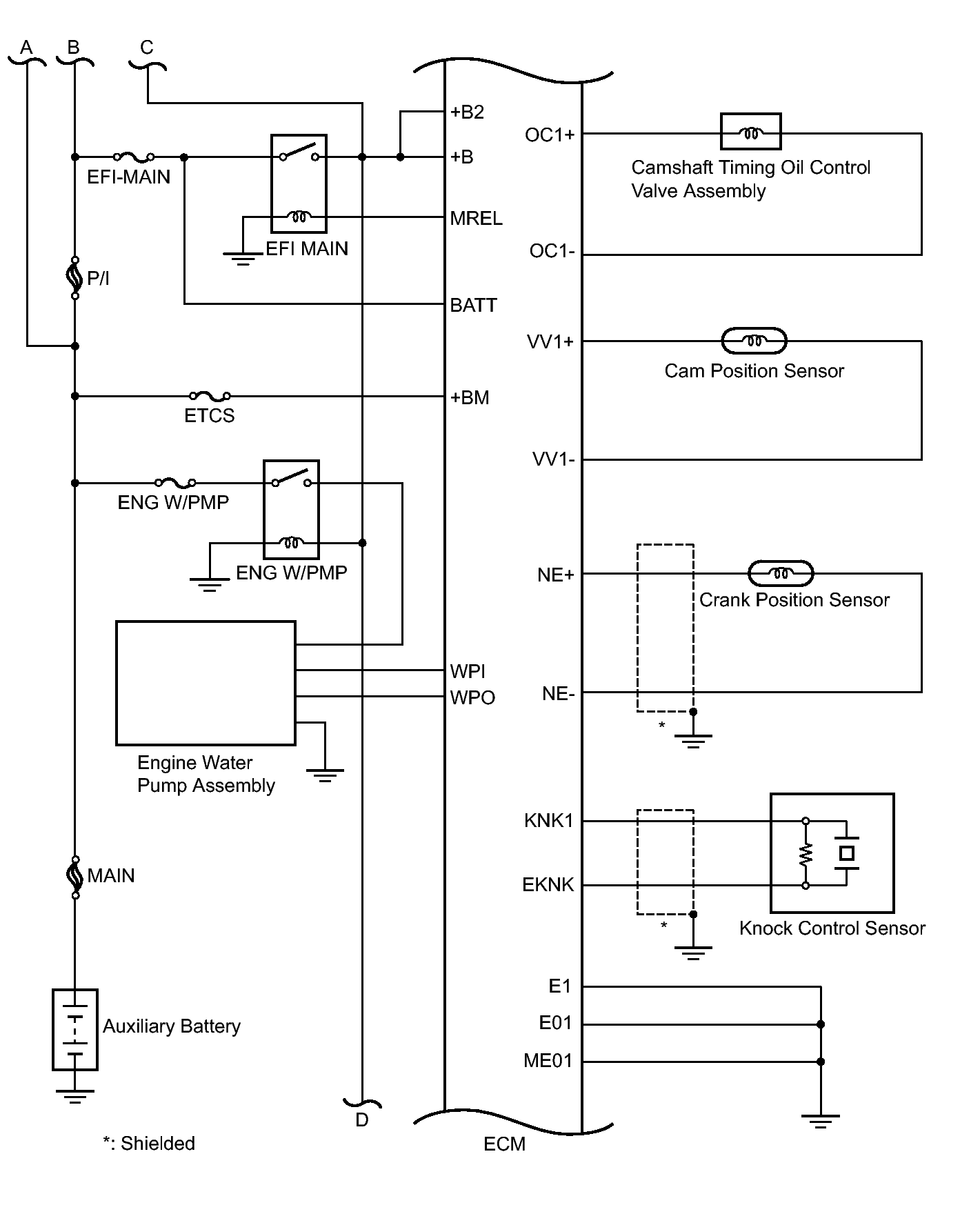

Fig 3: SFI System Wiring Diagram (3 Of 5)
GTY481487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

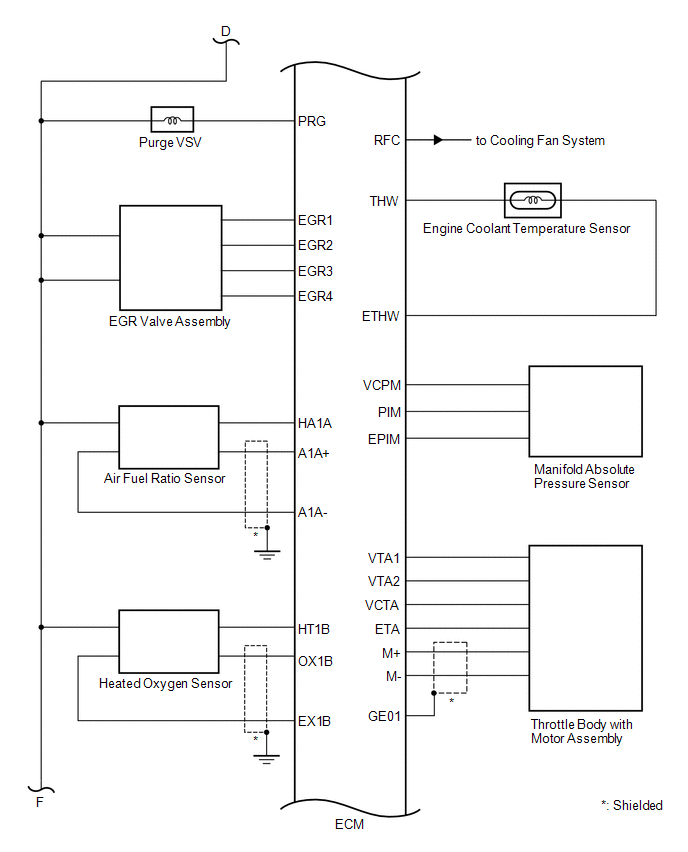

Fig 4: SFI System Wiring Diagram (4 Of 5)
GTY472038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

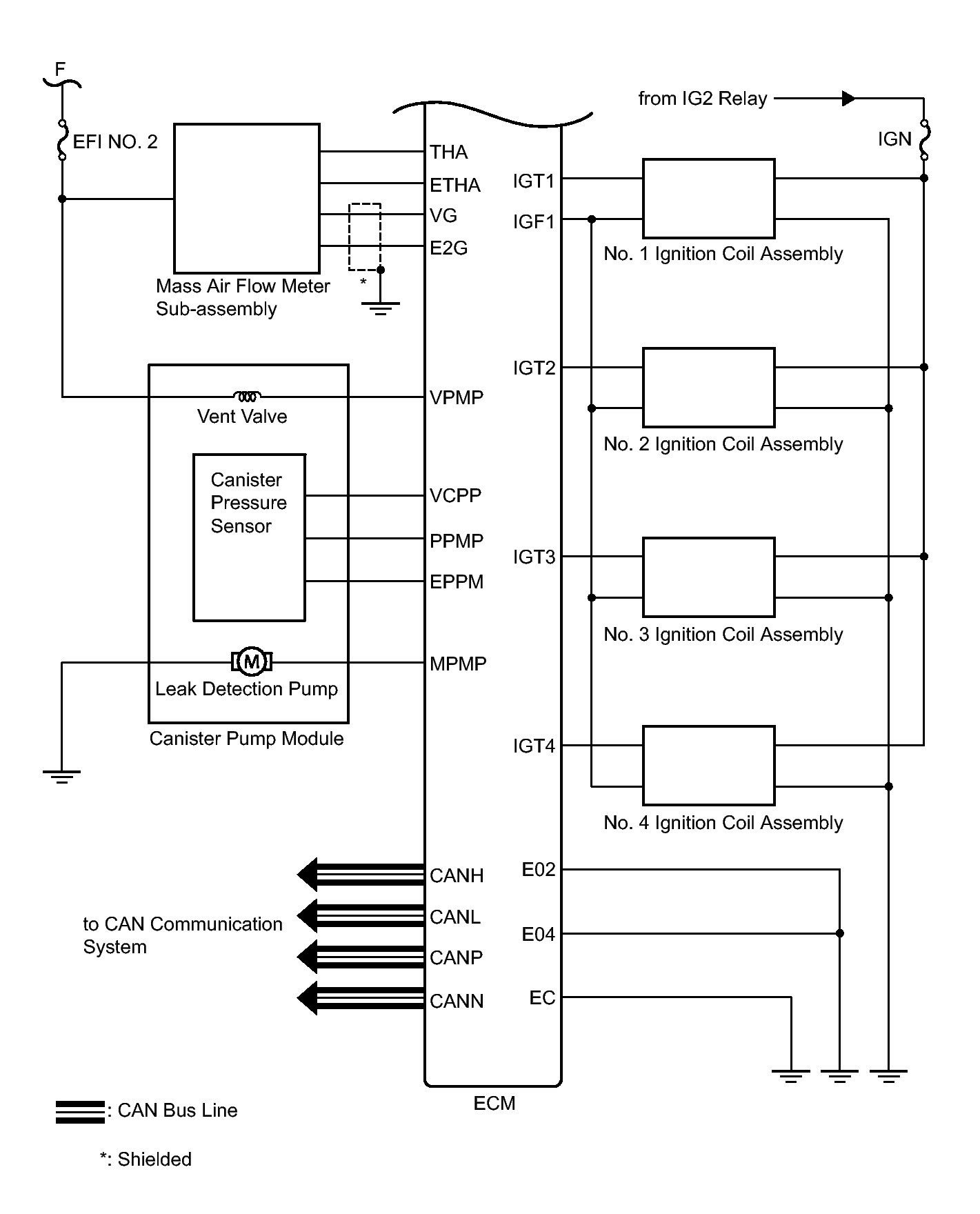

Fig 5: SFI System Wiring Diagram (5 Of 5)
GTY480788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
