DTC P0D53-408: On-Board Charger Output Current Sensor Circuit Low; DTC P0D54-409: On-Board Charger Output Current Sensor Circuit High [08/2014 - ]: Wiring Diagram

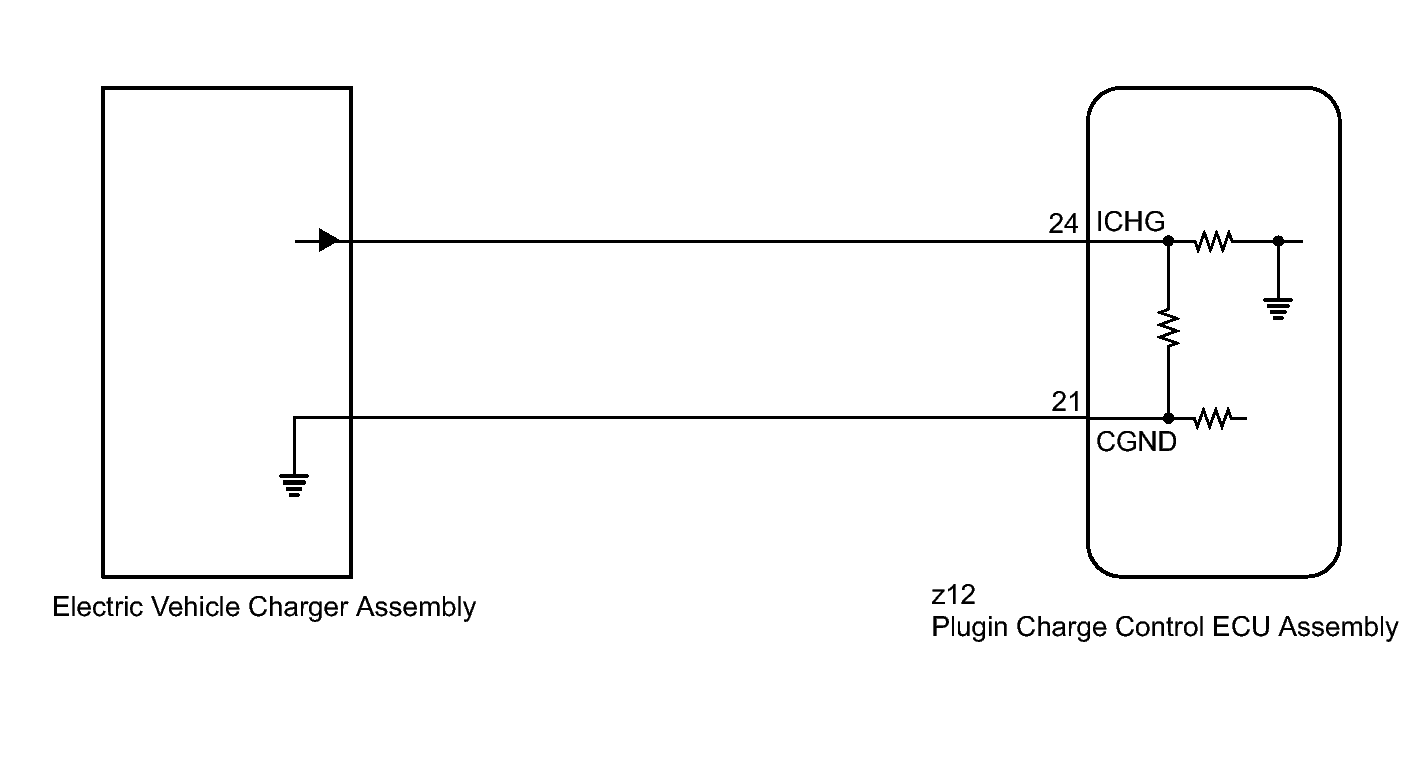

Fig 1: Identifying Plugin Charge Control ECU Assembly Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
