DTC B2312: Power Window Switch Malfunction [08/2014 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

for Driver Side

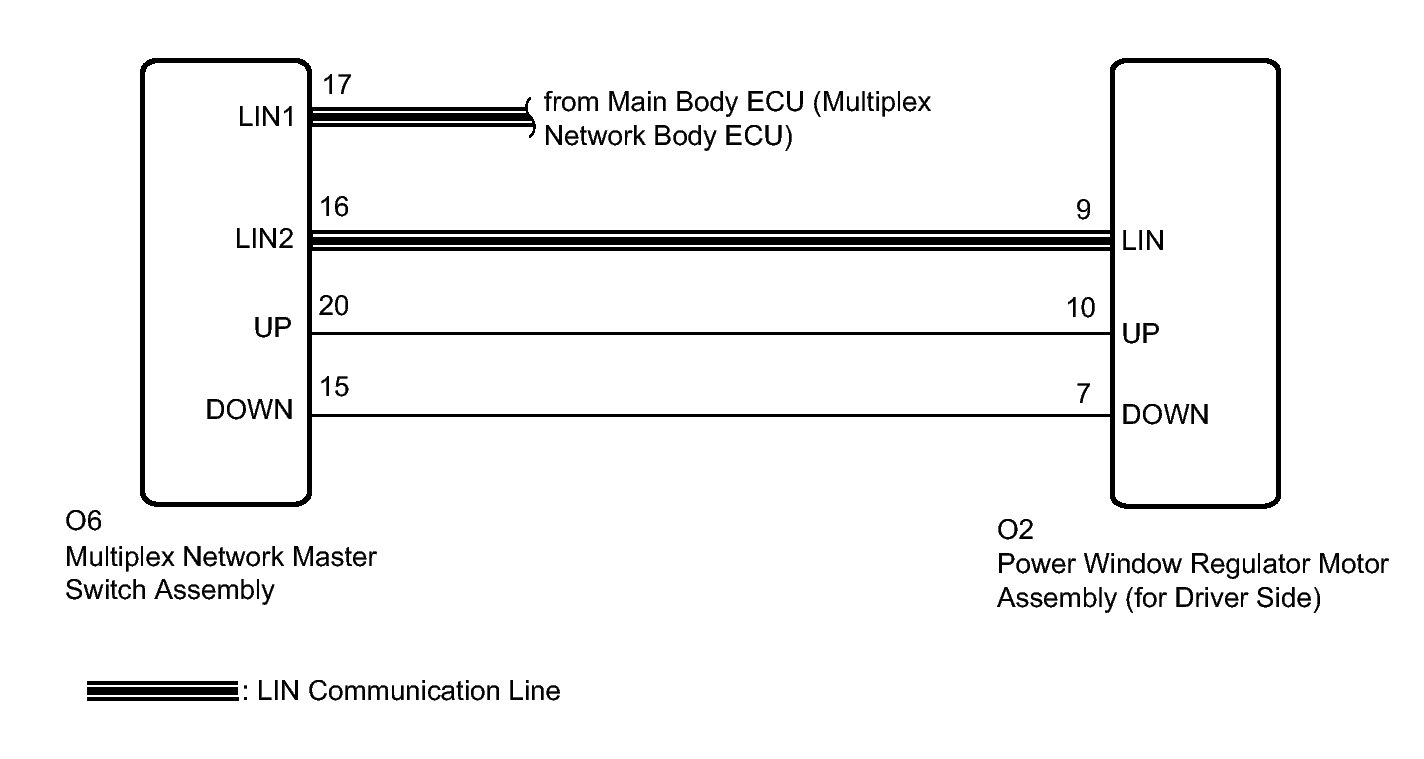

Fig 1: Identifying Multiplex Network Master Switch Assembly Wiring Diagram (For Front LH Side) (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for Front Passenger Side

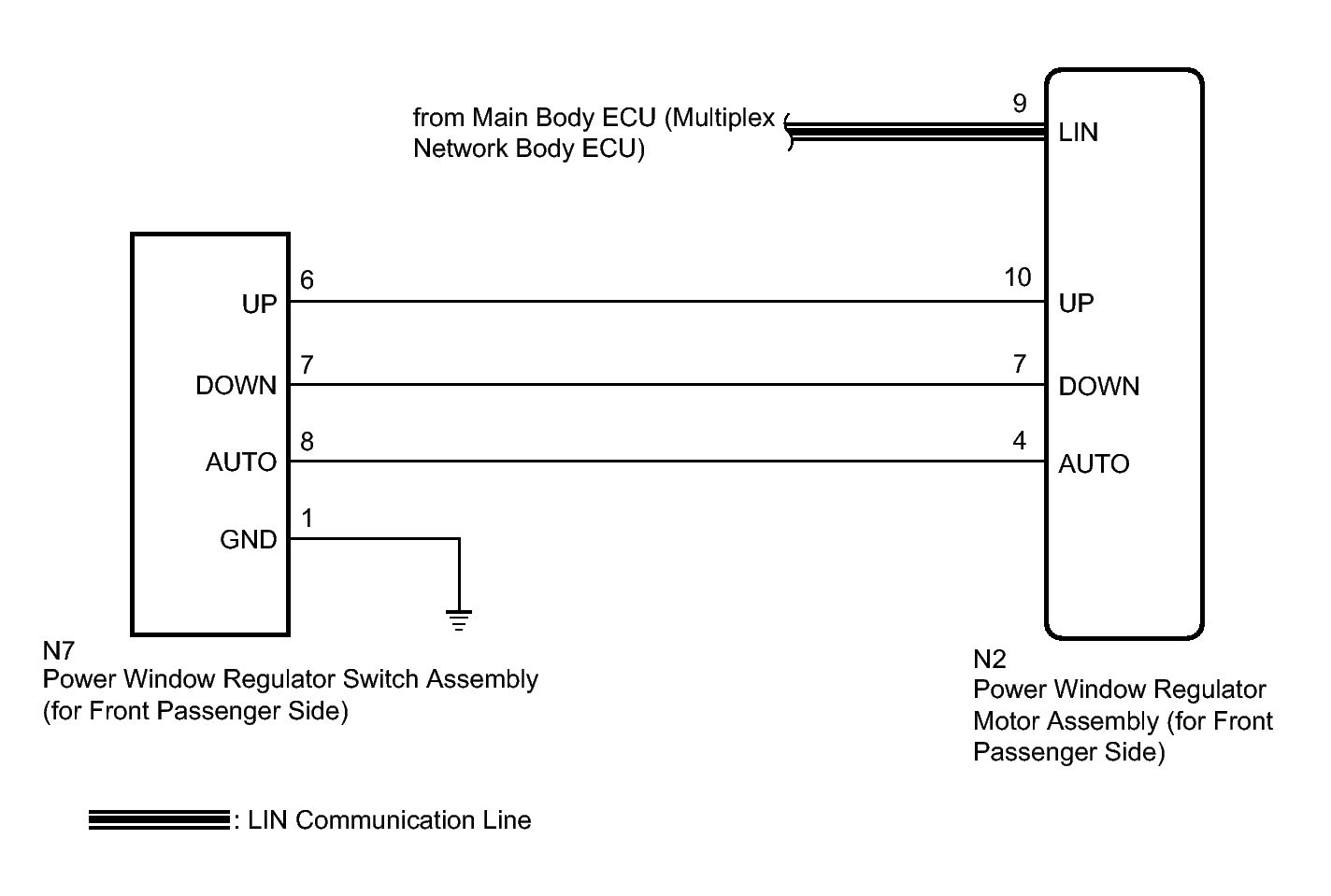

Fig 2: Identifying Multiplex Network Master Switch Assembly Wiring Diagram (For Front RH Side) (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for Rear LH Side

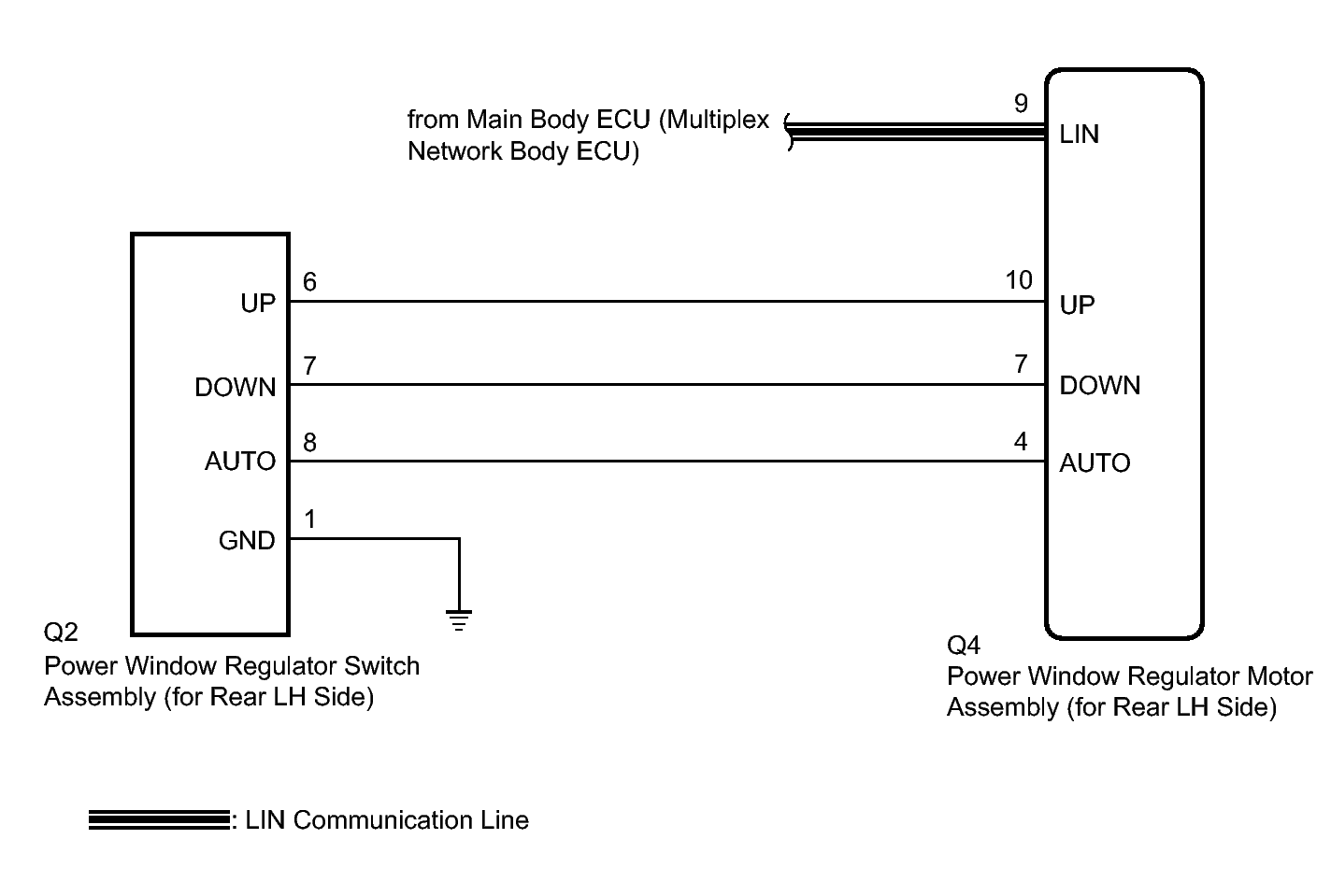

Fig 3: Identifying Multiplex Network Master Switch Assembly Wiring Diagram (For Rear LH Side) (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for Rear RH Side

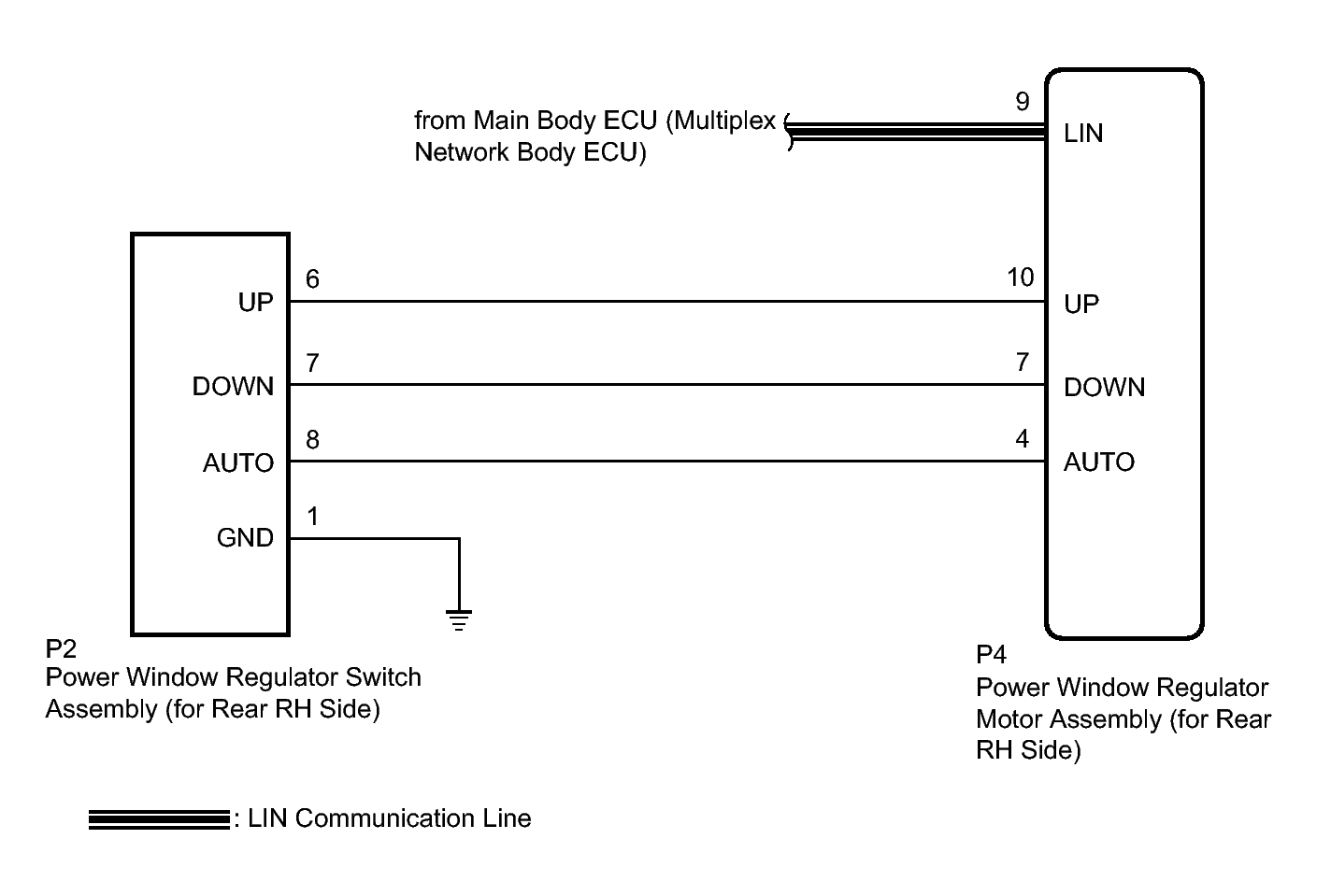

Fig 4: Identifying Multiplex Network Master Switch Assembly Wiring Diagram (For Rear RH Side) (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
