System Diagram [08/2014 - ]

WARNING: This page is about a different variant/trim than selected.

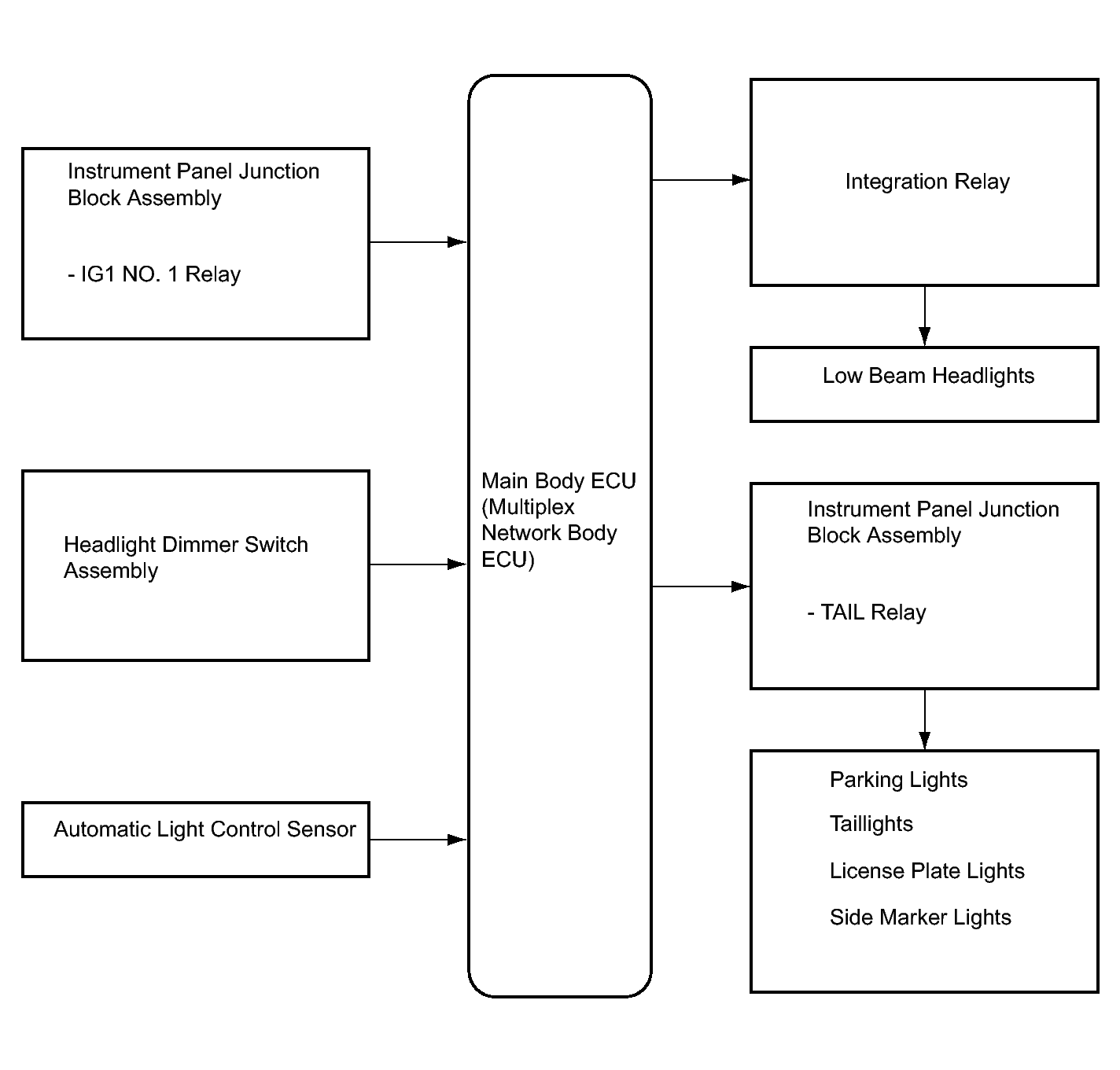

AUTOMATIC LIGHT CONTROL SYSTEM

Fig 1: Identifying Automatic Light Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

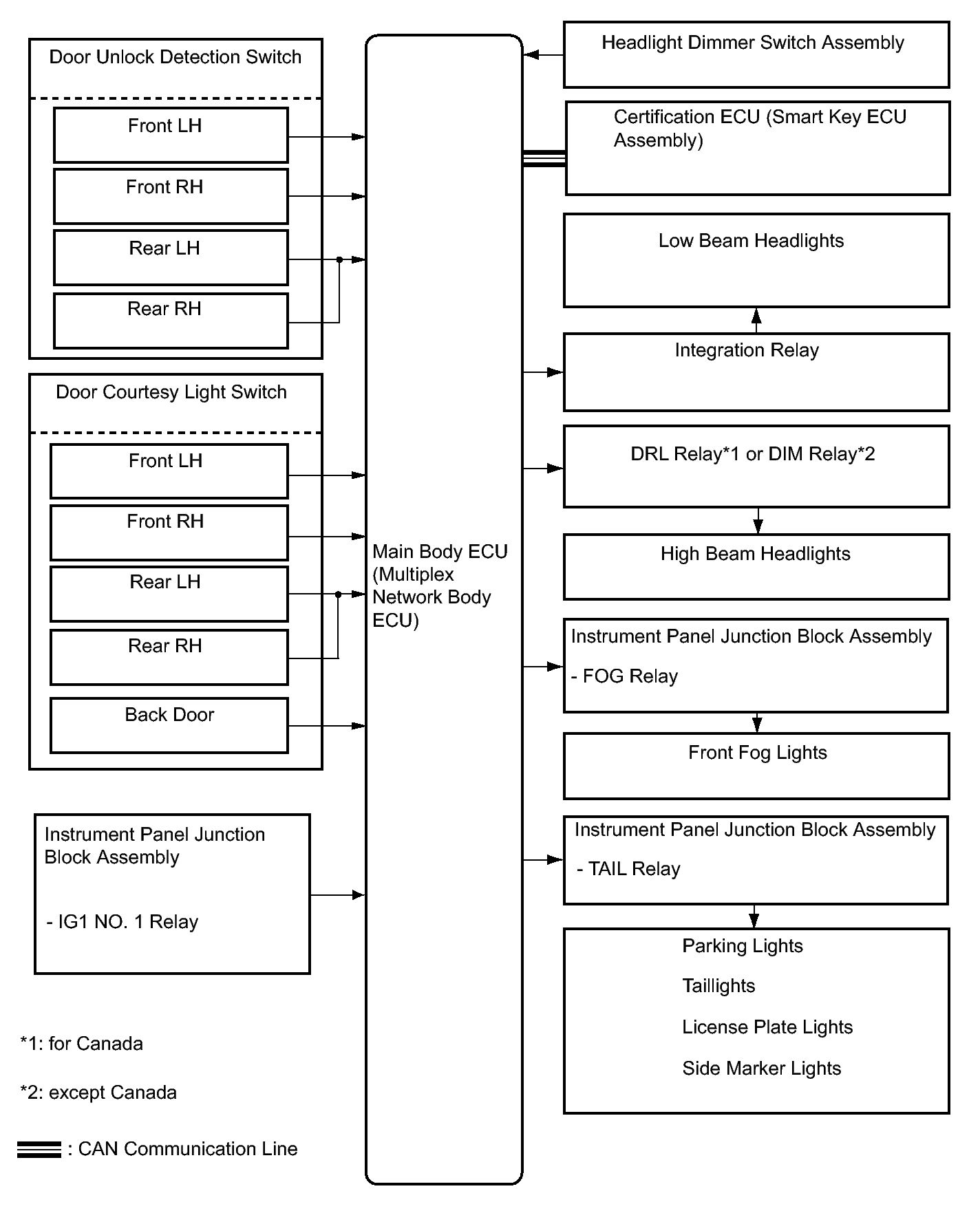

LIGHT AUTO TURN-OFF SYSTEM

Fig 2: Light Auto Turn-Off System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION TABLE

Transmitter	Receiver	Line	Data Name
Certification ECU (Smart Key ECU Assembly)	Main Body ECU (Multiplex Network Body ECU)	CAN	Wireless Door Lock Signal

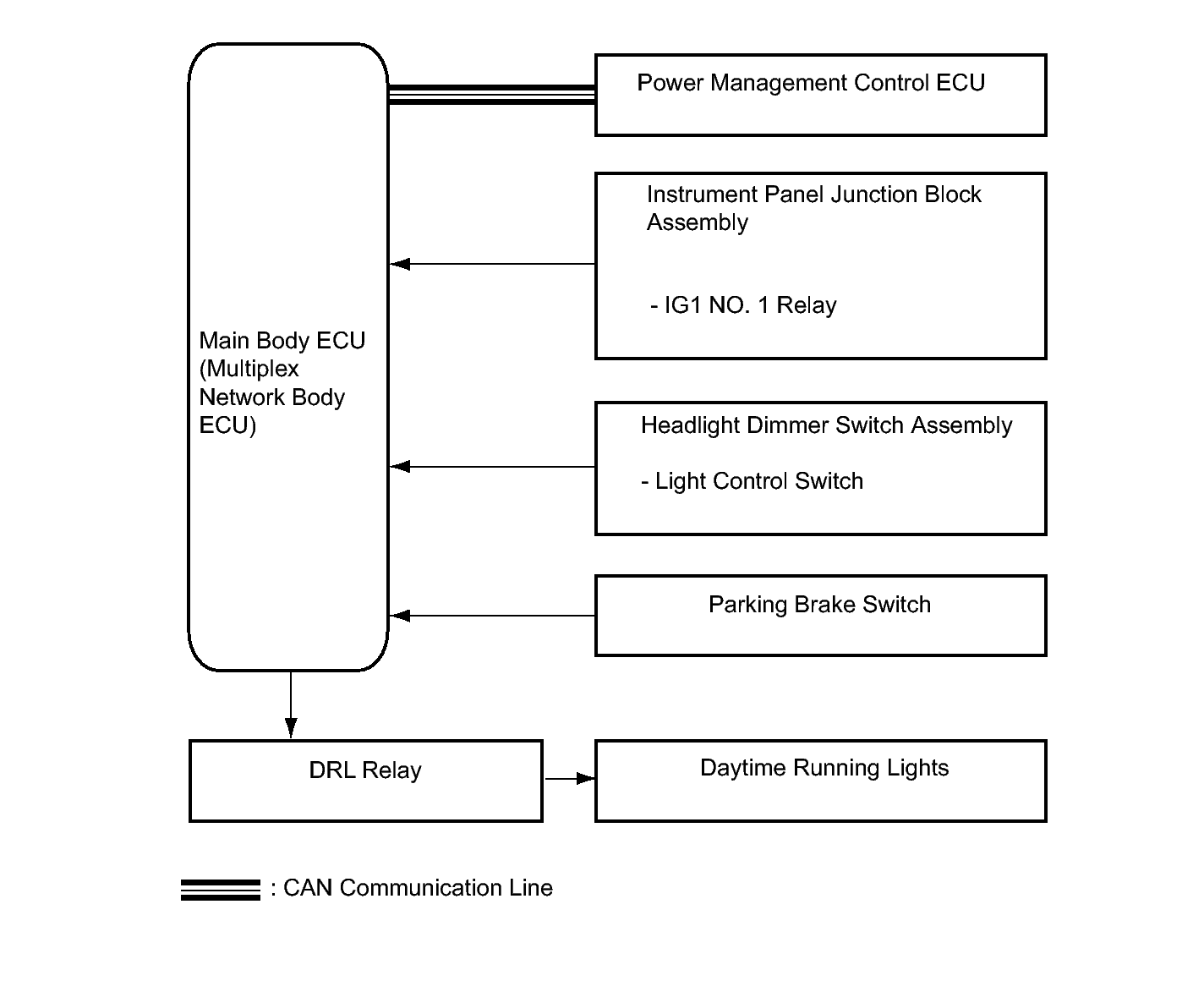

DAYTIME RUNNING LIGHT SYSTEM (for Canada)

Fig 3: Identifying Daytime Running Light System Communication Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION TABLE

Transmitter	Receiver	Line	Data Name
Power Management Control ECU	Main Body ECU (Multiplex Network Body ECU)	CAN	READY condition signal

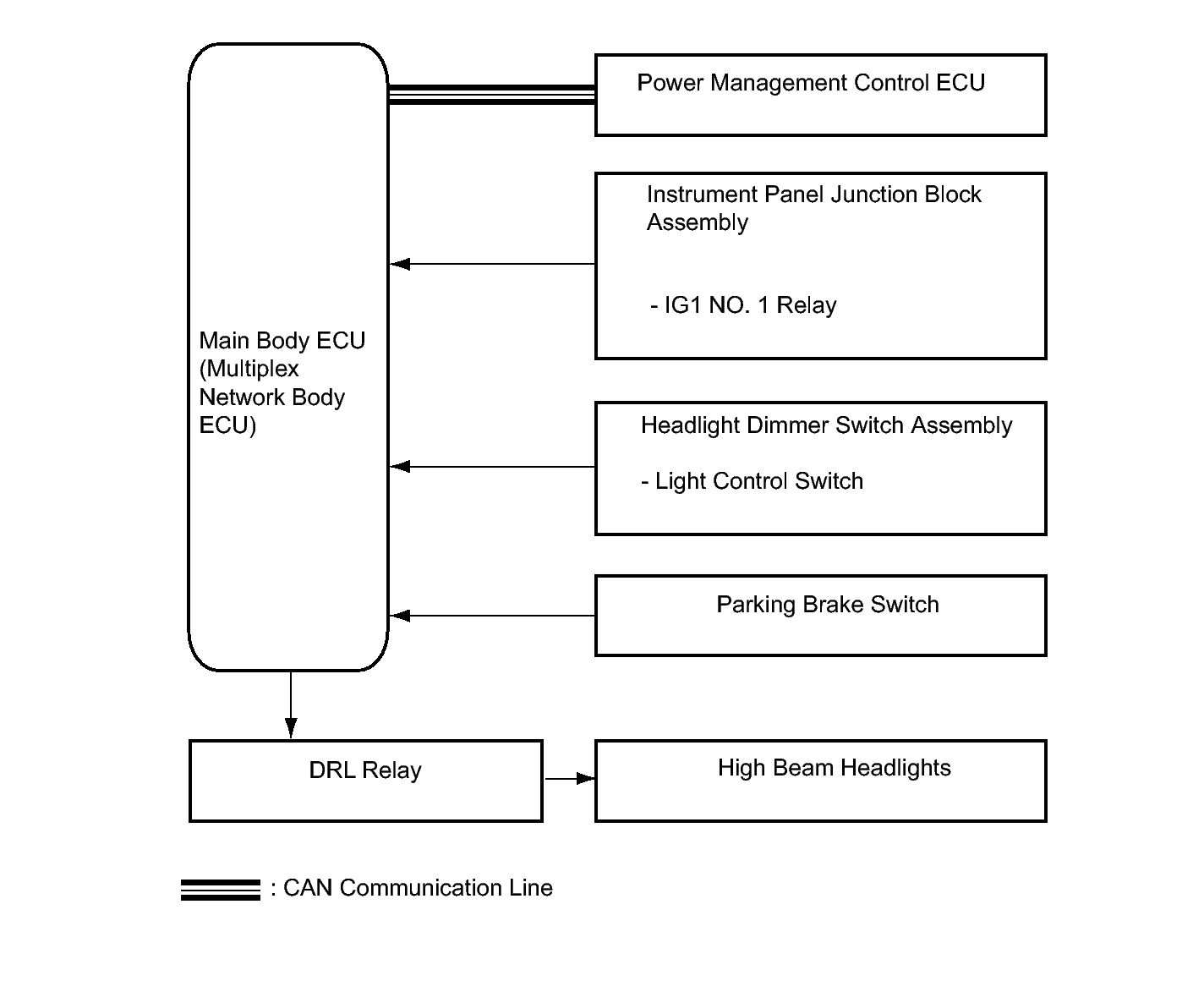

DAYTIME RUNNING LIGHT SYSTEM (except Canada)

Fig 4: Daytime Running Light System Communication Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION TABLE

Transmitter	Receiver	Line	Data Name
Power Management Control ECU	Main Body ECU (Multiplex Network Body ECU)	CAN	READY condition signal

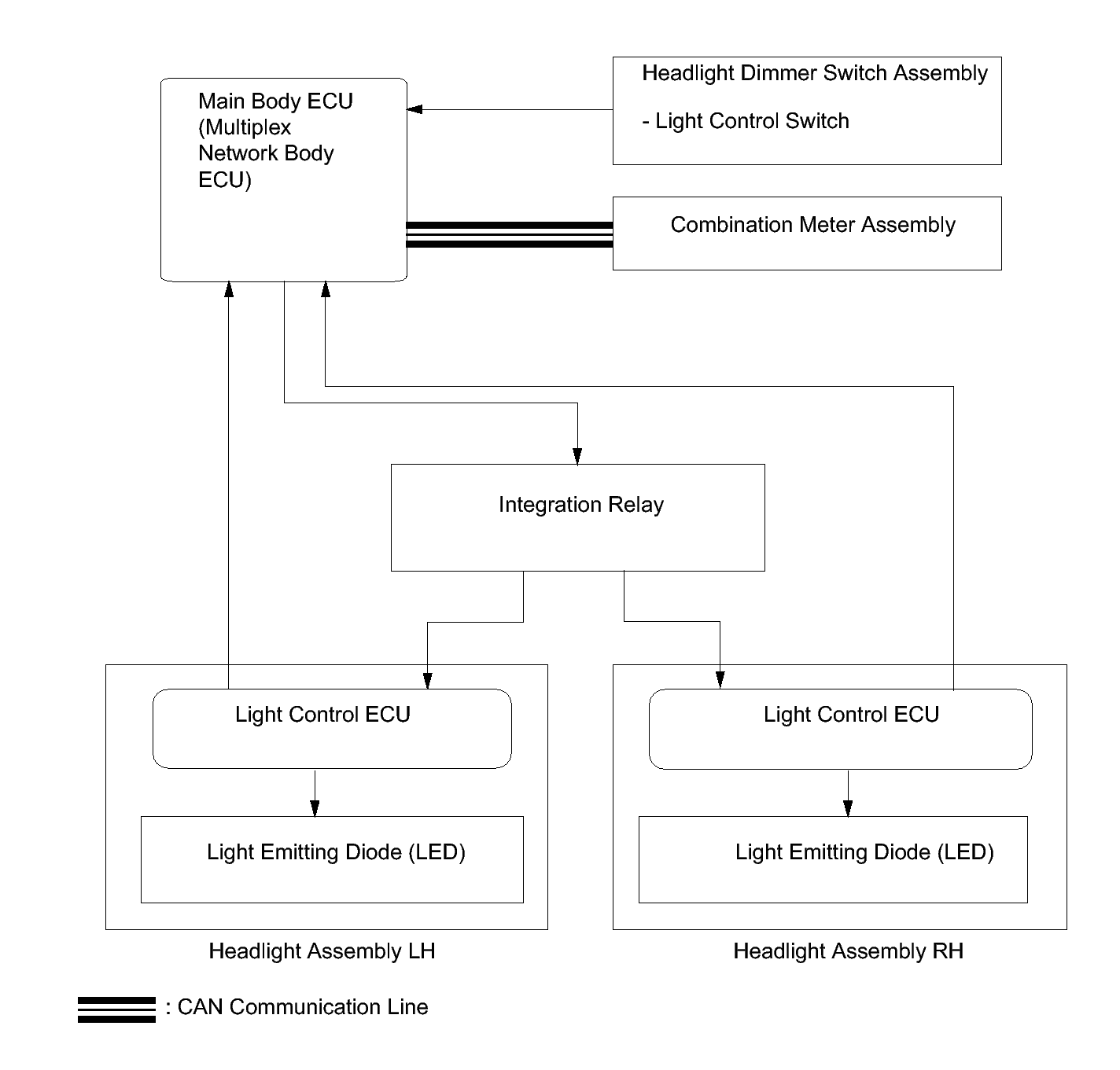

LED HEADLIGHT SYSTEM

Fig 5: LED Headlight System Diagram

COMMUNICATION TABLE

Transmitter	Receiver	Line	Data Name
Main Body ECU (Multiplex Network Body ECU)	Combination Meter Assembly	CAN	Lighting System State Signal
Main Body ECU (Multiplex Network Body ECU)	Combination Meter Assembly	CAN	Warning Indicator

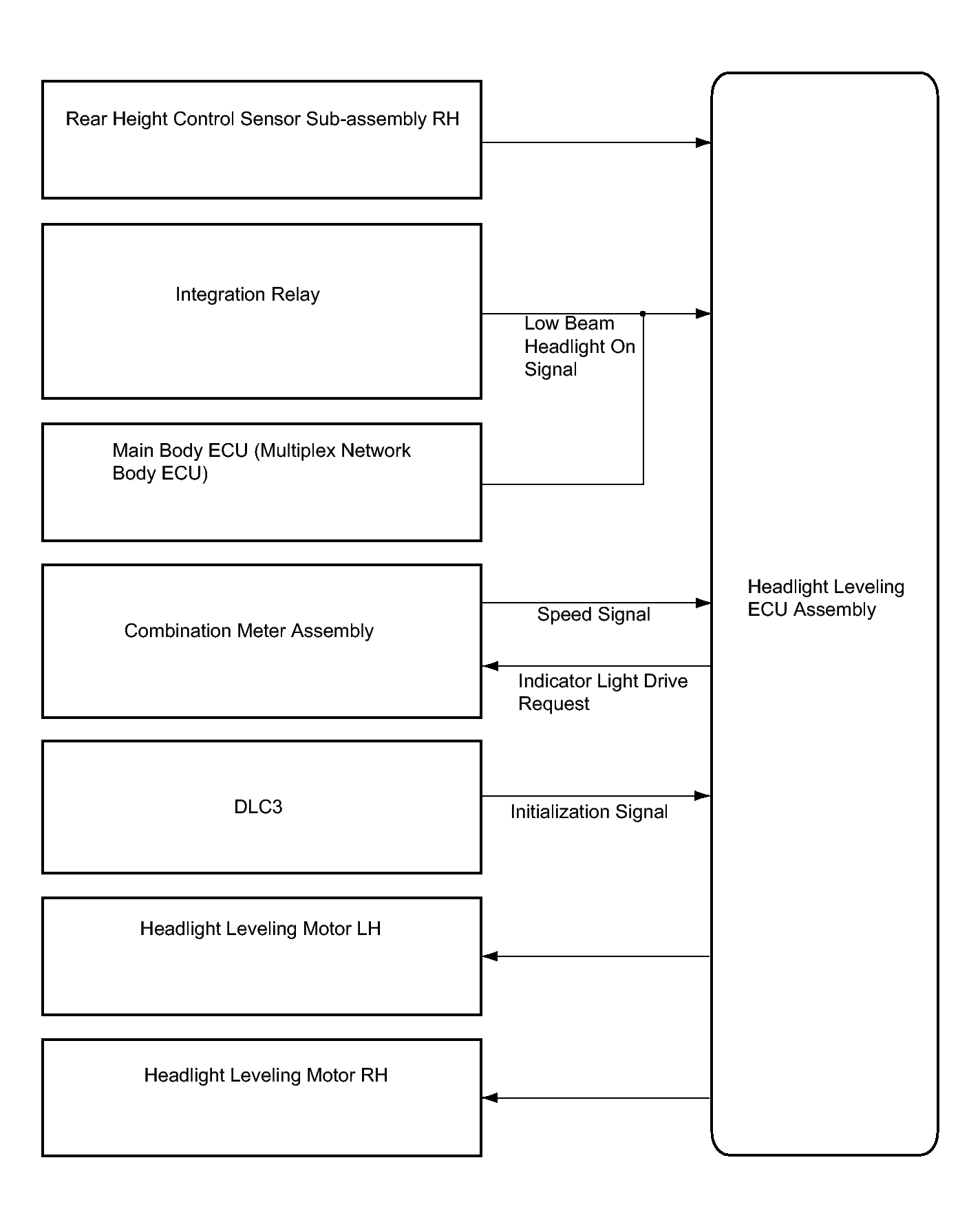

AUTOMATIC HEADLIGHT BEAM LEVEL CONTROL SYSTEM

Fig 6: Identifying Automatic Headlight Beam Level Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
