Installation [08/2014 - ]

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL LANE RECOGNITION CAMERA SENSOR ASSEMBLY

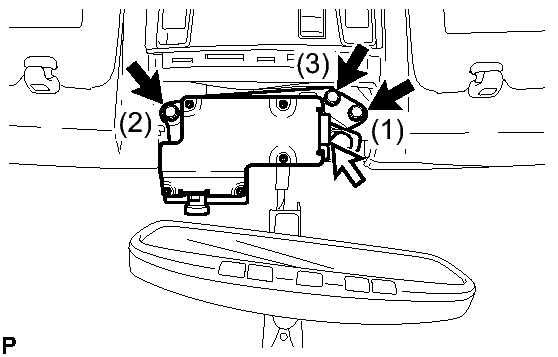

    Fig 1: Identifying Lane Recognition Camera Sensor Assembly Bolt Tightening Sequence
    GTY233691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Attach the lane recognition camera sensor assembly with the clip.
    2. Temporarily install the lane recognition camera sensor assembly with the 3 bolts.
    3. Tighten the 3 bolts in the order shown in the illustration to install the lane recognition camera sensor assembly.
    4. Connect the connector.
  2. INSTALL ROOF TOP MOULDING  . Refer to INSTALLATION [08/2014 - ] - Step 15
  3. INSTALL INNER REAR VIEW MIRROR COVER  . Refer to INSTALLATION [08/2014 - ] - Step 3
  4. ADJUST LANE RECOGNITION CAMERA SENSOR ASSEMBLY  See step  1
