Power Management Control ECU Communication Stop Mode [08/2014 - ]: Wiring Diagram

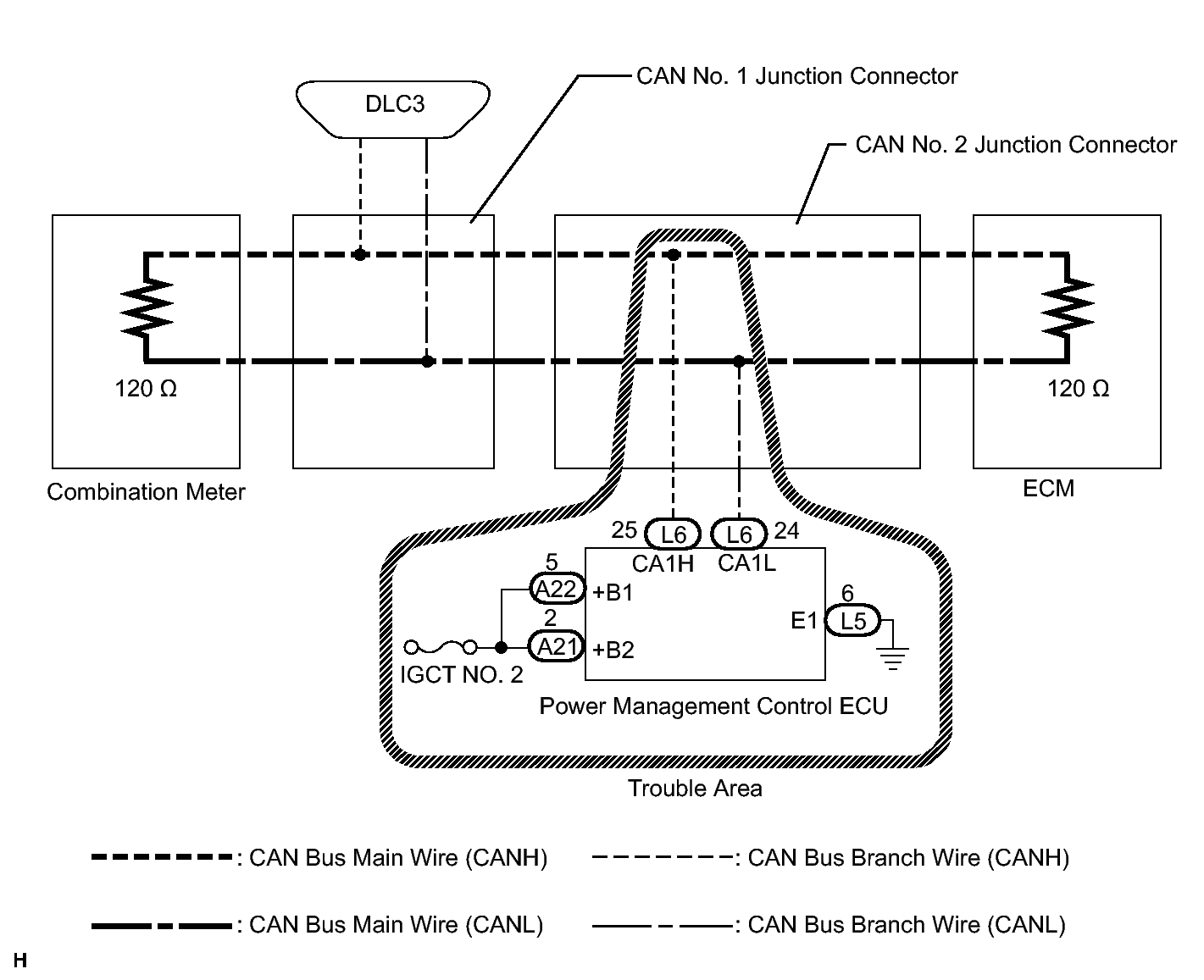

Fig 1: View Of Power Management Control ECU Wiring Diagram
GTY337439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
