REMOVE REAR CONSOLE BOX ASSEMBLY
Refer to REMOVAL [08/2014 - ]
REMOVE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
1. Disconnect the connector.

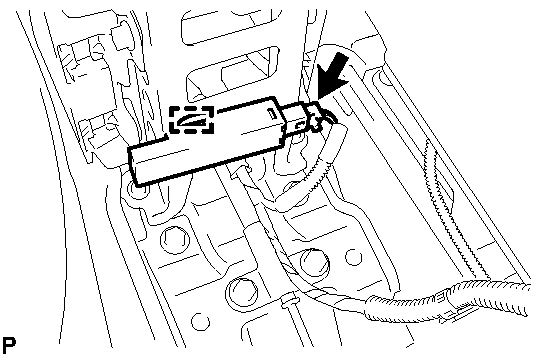

  Fig 1: Identifying Electrical Key Oscillator Connector And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the clamp and remove the No. 1 indoor electrical key antenna assembly.
  NOTE:
  Be careful when removing the indoor electrical key antenna assembly. If the antenna is dropped, replace it with a new one.
