Installation [08/2014 - ]

WARNING: This page is about a different variant/trim than selected.

INSTALL ENGINE HOOD COURTESY SWITCH (HOOD LOCK ASSEMBLY)

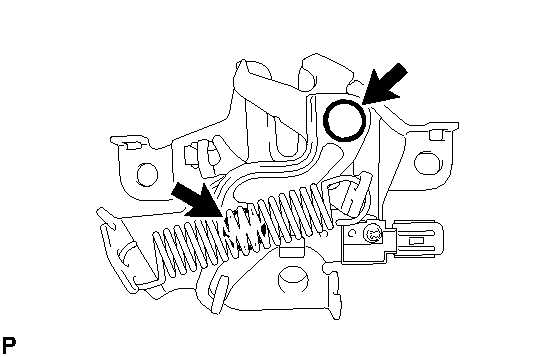

1. Apply MP grease to the sliding areas of the engine hood courtesy switch (hood lock assembly).

  Fig 1: Identifying Hood Lock Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the hood lock control cable assembly.
3. Install the engine hood courtesy switch (hood lock assembly) with the 3 bolts.
  Torque: 7.5 N*m (77 kgf*cm, 66 in.*lbf)
4. Connect the connector.
INSPECT HOOD SUB-ASSEMBLY . Refer to ON-VEHICLE INSPECTION [08/2014 - ] - Step 1
ADJUST HOOD SUB-ASSEMBLY
Refer to ADJUSTMENT [08/2014 - ]
