Installation [08/2014 - ]

  1. INSPECT STEERING COLUMN ASSEMBLY  See step  2
  2. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Align the matchmarks on the No. 2 steering intermediate shaft assembly and steering column assembly to install the No. 2 steering intermediate shaft assembly.

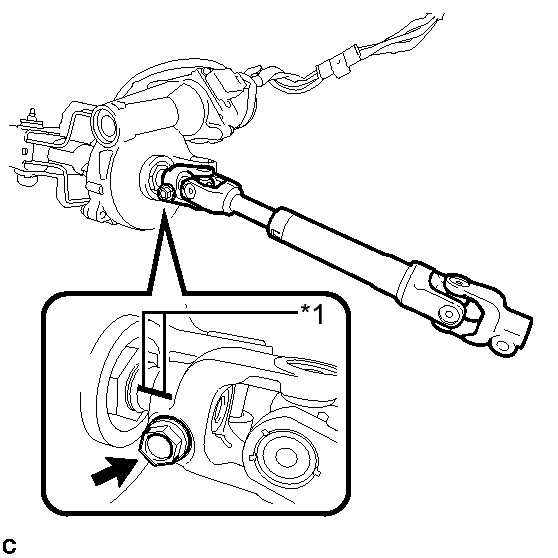

      Fig 1: Identifying No. 2 Steering Intermediate Shaft Assembly And Steering Column Assembly Matchmarks
      GTY224438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Matchmark
    2. Install the bolt.

      Torque: 35 N*m (359 kgf*cm, 26 ft.*lbf)

  3. INSTALL STEERING POST ASSEMBLY (for Brush Type Motor)
    1. Install the steering post assembly with the bolt and 2 nuts.
      Fig 2: Identifying Steering Post Assembly Bolt, And Nuts
      GTY212350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt

      Torque: 36 N*m (367 kgf*cm, 27 ft.*lbf)

      Nut

      Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

      NOTE:

      There are two different bolt sizes (12 mm (0.472 in.) or 14 mm (0.551 in.)) available.

    2. Connect the connectors and engage the wire harness clamps to the steering post assembly.
    3. Connect the 2 connectors to the power steering ECU assembly.

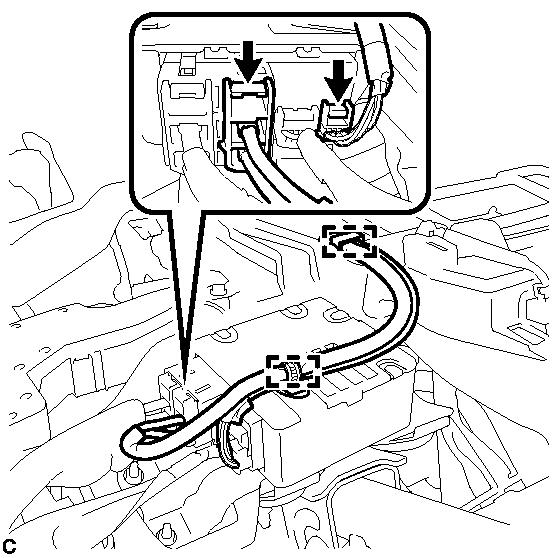

      Fig 3: Locating Wire Harness Clamps And Power Steering ECU Connectors
      GTY236580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Engage the 2 wire harness clamps.
  4. INSTALL STEERING POST ASSEMBLY (for Brushless Type Motor)
    1. Install the steering post assembly with the bolt and 2 nuts.

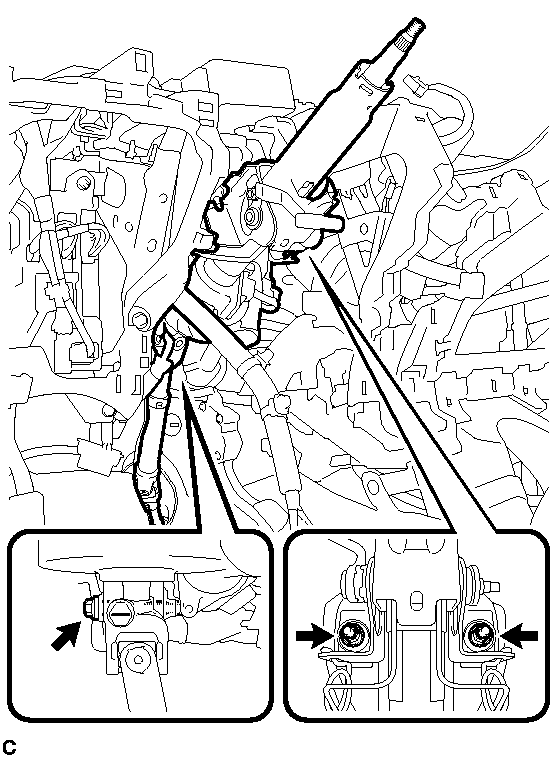

      Fig 4: Identifying Steering Post Assembly Bolt, And Nuts
      GTY212350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt

      Torque: 36 N*m (367 kgf*cm, 27 ft.*lbf)

      Nut

      Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

      NOTE:

      There are two different bolt sizes (12 mm (0.472 in.) or 14 mm (0.551 in.)) available.

    2. Connect the connectors and engage the wire harness clamps to the steering post assembly.
    3. Connect the connector to the power steering ECU assembly.

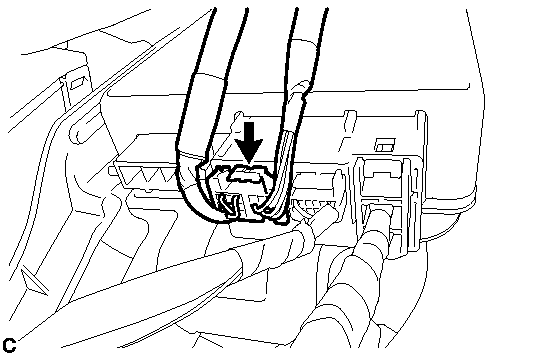

      Fig 5: Locating Power Steering ECU Connector
      GTY212543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the connector to the power steering ECU assembly.

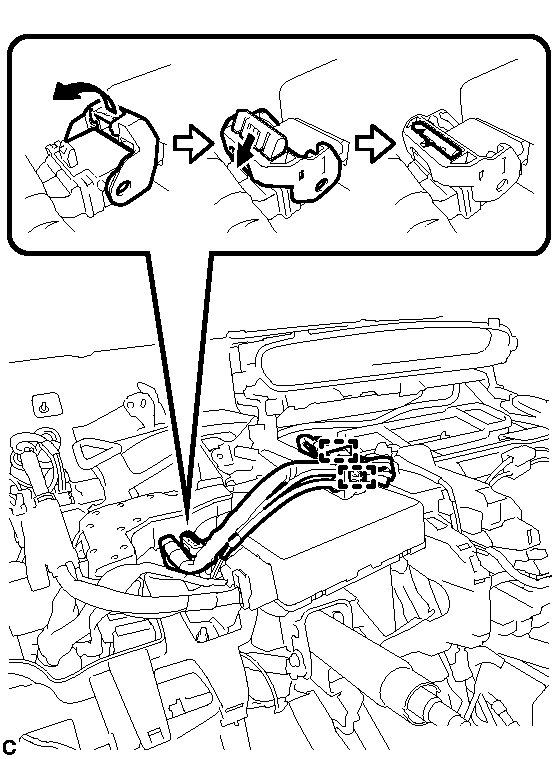

      Fig 6: Securing Lock Lever
      GTY221587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      As shown in the illustration, securely return the lock lever to its original position to connect the connector.

    5. Engage the 2 wire harness clamps.
  5. CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Align the matchmarks on the No. 2 steering intermediate shaft assembly and steering intermediate shaft to connect the No. 2 steering intermediate shaft assembly to the steering intermediate shaft.

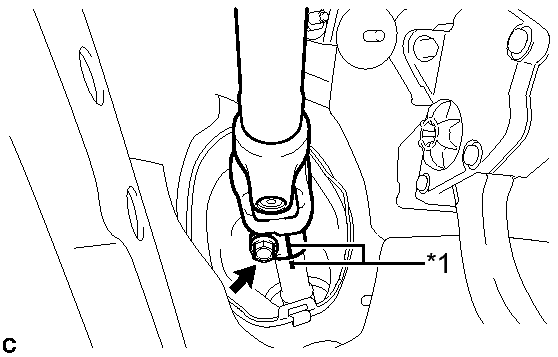

      Fig 7: Identifying No. 2 Steering Intermediate Shaft Assembly
      GTY220685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Matchmark
    2. Install the bolt.

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

  6. INSTALL COLUMN HOLE COVER SILENCER SHEET
    1. Install the column hole cover silencer sheet with the 2 clips.

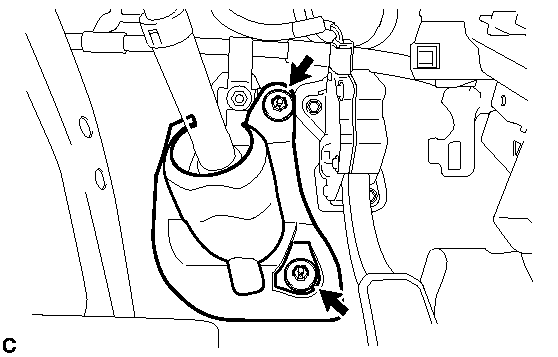

      Fig 8: View Of Clips And Column Hole Cover Silencer Sheet
      GTY218898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the floor carpet.
  7. INSTALL NO. 2 AIR DUCT SUB-ASSEMBLY
    1. Engage the 2 claws to install the No. 2 air duct sub-assembly.

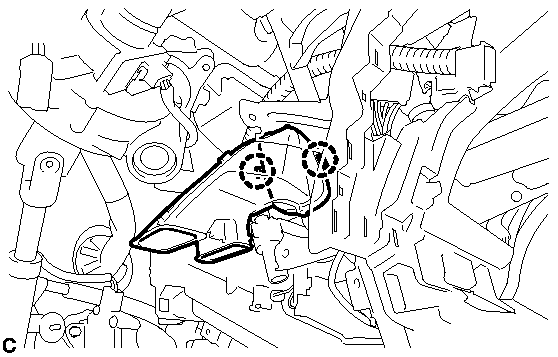

      Fig 9: Identifying No. 2 Air Duct Sub-Assembly Claws
      GTY213065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 1 HEATER TO REGISTER DUCT  . Refer to INSTALLATION [08/2014 - ] - Step 10
  9. INSTALL BRAKE PEDAL SUPPORT ASSEMBLY

    HINT:

    Refer to the instructions for Installation of the brake pedal support assembly. Refer to INSTALLATION [08/2014 - ] .

  10. INSTALL UPPER INSTRUMENT PANEL

    HINT:

    Refer to the instructions for Installation of the upper instrument panel. Refer to INSTALLATION [08/2014 - ] .

  11. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY

    HINT:

    Refer to the instructions for Installation of the driver side knee airbag assembly. Refer to INSTALLATION [08/2014 - ] .

  12. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  13. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
    1. Using pliers, expand the clamp.

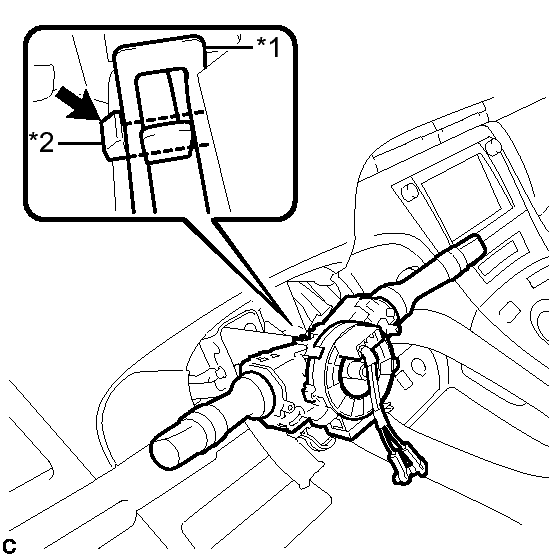

      Fig 10: Locating Clamp And Claw
      GTY222104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Clamp
      *2 Claw
    2. While holding the clamp expanded, install the turn signal switch assembly with spiral cable sub-assembly to the steering column assembly and engage the claw.
    3. Return the clamp to its original position.
    4. Connect the connectors to the turn signal switch assembly with spiral cable sub-assembly.
  14. INSTALL UPPER STEERING COLUMN COVER
    1. Engage the 2 claws and 2 pins to install the upper steering column cover.

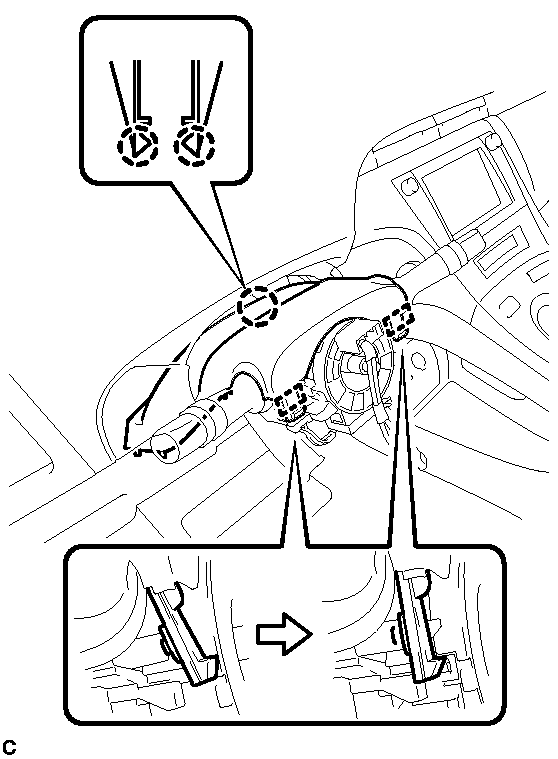

      Fig 11: Identifying Upper Steering Column Cover Claws And Pins
      GTY221581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL LOWER STEERING COLUMN COVER
    NOTE:

    If the lower steering column cover is installed in the incorrect order, it will not be possible to assemble the lower steering column cover.

    1. Engage the 2 claws to install the lower steering column cover.

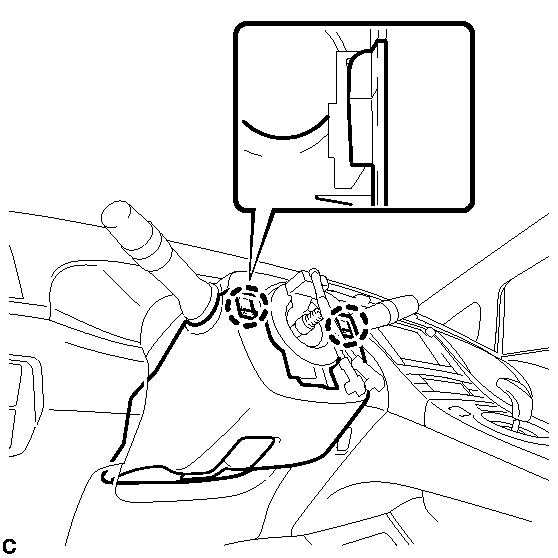

      Fig 12: View Of Lower Steering Column Cover Claws
      GTY221577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 claws.

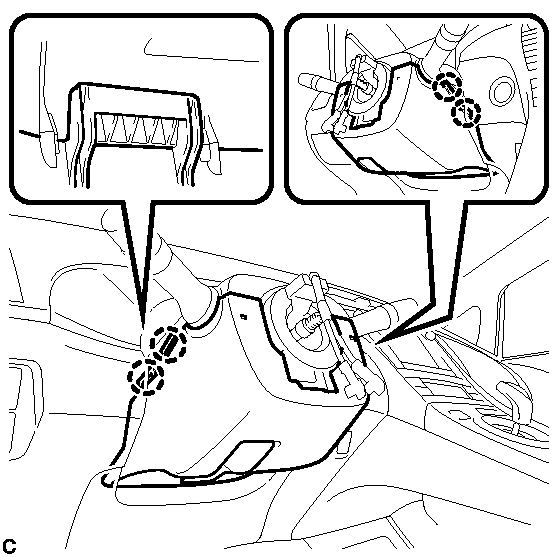

      Fig 13: Identifying Steering Column Cover Claws
      GTY217294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 2 claws.

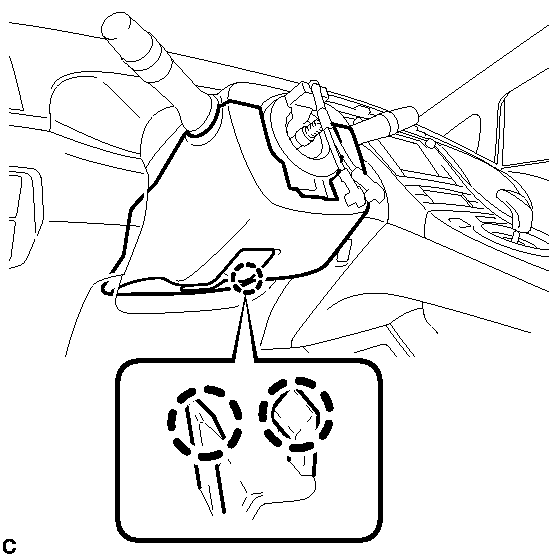

      Fig 14: Identifying Lower Steering Column Cover Claws
      GTY221578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Press the area around the claws to engage them.

  16. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  17. ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY  . Refer to INSTALLATION [08/2014 - ] - Step 5
  18. INSTALL STEERING WHEEL ASSEMBLY  See step  8
  19. INSTALL STEERING PAD

    HINT:

    Refer to the instructions for Installation of the steering pad. Refer to INSTALLATION [08/2014 - ] .

  20. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  21. CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL
    NOTE:

    Connect the cable to the negative (-) auxiliary battery terminal with the front wheels facing straight ahead.

  22. INSPECT STEERING PAD  . Refer to INSTALLATION [08/2014 - ] - Step 8
  23. TORQUE SENSOR ZERO POINT CALIBRATION (for Brush Type Motor)
    1. Perform the torque sensor zero point calibration. Refer to CALIBRATION [08/2014 - ] .
  24. ROTATION ANGLE SENSOR INITIALIZATION AND TORQUE SENSOR ZERO POINT CALIBRATION (for Brushless Type Motor)
    1. Clear the rotation angle sensor calibration value, initialize the rotation angle sensor, and calibrate the torque sensor zero point. Refer to CALIBRATION [08/2014 - ] .
  25. INSPECT SRS WARNING LIGHT
    1. Inspect the SRS warning light. Refer to DIAGNOSIS SYSTEM [08/2014 - ] .
